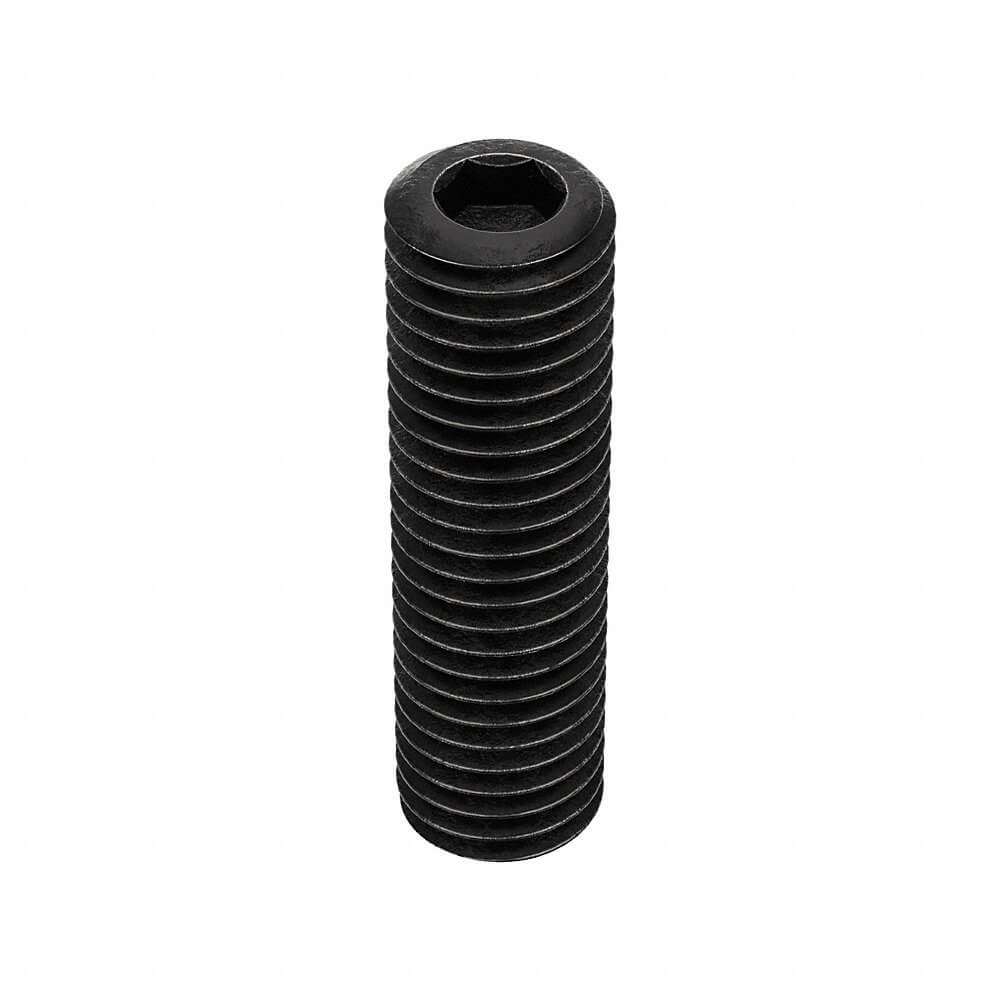

GRAINGER M07840.120.0045 Set Screw, M12x1.75 Thread Size, Pln, 45 mm Lg., 6 mm Drive Size, Cup, Hex Socket
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€151.05 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Set Screw |
| Decimal Equivalent | 0.156" |
| Dimensional Standards | Din 916 |
| Display Qty | 50 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C45-C53 |
| Head Type | Headless |
| Length | 45 mm |
| Material | Steel |
| Maximum Temperature | 302°F |
| Minimum Temperature | -58°F |
| Overall Length | 45 mm |
| Point Material | Steel |
| Point Type | Cup |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Thread Size | M12 x 1.75 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.32 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 16.26 |
| Ship width (cm) | 7.37 |
Product Variants
| Product | Model | Thread Size | Drive Type | Drive Size | Decimal Equivalent | Thread Type | Head Type | Display Qty | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07840.020.0002 | M2 x 0.4 | Socket | 0.9 mm | - | Coarse | Headless | 100 | - | 100 | €29.71 | |
 |
M07840.020.0012 | M2 x 0.4 | Socket | 0.9 mm | - | Coarse | Headless | 100 | - | 100 | €33.73 | |
|
M07840.030.0030 | M3 x 0.5 | Socket | 1.5 mm | - | Coarse | Headless | 100 | - | 100 | €77.48 | |
|
M07840.040.0035 | M4 x 0.7 | Socket | 2 mm | - | Coarse | Headless | 100 | - | 100 | €63.83 | |
 |
M07840.050.0004 | M5 x 0.8 | Socket | 2.5 mm | - | Coarse | Headless | 100 | - | 100 | €13.80 | |
|
M07840.060.0060 | M6 x 1 | Hex Socket | 3 mm | - | - | - | - | - | 100 | €142.32 | |
|
M07840.060.0070 | M6 x 1 | Socket | 3 mm | - | Coarse | Headless | 100 | - | 100 | €141.41 |
