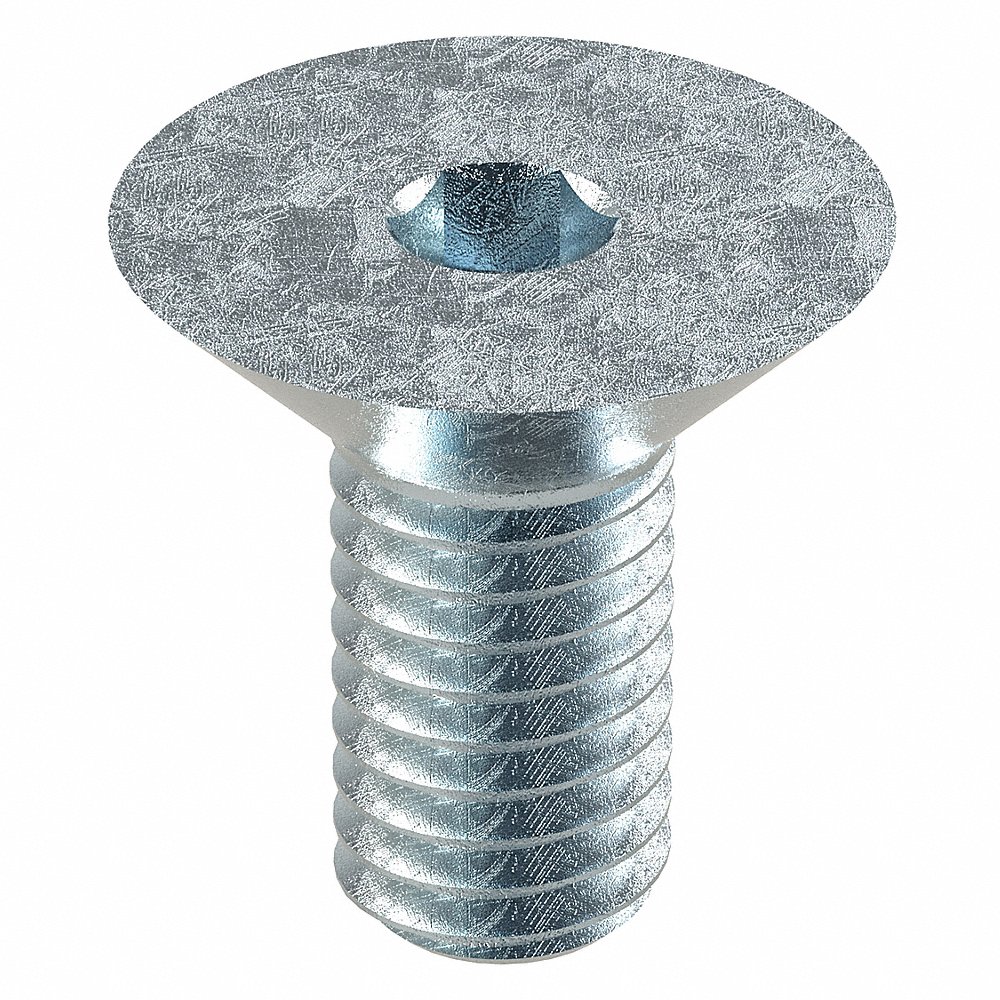

GRAINGER M07470.060.0010 Socket Flat Head Cap Screw, M6x1 Thread Size, Flat, 10 mm Lg., 3.72 mm Head Ht.
Item: AH7UZJModel: M07470.060.0010Cross Ref: 38DF68
7 In Stock
Ships within 2 days via
10.00% off
€27.15 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Flat Head Cap Screw |
| Class | Class 8.8 |
| Combined Material & Grade | Class 8 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | Iso 10642 |
| Display Qty | 100 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 13.44 mm |
| Head Height | 3.72 mm |
| Head Type | Flat |
| Length | 10 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 10 mm |
| Screw Length | 10 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Size | M6 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 11.43 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07470.030.0006 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 6 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €9.41 | |
 |
M07470.030.0008 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 8 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €9.66 | |
 |
M07470.030.0010 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 10 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €11.95 | |
 |
M07470.030.0012 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 12 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €10.56 | |
 |
M07470.030.0016 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 16 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €14.26 | |
 |
M07470.030.0020 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 20 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €14.91 | |
 |
M07470.030.0025 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 25 mm | 800 N/sq. mm | Rockwell C22-C34 | 100 | €17.38 |
