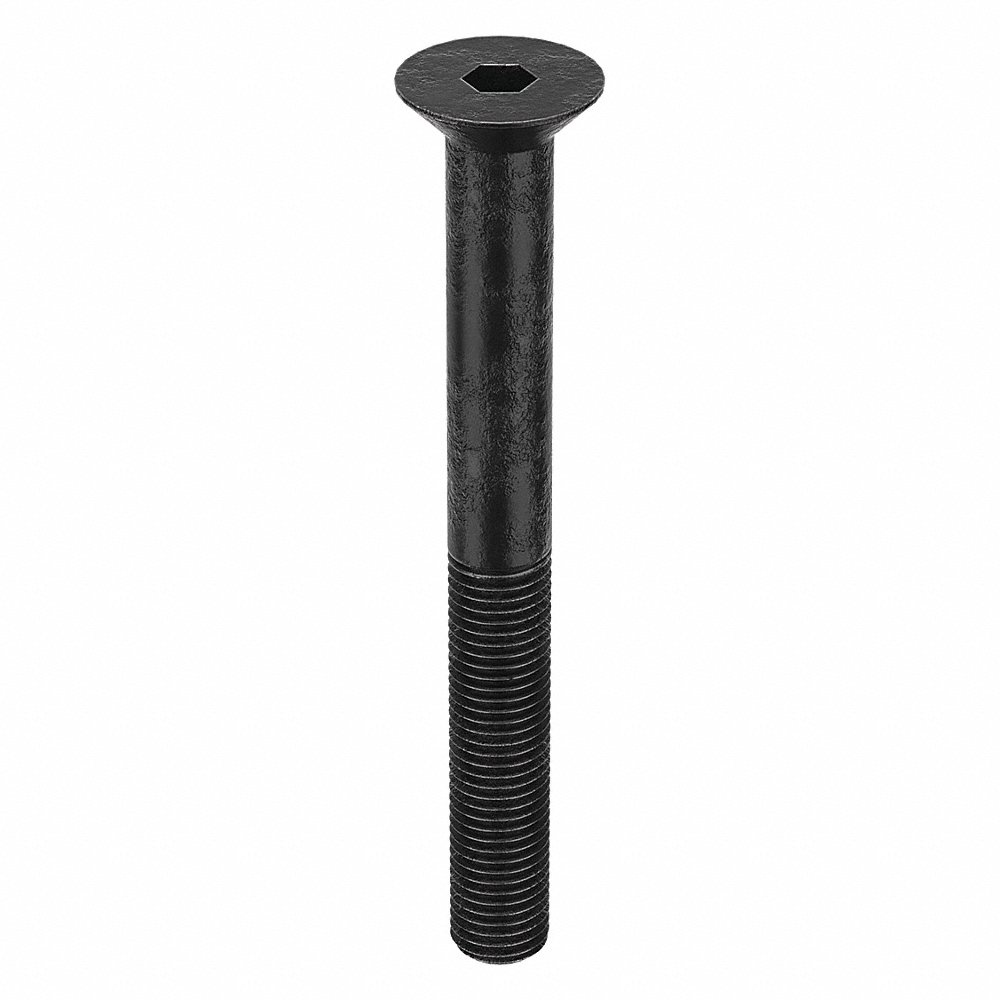

GRAINGER M07400.200.0180 Socket Flat Head Cap Screw, M20x2.5 Thread Size, Flat, 180mm Lg., 40.32mm Head Dia.
Item: AH7UXJModel: M07400.200.0180Cross Ref: 38DF22
7 In Stock
Ships within 2 days via
10.00% off
€82.28 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Flat Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | Iso 10642 |
| Display Qty | 5 |
| Drive Size | 12 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 40.32 mm |
| Head Height | 10.16 mm |
| Head Type | Flat |
| Length | 180 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1000 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 90 mm |
| Screw Length | 180 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 90 mm |
| Thread Size | M20 x 2.5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07410.050.0250 | 1/2"-13 | Partially Threaded | 5/16" | 15/16" | 0.251" | 1 1/2" | 145000 psi | Rockwell C37-C44 | 10 | €20.89 | |
 |
M07400.040.0006 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 6 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €9.56 | |
 |
M07400.040.0008 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 8 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €10.30 | |
 |
M07400.040.0010 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 10 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €5.64 | |
 |
M07400.040.0012 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 12 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €12.53 | |
 |
M07400.040.0016 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 16 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €10.29 | |
 |
M07400.040.0020 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 20 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €11.55 |
