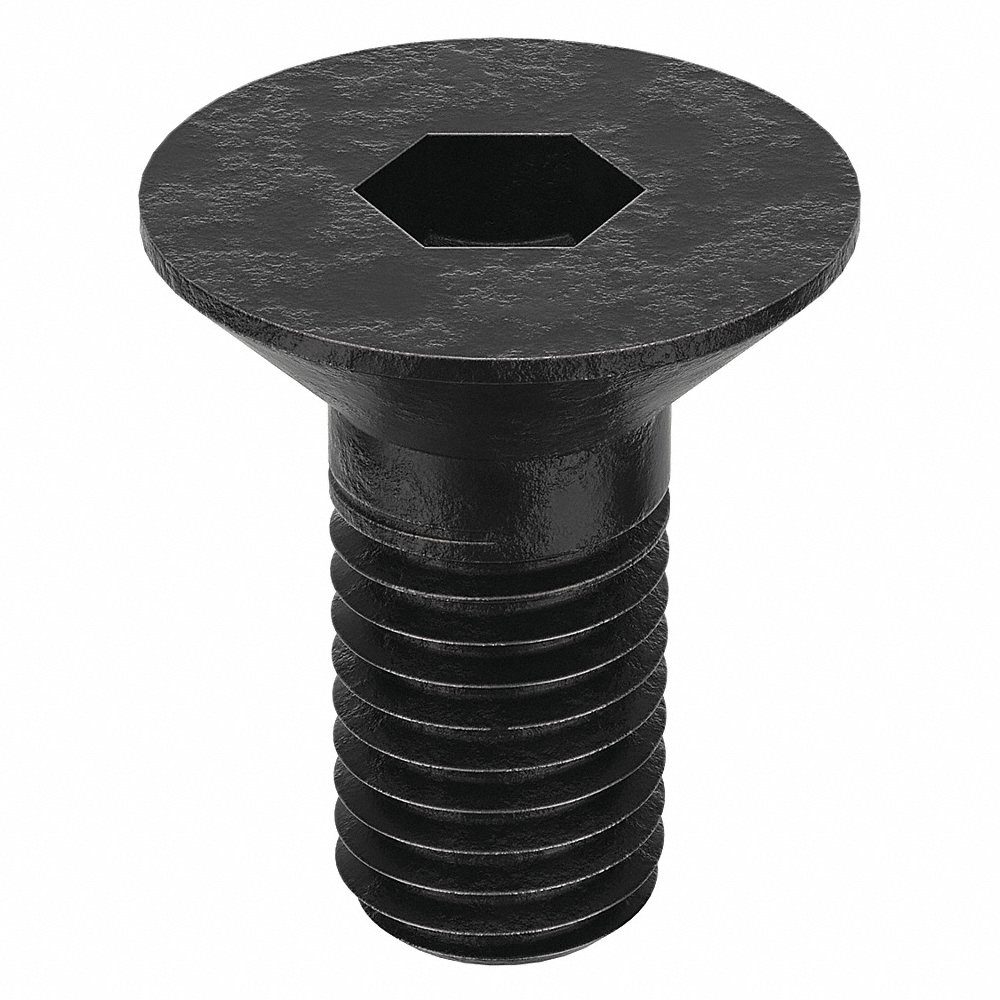

GRAINGER M07400.140.0025 Socket Flat Head Cap Screw, M14x2 Thread Size, Flat, 25 mm Lg., 8.4 mm Head Ht.
Item: AH7UWGModel: M07400.140.0025Cross Ref: 38DE96
7 In Stock
Ships within 2 days via
10.00% off
€20.68 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Flat Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | Iso 10642 |
| Display Qty | 10 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 30.8 mm |
| Head Height | 8.4 mm |
| Head Type | Flat |
| Length | 25 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1000 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 25 mm |
| Screw Length | 25 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Size | M14 x 2 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
