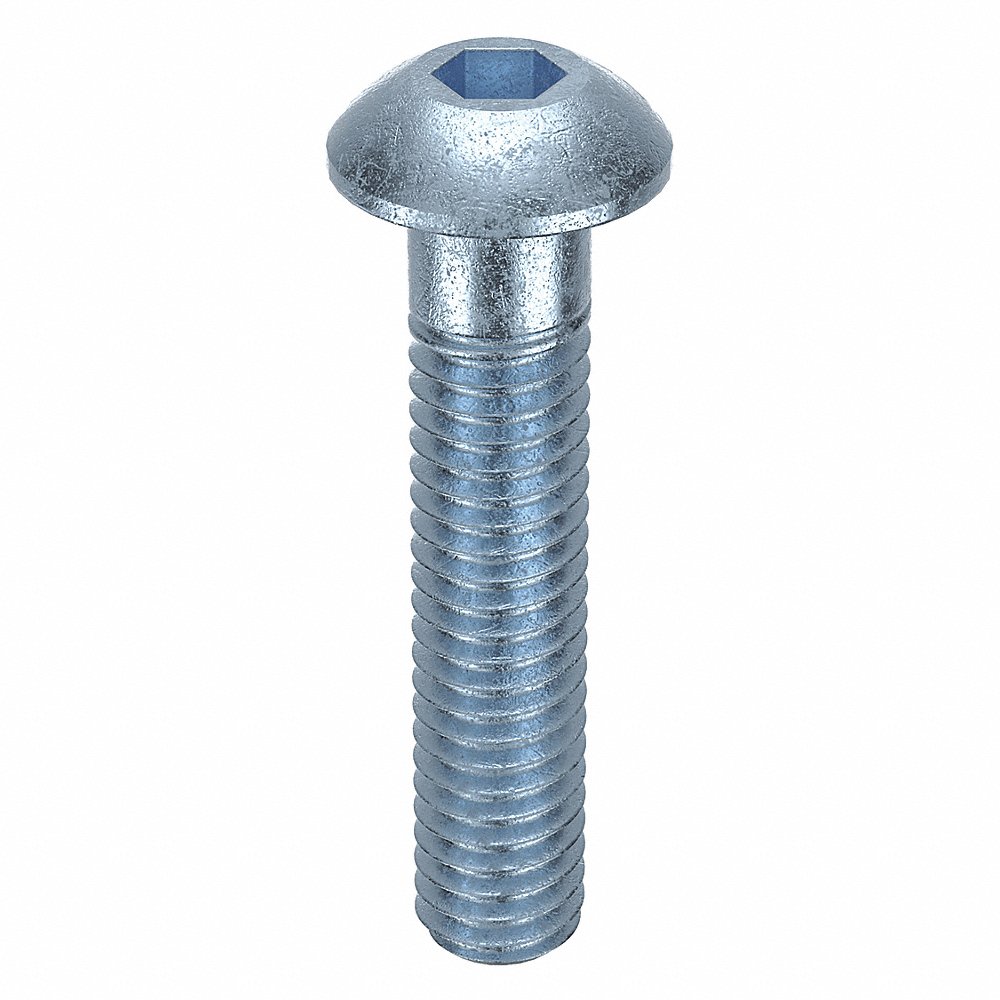

GRAINGER M07151.040.0020 Socket Head Cap Screw, M4x0.7 Thread Size, Button, 20 mm Lg., 2.2 mm Head Ht.
Item: AH7UGHModel: M07151.040.0020Cross Ref: 38DA95
7 In Stock
Ships within 2 days via
10.00% off
€13.50 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 100 |
| Drive Size | 3 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 7.6 mm |
| Head Height | 2.2 mm |
| Head Type | Button |
| Length | 20 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 16 mm |
| Screw Length | 20 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Size | M4 x 0.7 |
| Thread Style | Fully Threaded |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
