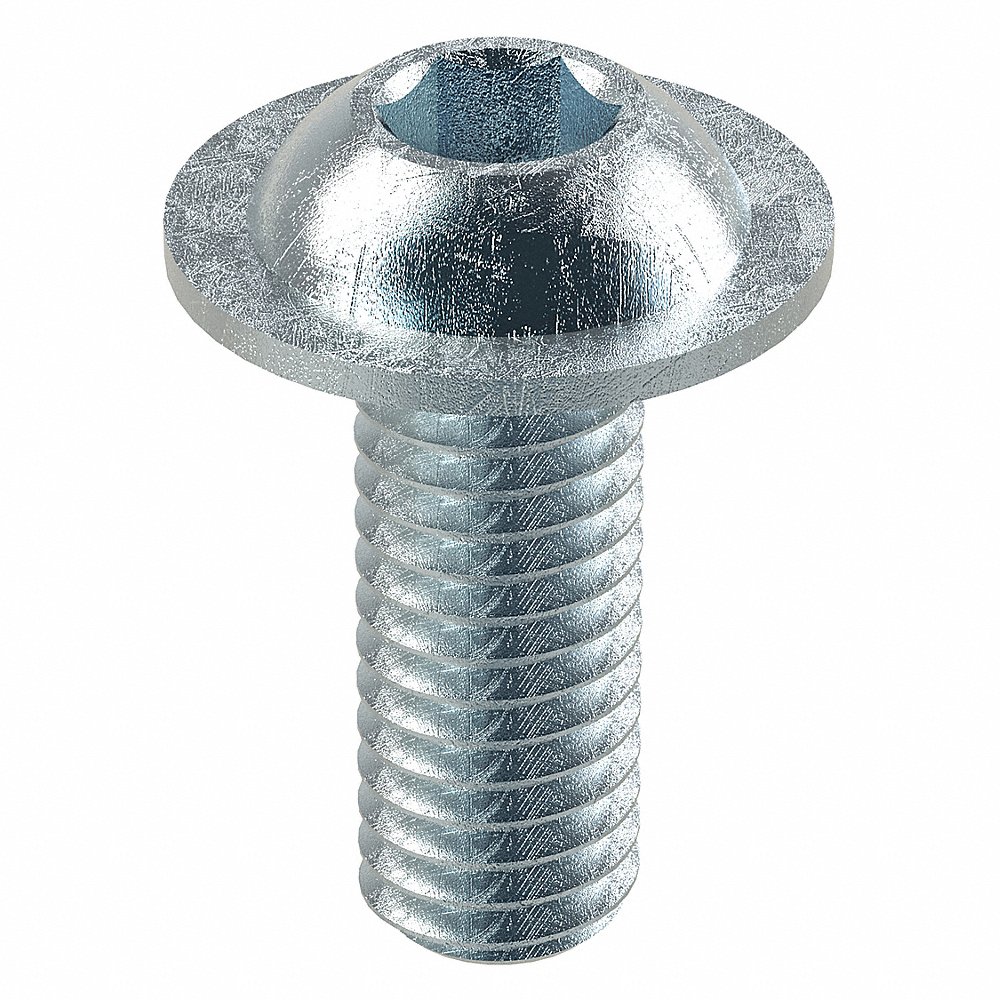

GRAINGER M07141.060.0016 Socket Head Cap Screw, M6x1 Thread Size, Button Flanged, 16mm Lg., 10.5mm Head Dia.
Item: AH7UAUModel: M07141.060.0016Cross Ref: 38CZ68
7 In Stock
Ships within 2 days via
5.00% off
€16.81 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Class | Class 10.9 |
| Color | Silver |
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-2 |
| Display Qty | 100 |
| Drive Size | 4 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 10.5 mm |
| Head Height | 3.3 mm |
| Head Type | Button Flanged |
| Length | 16 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Min. Thread Length | 16 mm |
| Screw Length | 16 mm |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 6G |
| Thread Length | 16 mm |
| Thread Size | M6 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.13 |
Product Details:
- Vented Hole Size : Not Vented
Product Variants
| Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Display Qty | Drive Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M07141.030.0006 | 5.7 mm | 2 mm | 1.65 mm | Fully Threaded | 6 mm | 6 mm | 100 | Socket | 100 | €11.84 | |
| M07141.030.0008 | 5.7 mm | 2 mm | 1.65 mm | Fully Threaded | 8 mm | 8 mm | 100 | Socket | 100 | €10.76 | |
| M07141.030.0010 | 5.7 mm | 2 mm | 1.65 mm | Fully Threaded | 10 mm | 10 mm | 100 | Socket | 100 | €10.30 | |
| M07141.030.0012 | 5.7 mm | 2 mm | 1.65 mm | Fully Threaded | 12 mm | 12 mm | 100 | Socket | 100 | €10.00 | |
| M07141.030.0016 | 5.7 mm | 2 mm | 1.65 mm | Partially Threaded | 12 mm | 12 mm | 100 | Socket | 100 | €9.80 | |
| M07141.030.0030 | 5.7 mm | 2 mm | 1.65 mm | Partially Threaded | 12 mm | 12 mm | 100 | Socket | 100 | €27.35 | |
| M07141.040.0006 | 7.6 mm | 2.5 mm | 2.2 mm | Fully Threaded | 6 mm | 6 mm | 100 | Socket | 100 | €12.73 |
