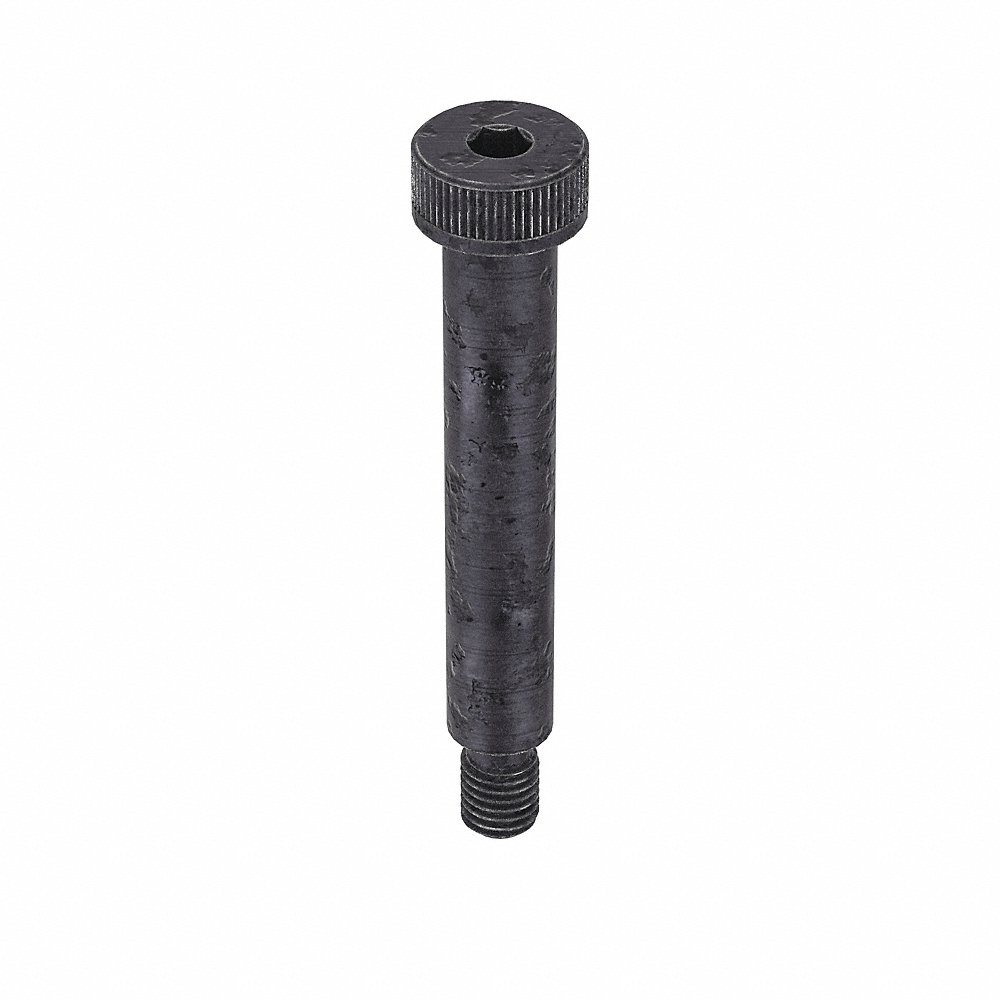

GRAINGER M07111.160.0090 Shoulder Screw, M12x1.75 Thread Size, 90mm Shoulder Lg., 11mm Head Ht., Std, Alloy Steel
Item: AG2KLAModel: M07111.160.0090Cross Ref: 31KG16
7 In Stock
Ships within 2 days via
5.00% off
€44.16 /pkg. of 2
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379 |
| Display Qty | 2 |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell C32-C43 |
| Head Dia. | 24 mm |
| Head Height | 11 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Alloy, Steel |
| Min. Tensile Strength | 140000 psi |
| Precision Screw | No |
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 16 mm |
| Shoulder Dia. Tolerance | -0.036 mm to 0 mm |
| Shoulder Length | 90 mm |
| Shoulder Length Tolerance | 0 mm to 0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 140000 psi |
| Thread Length | 18 mm |
| Thread Size | M12 x 1.75 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 5.08 |
| HS code | 7318158045 |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07111.025.0025 | 3/8" | 1/4" | 1/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 25 | €23.56 | |
 |
U07111.025.0062 | 3/8" | 1/4" | 5/8" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 25 | €26.33 | |
 |
U07111.025.0087 | 3/8" | 1/4" | 7/8" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €9.47 | |
 |
U07111.025.0175 | 3/8" | 1/4" | 1 3/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €22.77 | |
 |
U07111.025.0200 | 3/8" | 1/4" | 2" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €24.32 | |
 |
U07111.025.0225 | 3/8" | 1/4" | 2 1/4" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 10 | €18.45 | |
 |
U07111.025.0250 | 3/8" | 1/4" | 2 1/2" | 3/8" | 3/16" | Standard Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 10 | €21.52 |
