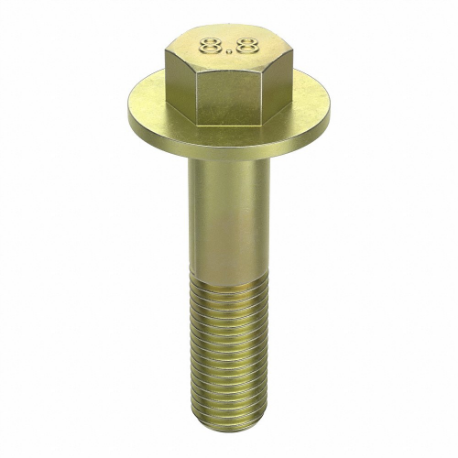

GRAINGER M01256.200.0050 Flange Bolt, M20x2.5 Thread Size, Steel, Yellow Zn Plated, Class 8.8, Coarse
Item: CP9LXMModel: M01256.200.0050Cross Ref: 38CP87
7 In Stock
Ships within 2 days via
10.00% off
€161.64 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Bolt |
| Class | Class 8.8 |
| Finish | Yellow Zinc Plated |
| Flange Dia. | 43 mm |
| Flange Type | Standard |
| Hardness | Rockwell HRC23 |
| Head Height | 17.1 mm |
| Head Style | Hex Flange |
| Head Width | 27 mm |
| Length | 50 mm |
| Material | Steel |
| Min. Thread Length | 46 mm |
| Screw Size | M20 |
| System Of Measurement | Metric |
| Tensile Strength | 116030 psi |
| Thread Direction | Right Hand |
| Thread Size | M20 x 2.5 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.94 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Finish | Thread Style | Head Width | Tensile Strength | Min. Thread Length | Flange Dia. | Head Height | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01258.080.0016 | M8 x 1.25 | Zinc Plated | Fully Threaded | 13 mm | 116030 psi | 16 mm | 18 mm | 8.1 mm | 100 | €52.17 | |
 |
M01258.060.0020 | M6 x 1 | Zinc Plated | Partially Threaded | 10 mm | 116030 psi | 18 mm | 14 mm | 6.6 mm | 100 | €34.62 | |
 |
M04132.100.0020 | M10 x 1.5 | Black Oxide | Fully Threaded | 15 mm | - | 20 mm | 22 mm | 9.2 mm | 50 | €64.02 | |
|
M04132.080.0020 | M8 x 1.25 | Black Oxide | Fully Threaded | 13 mm | 145038 psi | 20 mm | 18 mm | 8.1 mm | 100 | €91.47 | |
 |
M04132.060.0020 | M6 x 1 | Black Oxide | Partially Threaded | 10 mm | 145038 psi | 18 mm | 14 mm | 6.6 mm | 100 | €33.53 | |
|
M04132.120.0025 | M12 x 1.75 | Black Oxide | Fully Threaded | 16 mm | 145038 psi | 25 mm | 27 mm | 11.5 mm | 50 | €79.76 | |
|
M04132.080.0025 | M8 x 1.25 | Black Oxide | Partially Threaded | 13 mm | 145038 psi | 22 mm | 18 mm | 8.1 mm | 100 | €94.65 |
