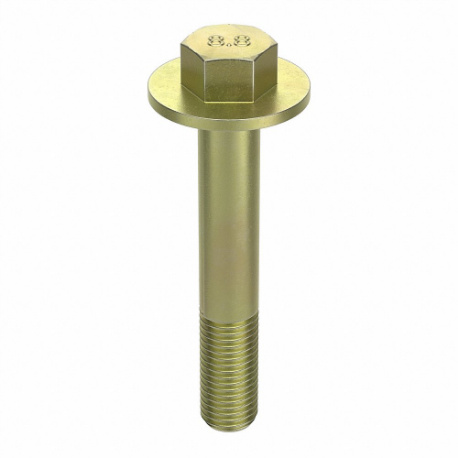

GRAINGER M01256.160.0080 Flange Bolt, M16x2 Thread Size, Steel, Yellow Zn Plated, Class 8.8, HT, 80mm Fastener Lg.
Item: CP9MBTModel: M01256.160.0080Cross Ref: 38CP85
7 In Stock
Ships within 2 days via
5.00% off
€173.53 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Bolt |
| Class | Class 8.8 |
| Finish | Yellow Zinc Plated |
| Flange Dia. | 35 mm |
| Flange Type | Standard |
| Hardness | Rockwell HRC22 |
| Head Height | 14.4 mm |
| Head Style | Hex Flange |
| Head Width | 21 mm |
| Length | 80 mm |
| Material | Steel |
| Min. Thread Length | 38 mm |
| Screw Size | M16 |
| System Of Measurement | Metric |
| Tensile Strength | 116030 psi |
| Thread Direction | Right Hand |
| Thread Size | M16 x 2 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 4.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Material | Finish | Thread Style | Thread Type | Head Width | Tensile Strength | Min. Thread Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01258.080.0016 | M8 x 1.25 | Steel | Zinc Plated | Fully Threaded | Coarse | 13 mm | 116030 psi | 16 mm | 100 | €44.91 | |
 |
M01258.060.0020 | M6 x 1 | Steel | Zinc Plated | Partially Threaded | Coarse | 10 mm | 116030 psi | 18 mm | 100 | €26.52 | |
 |
M04132.100.0020 | M10 x 1.5 | Steel | Black Oxide | Fully Threaded | Coarse | 15 mm | - | 20 mm | 50 | €48.90 | |
|
M04132.080.0020 | M8 x 1.25 | Steel | Black Oxide | Fully Threaded | Coarse | 13 mm | 145038 psi | 20 mm | 100 | €69.92 | |
 |
M04132.060.0020 | M6 x 1 | Steel | Black Oxide | Partially Threaded | Coarse | 10 mm | 145038 psi | 18 mm | 100 | €33.53 | |
|
M04132.120.0025 | M12 x 1.75 | Steel | Black Oxide | Fully Threaded | Coarse | 16 mm | 145038 psi | 25 mm | 50 | €79.76 | |
|
M04132.080.0025 | M8 x 1.25 | - | Black Oxide | Partially Threaded | Coarse | 13 mm | 145038 psi | 22 mm | 100 | €74.97 |
