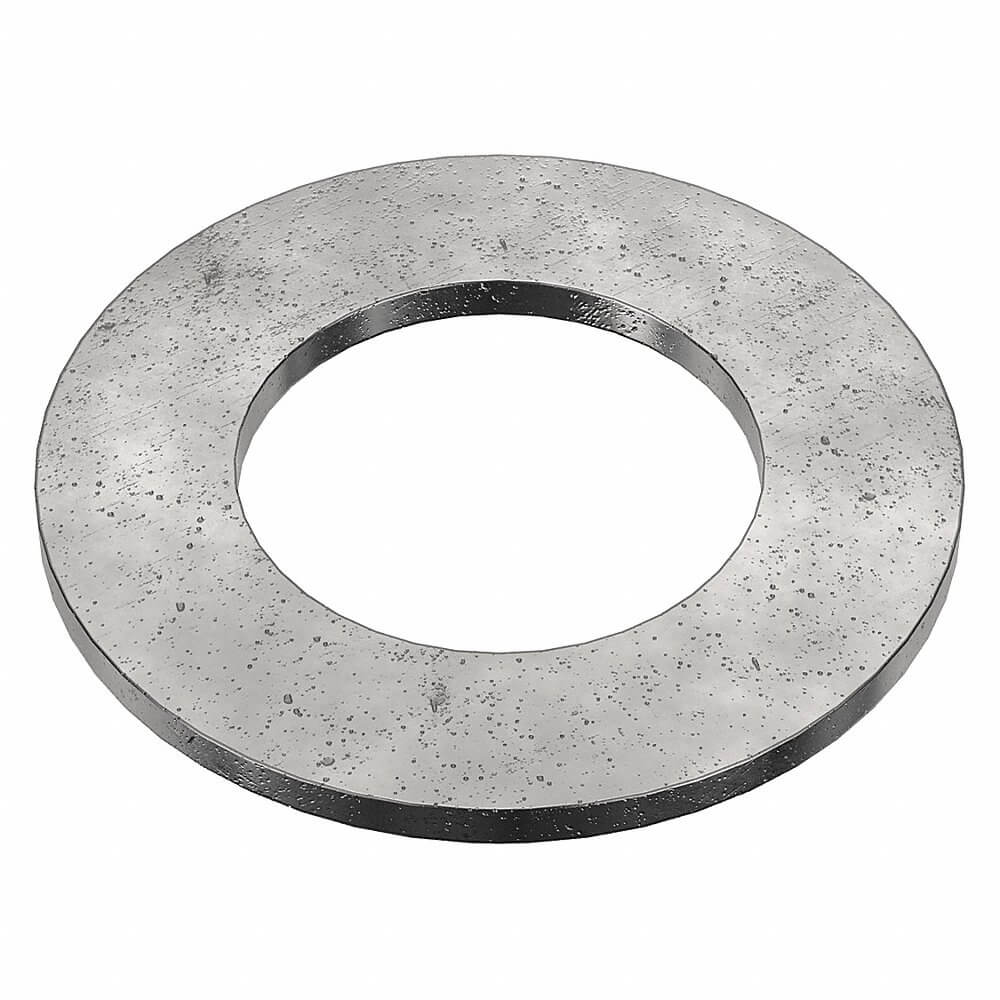

APPROVED VENDOR U38402.300.0001 Flat Washer, 3 In Fits Bolt Size, USS, 3 In I.D., 5 1/2 In O.D., Steel
Item: AB7DYZModel: U38402.300.0001Cross Ref: 22UE60
7 In Stock
Ships within 2 days via
5.00% off
€74.65 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Plain |
| Fits Bolt Size | 3" |
| Flat Washer Type | Uss |
| For Screw Size | 3" |
| Inside Dia. | 3" |
| Inside Dia. Tolerance | 3.115" to 3.19" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.284" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.284" |
| Outside Dia. | 5 1/2" |
| Outside Dia. Tolerance | 5.49" to 5.565" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.284" |
| Thickness Tolerance | 0.249" to 0.327" |
| Washer Type | USS Washer |
Shipping Info:
| Ship weight (kg) | 2.85 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38402.175.0001 | 1 3/4" | 0.156" | 0.18" | 0.18" | 1 3/4" | Ungraded | 0.1536" to 0.213" | 1.865" to 1.92" | 5 | €17.66 | |
 |
U38402.200.0001 | 2" | 0.156" | 0.18" | 0.18" | 2" | Ungraded | 0.153" to 0.213" | 2.115" to 2.17" | 5 | €23.40 | |
 |
U38402.250.0001 | 2 1/2" | 0.238" | 0.238" | 0.238" | 2 1/2" | Ungraded | 0.21" to 0.28" | 2.615" to 2.67" | 5 | €59.08 | |
 |
U38402.225.0001 | 2 1/4" | 0.156" | 0.22" | 0.22" | 2 1/4" | Ungraded | 0.193" to 0.248" | 2.365" to 2.42" | 5 | €42.40 | |
 |
U38100.087.0001 | 7/8" | 0.156" | 0.165" | 0.165" | 7/8" | Ungraded | 0.136" to 0.192" | 0.931" to 0.968" | 10 | €12.74 | |
 |
U38100.112.0001 | 1 1/8" | 0.156" | 0.165" | 0.165" | 1 1/8" | Ungraded | 0.136" to 0.192" | 1.243" to 1.28" | 5 | €9.15 | |
 |
U38100.125.0001 | 1 1/4" | 0.156" | 0.165" | 0.165" | 1 1/4" | Ungraded | 0.136" to 0.192" | 1.368" to 1.405" | 5 | €10.62 |
