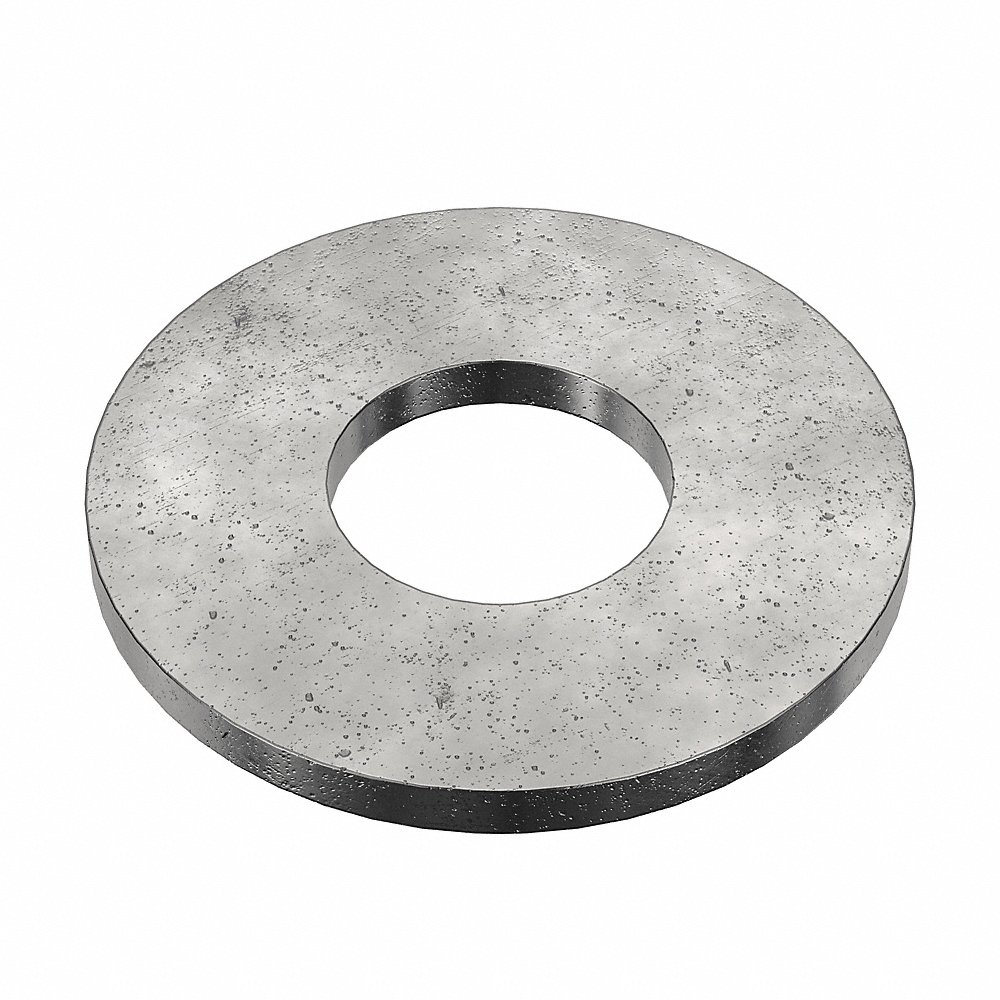

GRAINGER B38100.087.0001 Flat Washer, 7/8 In Fits Bolt Size, Oversized, 7/8 In I.D., 2 1/4 In O.D.
Get it by Monday, Jul 13
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Approx. Pkg. Qty. | 140 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Black Oxide |
| Fits Bolt Size | 7/8" |
| Flat Washer Type | Oversized |
| For Screw Size | 7/8" |
| Inside Dia. | 7/8" |
| Inside Dia. Tolerance | 0.931" to 0.968" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.165" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.165" |
| Outside Dia. | 2 1/4" |
| Outside Dia. Tolerance | 2.243" to 2.28" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thickness | 0.156" |
| Thickness Tolerance | 0.136" to 0.192" |
| Washer Type | Oversized Washer |
| Washer Type | Large OD Flat Washer |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 22.86 |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Tensile Strength | Min. Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38403.100.0001 | 1.031" | 2" | 0.156" | 0.188" | 0.17" to 0.208" | - | - | 0.188" | 5 | €8.39 | |
 |
U38403.112.0001 | 1.156" | 2 1/4" | 0.156" | 0.219" | 0.19" to 0.248" | - | - | 0.219" | 5 | €11.97 | |
 |
U38403.125.0001 | 1.281" | 2 1/2" | 0.281" | 0.281" | 0.265" to 0.297" | - | - | 0.281" | 5 | €13.39 | |
 |
Z9285 | 9/32" | 3/4" | 0.14" | 0.15" | -0.02" to +0.005" | Rockwell C4 | - | 0.13" | 10 | €51.77 | |
 |
Z9286 | 11/32" | 7/8" | 0.14" | 0.15" | -0.02" to +0.005" | Rockwell C4 | - | 0.13" | 10 | €28.27 | |
 |
Z9287 | 13/32" | 1" | 0.14" | 0.15" | -0.02" to +0.005" | Rockwell C4 | - | 0.13" | 5 | €14.13 | |
 |
Z9289 | 17/32" | 1 3/8" | 0.156" | 0.166" | -0.02" to +0.005" | Rockwell C4 | - | 0.146" | 5 | €24.31 |
