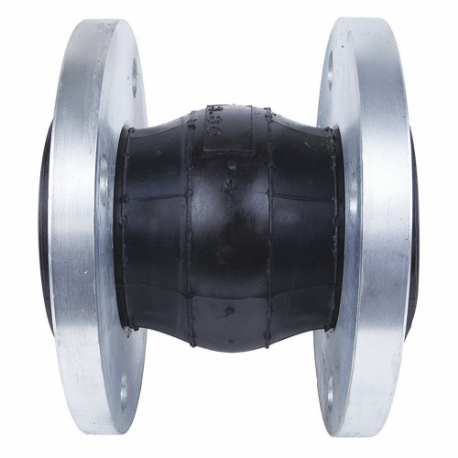

GRAINGER AMSE212 Expansion Joint, 12 Inch Pipe Size
Get it by Monday, Dec 22
10.00% off
€922.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Expansion Joint |
| Bolt Circle Dia. | 17" |
| Bolt Hole Size | 1" |
| Bolt Hole Threading | Unthreaded |
| Burst Pressure | 853 psi |
| Compression Distance | 3/4" |
| Connection Type | Flanged |
| Expansion Distance | 1/2" |
| Expansion Joint Type | Single Bulb |
| Features | Absorbs Water Pulsation And Minimizes Water Hammering, Applicable For Suction And Delivery (Discharge), Floating Flanges, Prevents Piping System And Equipment Breakdown, Provides Sound And Vibration Isolation |
| Flange Dia. | 19" |
| Flange Material | Steel |
| Flange Material Finish | Zinc Plated |
| For Environment | Industrial Plants, Power Generation Plants, Shipbuilding Yards, Universal Pump Blowers, Waterworks, Sanitary Piping Systems |
| Max. Operating Pressure | 214 psi |
| Maximum Off-center Angle | 15° |
| Maximum Operating Temperature | 210°F |
| Minimum Operating Temperature | 14°F |
| Number Of Bolt Holes | 12 |
| Offset Distance | 3/4" |
| Outside Dia. | 19" |
| Overall Length | 8" |
| Pipe Size | 12" |
| Reinforcement Material | Synthetic Fiber |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Pipe Size | Max. Operating Pressure | Overall Length | Connection Type | Number Of Bolt Holes | Bolt Hole Size | Expansion Joint Type | Offset Distance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LR-24-S | 1 1/2" | - | - | - | - | - | - | - | €92.04 | |
| LR-24-L | 1 1/2" | - | - | - | - | - | - | - | €64.72 | |
| LR-20-L | 1 1/4" | - | - | - | - | - | - | - | €101.61 | |
| LR-20-S | 1 1/4" | - | - | - | - | - | - | - | €91.45 | |
| LR-16-L | 1" | - | - | - | - | - | - | - | €59.33 | |
| LR-16-S | 1" | - | - | - | - | - | - | - | €91.45 | |
| LR-160-L | 10" | - | - | - | - | - | - | - | €232.53 |
