GRAINGER 7141 DA DS Door Closer, Non Hold Open, Non-Handed, 12 1/4 Inch Housing Lg, 2 1/4 Inch Housing Dp
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€243.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Cast Iron |
| Arm Type | Parallel |
| Closer Cycles | 2000000 |
| Closer Mounting Style | Parallel |
| Closer Mounting Type | Parallel |
| Closer Series | 7100 Series |
| Closer Stop Type | Compression |
| Closer Type | Non Hold Open |
| Color | Gray |
| Compatible With Series | 4040 Series |
| Door Width Campatibility | 54" |
| Energy Source | Hydraulic |
| Exterior Door Width-max. | 48" |
| Finish | Aluminum, Painted |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 2 1/4" |
| Housing Height | 3 1/2" |
| Housing Length | 12 1/4" |
| Hydraulic/pneumatic | Hydraulic |
| Included Hardware | Hardware Included |
| Interior/exterior | Interior And Exterior |
| Length Between Mounting Holes | 1", 3" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max. Door Opening | 180° |
| Max. Door Opening Angle | 180° |
| Min. Spring Size | 1 |
| Mounting Hardware | Included |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Spring Size | 6 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 6.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Color | Housing Length | Finish | Housing Depth | Housing Height | Material | Spring Size | Length Between Mounting Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

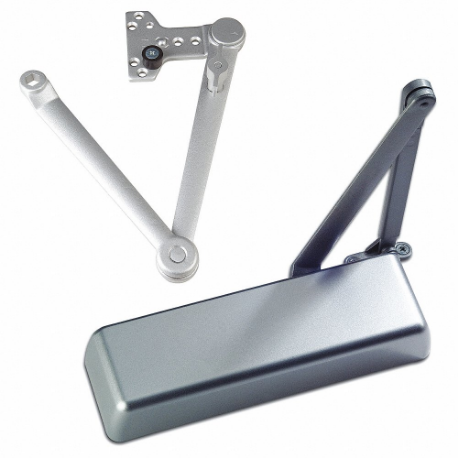

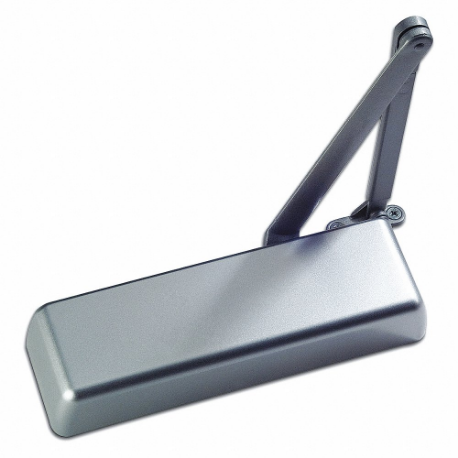

7101 BC DS HO 689 | Gray | 12 1/4" | Aluminum, Painted | 2 1/4" | 3 1/2" | Cast Iron | 6 | 1", 3" | €475.93 | |
|
7101 BC PA HO 689 | Gray | 12 1/4" | Aluminum, Painted | 2 1/4" | 3 1/2" | Cast Iron | 6 | 1", 3" | €441.12 | |
 |

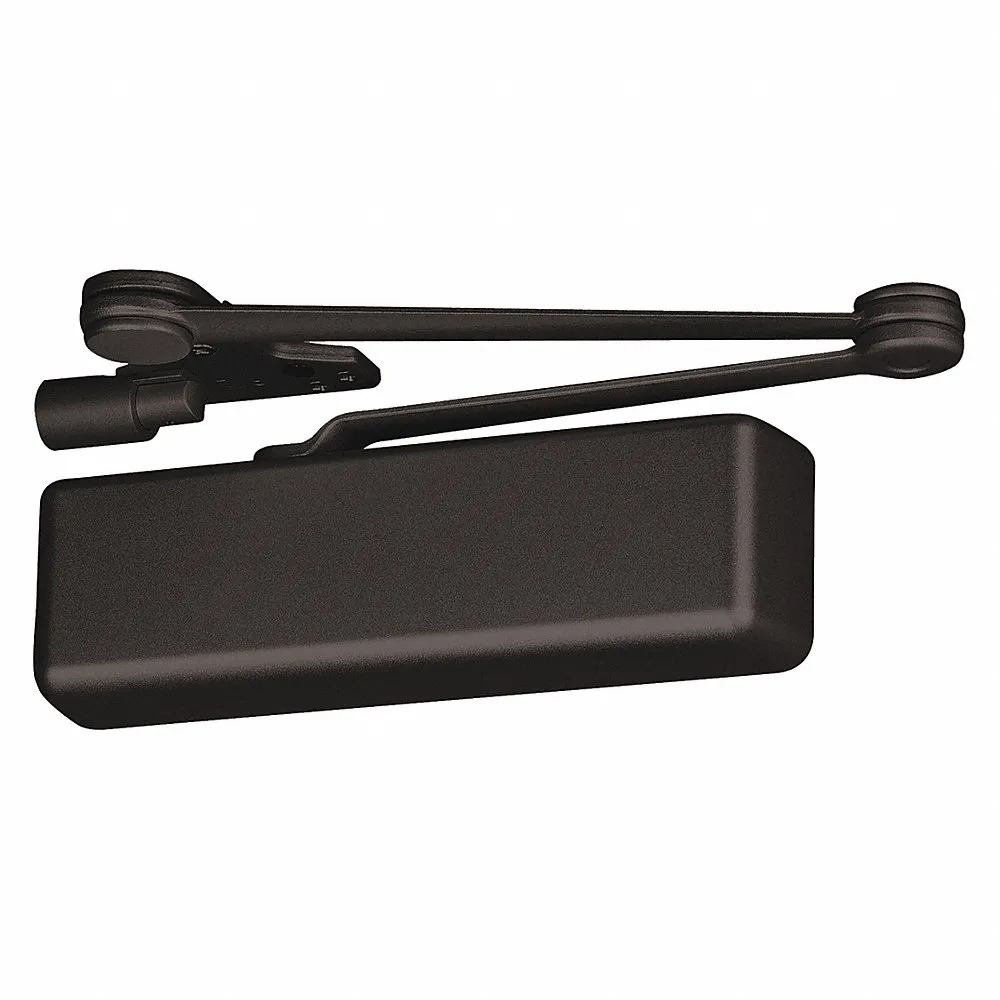

5831T x 690 GAV | Bronze | 12 1/4" | Dark Bronze Paint | 3 1/2" | 2 1/4" | Cast Iron | 6 | 5" | €505.19 | |
 |

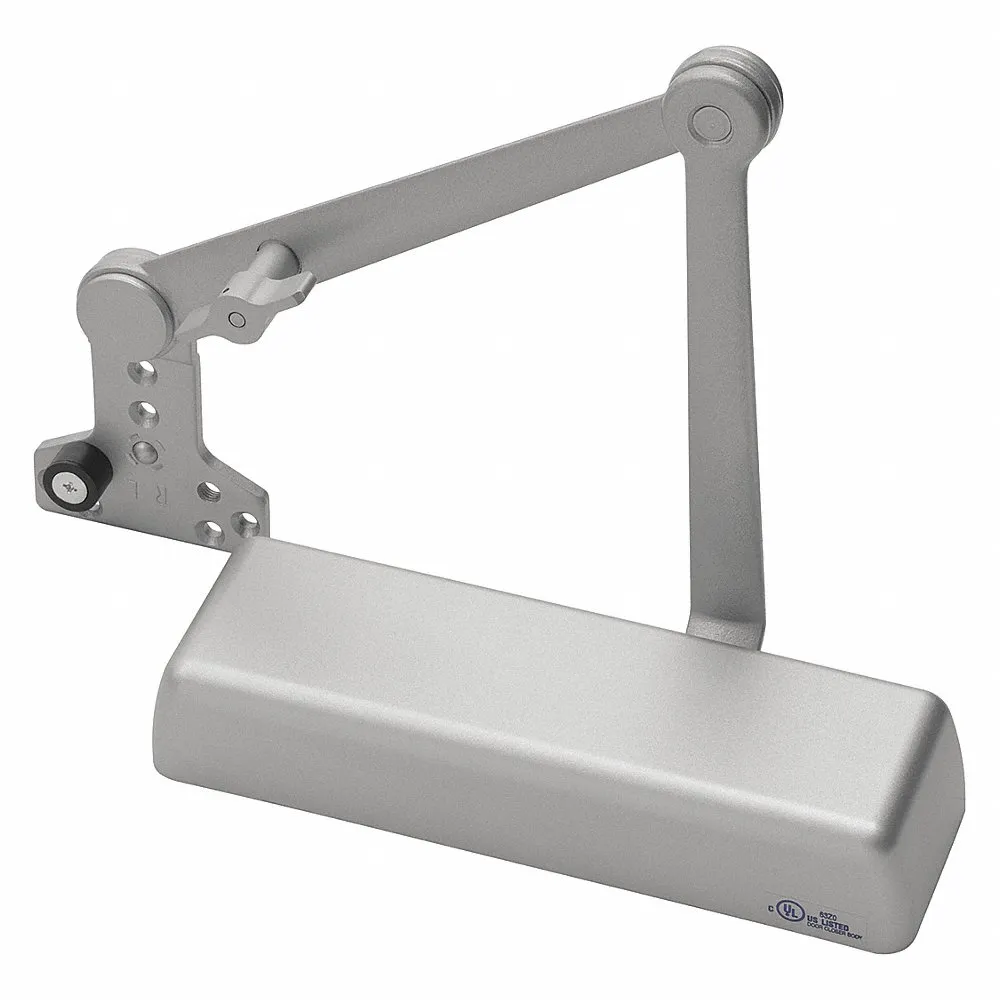

5831T x 689 GAV | Gray | 12 1/4" | Aluminum Paint | 3 1/2" | 2 1/4" | Cast Iron | 6 | 5" | €511.36 | |
 |
5811 x 690 GAV | Bronze | 12 1/4" | Dark Bronze Paint | 3 1/2" | 3 1/2" | Cast Iron | 6 | 5" | €461.94 | |
 |

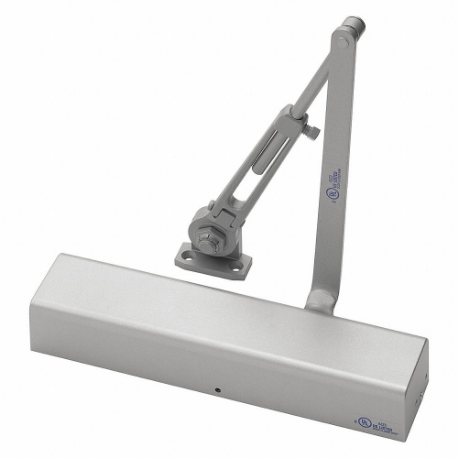

2711 x 689 GAV | Gray | 13" | Aluminum Paint | 2 7/8" | 2 7/8" | Aluminum | 6 | 12" | €354.03 | |
 |

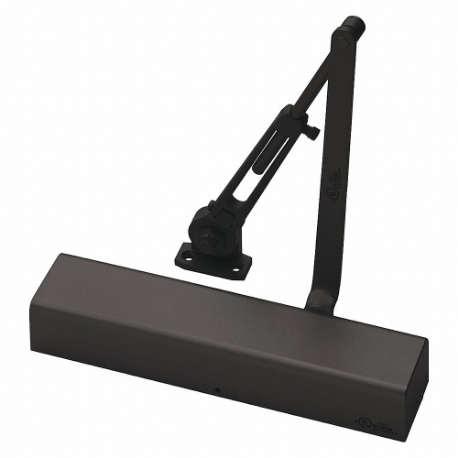

2711 X 690 GAV | Bronze | 13" | Dark Bronze Paint | 2 7/8" | 2 7/8" | Aluminum | 6 | 12" | €354.03 |
