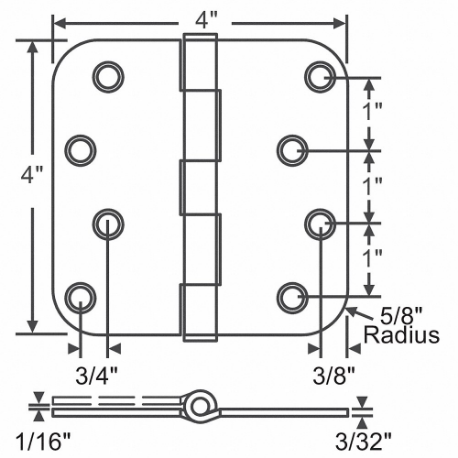

GRAINGER 56-179SCH Butt Hinge, 4 Holes per Leaf, 4 Inch Door Leaf Height, 4 Inch Door Leaf Width
Item: CP9CMPModel: 56-179SCHCross Ref: 451K15
7 In Stock
Ships within 2 days via
10.00% off
€11.91 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Butt Hinge |
| Bearing Type | Plain |
| Corner Radius | 5/8" |
| Corner Type | Radius |
| Door Leaf Height | 4" |
| Door Leaf Thickness | 0.094" |
| Door Leaf Width | 4" |
| Features | Reversible Hinges |
| Finish | Satin Chrome |
| Frame Leaf Height | 4" |
| Frame Leaf Thickness | 0.094" |
| Frame Leaf Width | 4" |
| Hardware | Included |
| Hinge Number | #1 Heavy Duty |
| Holes | With |
| Holes Per Leaf | 4 |
| Includes Hardware | Hardware Included |
| Ligature Resistant | No |
| Load Capacity | 125 lbs. |
| Material | Steel |
| Mounting | Full Mortise |
| Mounting Style | Full Mortise |
| Number Of Wires | 0 |
| Orientation | Non Handed |
| Overall Height | 4" |
| Overall Width | 4" |
| Pin Dia. | 0.312" |
| Pin Diameter | 5/16" |
| Pin Material | Steel |
| Pin Type | Removable |
| Range Of Motion | 160° |
| Range Of Motion - Maximum | 160° |
| Removable Pin | Yes |
| Required Door Thickness | 1 3/4" |
| Standards | Ansi/Bhma |
Shipping Info:
| Ship weight (kg) | 0.48 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting | Frame Leaf Width | Bearing Type | Frame Leaf Thickness | Holes Per Leaf | Load Capacity | Hardware | Range Of Motion | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8-236 | Full Surface | 1 1/2" | Plain | 0.06" | 2 | 30 lbs. | Included | 160° | €4.43 | |
 |
8-230 | Full Surface | 2" | Plain | 0.06" | 2 | 30 lbs. | Included | 160° | €7.46 | |
 |
56-262SNK | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €5.55 | |
 |
56-262SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €7.48 | |
 |
56-263SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €9.41 | |
 |
56-261SBRS | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €9.04 | |
|
56-263SNK | Full Mortise | 3 1/2" | Plain | 0.063" | 3 | 100 lbs. | Included | 160° | €12.67 |
