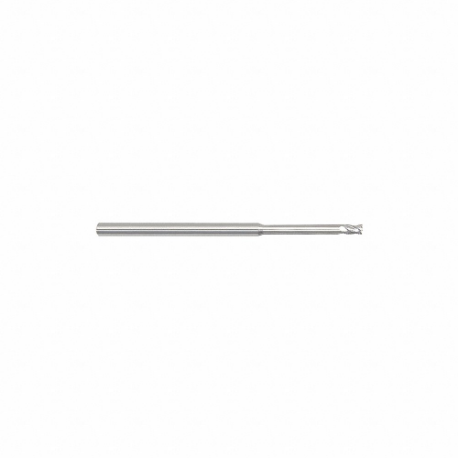

GRAINGER 251-004095 Corner Chamfer End Mill, Carbide, Bright Finish, 3/32 Inch Milling Dia
Item: CQ2MHXModel: 251-004095Cross Ref: 55HJ79
7 In Stock
Ships within 2 days via
10.00% off
€51.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Chamfer End Mill |
| Chamfer Angle | 45° |
| Chamfer Width | 0.003" |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.188" |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing, Roughing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Chamfer |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Spiral |
| Grade | Grade C2 |
| Helix Angle | 30° |
| Length Of Cut | 3/16" |
| List Number | 251 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Application | Cast Iron, Hardened Steel, Nickel, Stainless Steels, Steels, Titanium |
| Material Grade - Machining | Grade C2 Micro Grain |
| Measurement System | Fractional Inch |
| Milling Dia. | 3/32" |
| Neck Dia. | 5/64" |
| Neck Length | 35/64" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 4 |
| Overall Length | 2 1/2" |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Secondary Material Application | General Purpose |
| Secondary Material Application Iso Code | H, K, P |
| Shank Dia. | 1/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Number Of Flutes | Finish | Overall Length | Length Of Cut | Neck Length | Neck Dia. | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
251-003045B | 1/16" | 3 | Aluminum Titanium Nitride | 1 1/2" | 3/32" | 0" | 0" | 0.094" | €50.09 | |
|
251-003050B | 1/16" | 3 | Aluminum Titanium Nitride | 1 1/2" | 3/16" | 0" | 0" | 0.188" | €50.09 | |
 |
251-003055B | 0.062" | 3 | Aluminum Titanium Nitride | 2 1/2" | - | 3/8" | 0.047" | 0.094" | €67.56 | |
|
251-003060B | 1/16" | 3 | Aluminum Titanium Nitride | 2 1/2" | 3/32" | 5/8" | 3/64" | 0.094" | €70.02 | |
 |
251-004060B | 1/16" | 4 | Aluminum Titanium Nitride | 2 1/2" | 3/32" | 5/8" | 3/64" | 0.094" | €70.02 | |
|
251-004055B | 1/16" | 4 | Aluminum Titanium Nitride | 2 1/2" | 3/32" | 3/8" | 3/64" | 0.094" | €70.70 | |
 |
251-004045B | 1/16" | 4 | Aluminum Titanium Nitride | 1 1/2" | 3/32" | 0" | 0" | 0.094" | €50.09 |
