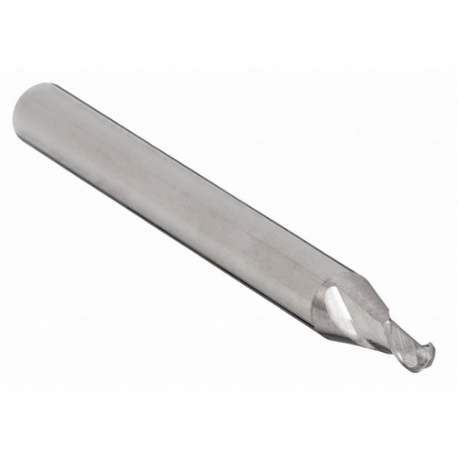

GRAINGER 219-001025 Ball End Mill, 2 Flutes, 5/64 Inch Milling Dia
Item: CQ2MNMModel: 219-001025Cross Ref: 19LM28
7 In Stock
Ships within 2 days via
5.00% off
€17.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball End Mill |
| Chip Breaker | No |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 0.156" |
| Cutting Type | Center Cutting |
| Drilling Tool Configuration | Individual |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Ball Nose |
| End Type | Single End |
| Finish | Bright Uncoated |
| Finish-machining | Bright (Uncoated) |
| Grade | General Purpose |
| Helix Angle | 30° |
| Length Of Cut | 5/32" |
| List Number | 219 |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Milling Dia. | 5/64" |
| Neck Dia. | 0" |
| Neck Length | 0" |
| No. Of Flutes | 2 |
| Overall Length | 1 1/2" |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, K, M, N, P |
| Shank Dia. | 1/8" |
| Shank Type | Weldon Flat |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Cutting Length | Finish | Milling Dia. | Shank Dia. | Primary Material Application Iso Code | Shank Type-machining | Finish-machining | List Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
221-001395 | 4 mm | Bright Uncoated | 1 mm | 3 mm | H, K, M, N, P | Weldon Flat | Bright (Uncoated) | 221 | €19.46 | |
 |
221-001400B | 5.5 mm | Aluminum Titanium Nitride | 1 mm | 3 mm | H, K, M, N, P | Weldon Flat | AlTiN | 221 | €28.27 | |
 |
221-001400A | 5.5 mm | Tin | 1 mm | 3 mm | K, M, N, P | Weldon Flat | Tin | 221 | €23.24 | |
 |
221-001400C | 5.5 mm | Titanium Carbonitride | 1 mm | 3 mm | H, K, M, N, P | Weldon Flat | TiCN | 221 | €24.29 | |
|
221-001410 | 5 mm | Bright Uncoated | 1.5 mm | 3 mm | H, K, M, N, P | Weldon Flat | Bright (Uncoated) | 221 | €23.77 | |
|
221-001410B | 5 mm | Aluminum Titanium Nitride | - | 3 mm | - | - | - | 221 | €29.99 | |
|
221-001410A | 5 mm | Tin | 1.5 mm | 3 mm | K, M, N, P | Weldon Flat | Tin | 221 | €21.25 |
