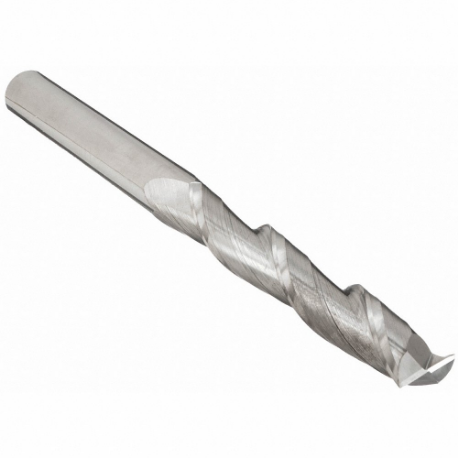

GRAINGER 216-001099C Square End Mill, 2 Flutes, 1 Inch Milling Dia, 4 Inch Length Of Cut, 7 Inch Overall Length
Item: CP9VWKModel: 216-001099CCross Ref: 55HG11
7 In Stock
Ships within 2 days via
10.00% off
€619.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Length | 4" |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing, Roughing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Titanium Carbonitride |
| Flute Type | Spiral |
| Helix Angle | 30° |
| List Number | 216 |
| Material | Carbide |
| Material Application | Cast Iron, Stainless Steel, Steel |
| Measurement System | Fractional Inch |
| Milling Dia. | 1" |
| Neck Diameter | 0" |
| Neck Length | 0" |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 7" |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Secondary Material Application | General Purpose |
| Shank Dia. | 1" |
| Shank Type | Straight |
| Single End/double End | Single End |
| Spiral Direction | Right Hand |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 1.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | List Number | Number Of Flutes | Overall Length | Finish | Grade | Milling Dia. | Shank Dia. | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
206-001203C | 206 | 4 | 3" | Titanium Carbonitride | - | 1/2" | 1/2" | 30° | €80.68 | |
|
215-001054C | 215 | 4 | 4" | Titanium Carbonitride | - | 1/2" | 1/2" | 30° | €113.92 | |
 |
218-001037C | 218 | 4 | 4" | Titanium Carbonitride | - | 3/8" | 3/8" | 30° | €89.66 | |
 |
204-001263 | 204 | 2 | 4" | ALTiN | Grade C2 | 1" | 1" | 30° | €344.45 | |
 |
204-001260 | 204 | 2 | 4" | Bright, Uncoated | Grade C2 | 1" | 1" | 30° | €294.62 | |
 |
216-001096 | 216 | 2 | 6" | ALTiN | Grade C2 | 1" | 1" | 30° | €604.92 | |
 |
216-001095 | 216 | 2 | 6" | Bright, Uncoated | Grade C2 | 1" | 1" | 30° | €503.39 |
