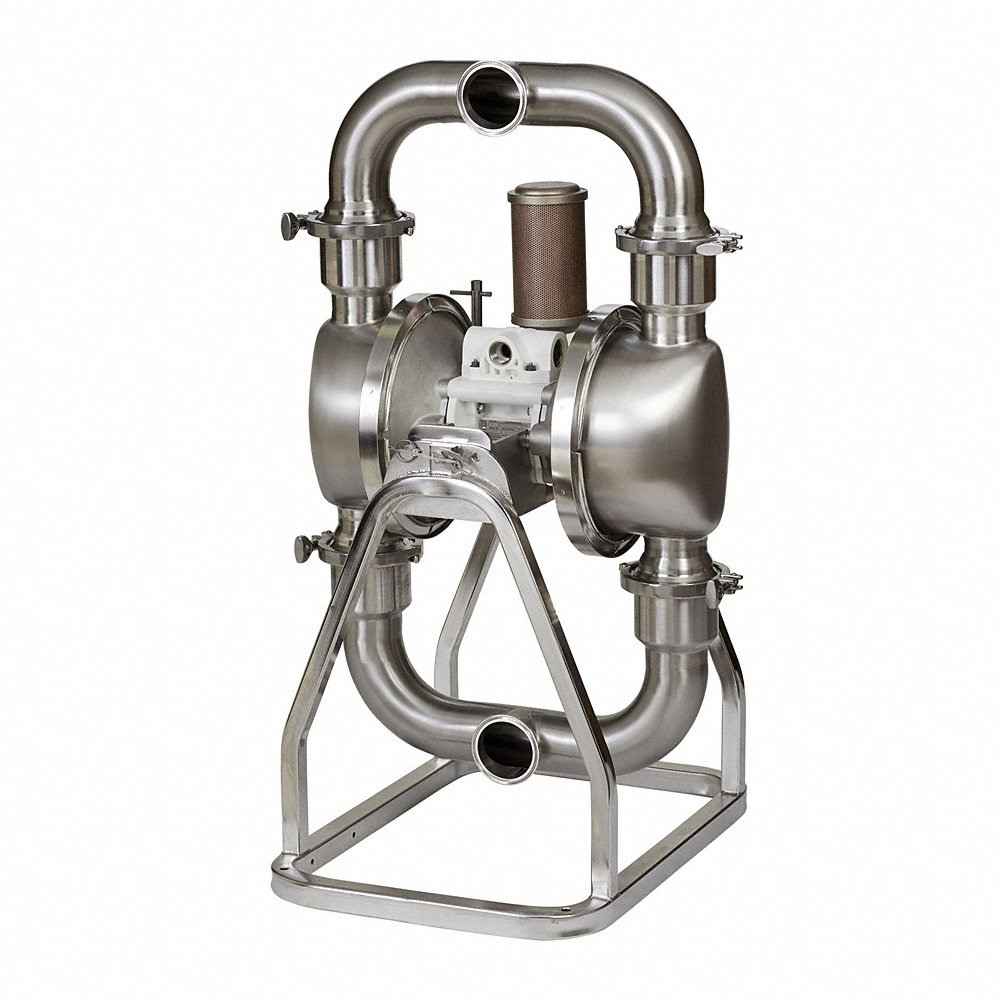

GRACO SP3B.0036 AODD PUMP, Air, Oils, Stainless Steel, Single Port, 230 gpm Max. Flow Rate
Get it by Friday, Aug 28
€38,222.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Air Exhaust Port Size | 1" |
| Air Inlet | 3/4" NPT |
| Air Inlet Connection Size | 3/4" |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
| Diaphragm Material | EPDM Overmolded |
| Duty Cycle | Continuous |
| Family Series | Saniforce Series |
| Fluid Discharge Connection | 3" Flange |
| Fluid Section Material Grade | Grade 316L |
| For Use With Potable Systems | Yes |
| Includes | Diaphragms |
| Manifold Configuration | Center Port |
| Manifold Connection | Single Port |
| Manifold O-ring Material | EPDM |
| Max. Head | 230.7 ft. |
| Max. Solid Dia. | 3 4/5" |
| Max. Viscosity | 25000 cPS |
| Media Discharge Location | Bottom |
| Media Inlet Location | Top |
| Non-wetted Housing Material | Aluminum |
| Overall Height | 38 3/5" |
| Priming | Self-Priming |
| Pump Assembly Type | Clamp |
| Series | 3250 Series |
Shipping Info:
| Ship weight (kg) | 78.3 |
| Ship height (cm) | 127 |
| Ship length (cm) | 71.12 |
| Ship width (cm) | 83.82 |
| Country of Origin | US |
