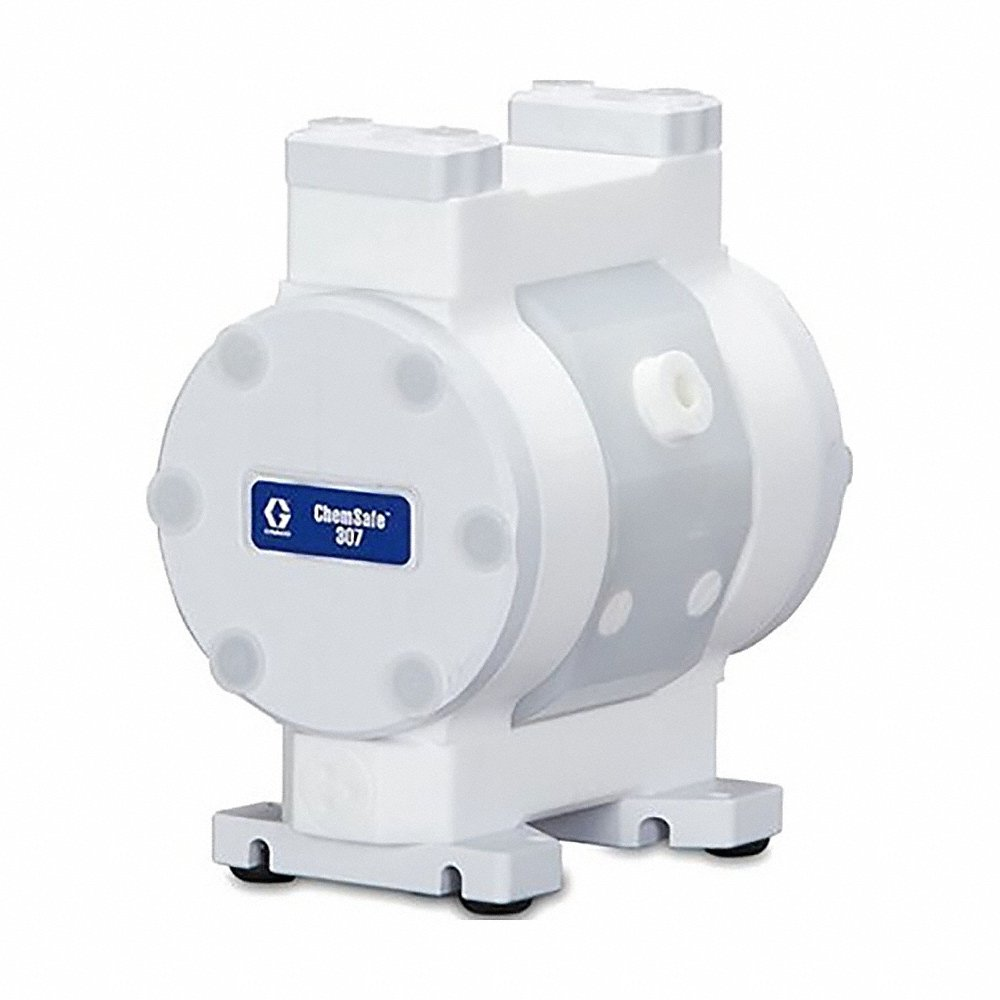

GRACO 24X427 AODD Plastic Pump
Item: CY7GGKModel: 24X427Cross Ref: 806ZN9
7 In Stock
Ships within 2 days via
€4,908.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Air Intake Connection Size | 1/8" |
| Duty Cycle | Continuous |
| Flow Rate @ 100 Psi | 6.7 GPM |
| Flow Rate @ 70 Psi | 6.5 GPM |
| For Use With Potable Systems | Yes |
| Included | Balls, Diaphragms, Fluid Path, Npt Port, Seats |
| Manifold Connection | Single Port |
| Max. Air Consumption | 9.3 SCFM |
| Max. Air Intake Pressure | 100 psi |
| Max. Feet Of Head | 230.7 ft. |
| Max. Flow Rate | 6.7 GPM |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 2/25" |
| Media Discharge Connection Size | 3/8" |
| Media Discharge Location | Center |
| Media Intake Connection Size | 3/8" |
| Media Intake Location | Side |
| Overall Height | 7 3/5" |
| Overall Length | 5.9" |
| Overall Width | 3 1/2" |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Series | 307 |
| Series Family | Chemsafe |
| Wetted Housing Material | Ptfe |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
