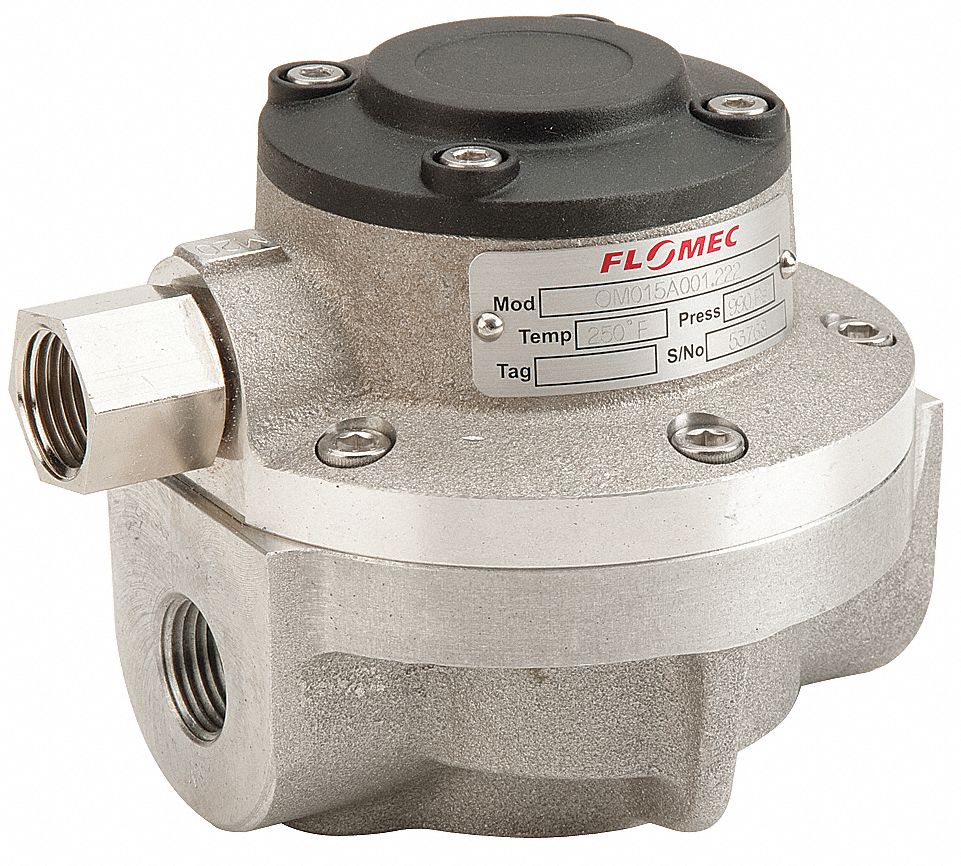

GPI OM015A511-222 Electronic Flowmeter, Oval Gear, 0.26 to 10.6 gpm Flow Range, 1/2 FNPT
Item: CH6HFRModel: OM015A511-222Cross Ref: 20YC32
7 In Stock
Ships within 2 days via
5.00% off
€1,403.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1% to +1% |
| Compatible Flow Material | Chemicals, Lubricants, Oils, Viscous Fluids |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Flow | 0.26-10.6 GPM |
| Flow Material | Chemicals, Lubricants, Oil, Thick Fluids |
| Flow Range @ Gph | 15.6 To 636 |
| Flow Ranges (gpm) | 0.26 To 10.6 |
| Flow Rate | 0.26-10.6 GPM |
| Flowmeter Type | Electromagnetic |
| Fluid Connection Size | 1/2" |
| Fluid Connection Type | NPT |
| Fluid Temp. | -4°F to +250°F |
| Fluid Temp. Range | -4 To 250 Deg. F |
| Frequency | 2.76-112.36 Hz |
| Frequency Range | 2.76-112.36 Hz |
| Grade | Grade 316 |
| Housing Material | Aluminum |
| Max. Flow Rate | 10.6 GPM |
| Max. Frequency | 112.36 Hz |
| Max. Media Temp. | 250°F |
| Max. Operating Pressure | 990 psi |
| Max. Temp. | 180°F |
| Max. Viscosity | 4600 SUS |
| Media Temp. | 4°F to 250°F |
| Media Type | Chemicals, High Viscosity, Lubricants, oils, Thick Fluids |
| Min. Flow Rate | 0.26 GPM |
| Min. Frequency | 2.76 Hz |
| Min. Media Temp. | 4°F |
| O-ring Material | Viton |
| Output Type | Scaled Pulse |
| Overall Length | 4" |
| Power Required | 5/24V DC |
| Product Type | Oval Gear Flow Meter |
| Rotor Material | Stainless Steel |
| Series | OM Series |
| Unit Of Measure | Gallons, Liters |
| Wetted Material | Stainless Steel, Aluminum, Carbon, Viton |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 12.95 |
| Country of Origin | AU |
Product Details:
- 20YC32
Product Variants
| Product | Model | Flow | Housing Material | Min. Flow Rate | Max. Flow Rate | Max. Operating Pressure | Flowmeter Type | Max. Media Temp. | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
OM015S003-822R5G | 0.26-10.6 GPM | Stainless Steel | 0.26 GPM | 26 GPM | 990 psi | Electromagnetic | 176°F | -22°F to +176°F | €3,884.67 | |
|
OM025S003-822R5G | 2.6-40 GPM | Stainless Steel | 2.6 GPM | 40 GPM | 990 psi | Electromagnetic | 176°F | -22°F to +176°F | €4,207.41 | |
 |
OM050S003-842R5G | 8-130 GPM | Stainless Steel | 8 GPM | 130 GPM | 550 psi | Electromagnetic | 176°F | -22°F to +176°F | €8,574.34 | |
 |
OM025A001-822R5G | 2.6-40 GPM | Aluminum | 2.6 GPM | 40 GPM | 990 psi | Oval Gear | 140°F | 14°F to 140°F | €2,466.75 | |
|
OM040A001-822R5G | 4-66 GPM | Aluminum | 4 GPM | 66 GPM | 435 psi | Oval Gear | 140°F | 14°F to 140°F | €3,521.96 | |
|
OM050A001-842R5G | 8-130 GPM | Aluminum | 8 GPM | 130 GPM | 175 psi | Oval Gear | 176°F | 5°F to 176°F | €5,291.93 | |
|
OM015S513-822R5G | 0.26-10.6 GPM | Stainless Steel | 0.26 GPM | 10.6 GPM | 990 psi | Oval Gear | 140°F | 14°F to 140°F | €4,118.58 |
