FLOMEC OM050S003-842R5G OM050S003-842G5 Electronic Flowmeter, Oval Gear, 8 To 130 gpm Flow Range, 2 FNPT
Get it by Tuesday, Dec 23
10.00% off
€7,535.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | +/-0.5% |
| Compatible Flow Material | Lubricants, Oils, Viscous Fluids |
| Connection Size | 1/2" |
| Connection Type | NPT |
| Display Type | Digital |
| Display Units | Gal |
| Flow Material | High Viscosity, Lubricants, Oil, Thick Fluids |
| Flow Material | Lubricants, Oil, Thick Fluids |
| Flow Range | 8-130 GPM |
| Flow Range @ Gph | 480 To 7800 |
| Flow Ranges (gpm) | 8 To 130 |
| Flow Rate | 8-130 GPM |
| Flow Rate - Maximum | 130 GPM |
| Flow Rate - Minimum | 8 GPM |
| Flowmeter Type | Electromagnetic |
| Fluid Connection Size | 1/2" |
| Fluid Connection Type | NPT |
| Fluid Temp. | -22°F to +176°F |
| Fluid Temp. Range | -22 To 176 Deg. F |
| For Pipe Size | 2" |
| Frequency - Minimum | 13 Hz |
| Frequency Range | 13.0-216.7 Hz |
| Frequency Range | 13-216.7 Hz |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes Totalizer | Yes |
| Length | 8.3" |
| Max. Flow Rate | 130 GPM |
| Max. Frequency | 216.7 Hz |
| Max. Media Temperature | 176°F |
| Max. Operating Pressure | 550 psi |
| Max. Temp. | 176°F |
| Max. Viscosity | 1000 cPS |
| Media Temperature Range | -22°F to +176°F |
| Media Type | Lubricants, Oil, Thick Fluids |
| Min. Flow Rate | 8 GPM |
| Min. Frequency | 13 Hz |
| Min. Media Temp. | -22°F |
| O-ring Material | Viton |
| Output Type | 4-20 MA |
| Overall Height | 8 3/5" |
| Overall Length | 8.3" |
| Overall Width | 7.1" |
| Power Required | 8-24V DC |
| Product Type | Oval Gear Flow Meter |
| Rotor Material | Polyphenylene Sulfide |
| Sensor Type | Oval Gear |
| Series | OM Series |
| Unit Of Measure | Gallons |
| Wetted Material | Ceramic, PPS, PTFE, Stainless Steel, Viton |
| Width | 7.1" |
Shipping Info:
| Ship weight (kg) | 17.35 |
| Ship height (cm) | 21.84 |
| Ship length (cm) | 21.08 |
| Ship width (cm) | 18.03 |
| Country of Origin | AU |
Product Details:
- Replacement Part Number For OM050S003-842G5
Product Variants
| Model | Connection Size | Min. Flow Rate | Max. Flow Rate | Max. Operating Pressure | Max. Viscosity | Accuracy | Max. Temp. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| OM015S003-822R5G | 1/2" | 0.26 GPM | 26 GPM | 990 psi | 1000 cPS | +/-0.5% | 176°F | 4.3" | €3,847.76 | |
| OM025S003-822R5G | 1/2" | 2.6 GPM | 40 GPM | 990 psi | 1000 cPS | +/-0.5% | 176°F | 6.9" | €4,107.98 | |

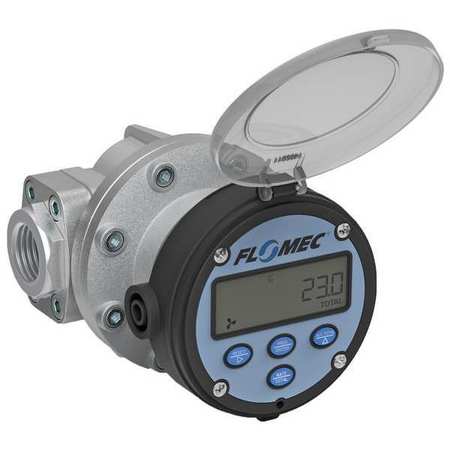

| OM025A001-822R5G | 1" | 2.6 GPM | 40 GPM | 990 psi | 1000 cPS | +/-0.5% | 140°F | 5 2/5" | €2,734.19 | |
| OM040A001-822R5G | 1 1/2" | 4 GPM | 66 GPM | 435 psi | 1000 cPS | +/-0.5% | 140°F | 7 2/5" | €3,553.79 | |
| OM050A001-842R5G | 2" | 8 GPM | 130 GPM | 175 psi | 1000 cPS | +/-0.5% | 176°F | 10.9" | €5,258.38 | |

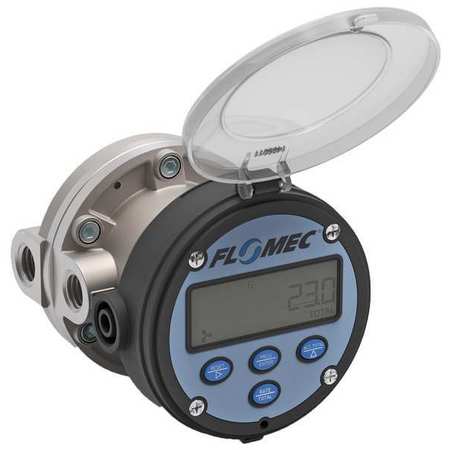

| OM015S513-822R5G | 1/2" | 0.26 GPM | 10.6 GPM | 990 psi | 1000 cPS | +/-0.5% | 140°F | 4.3" | €4,078.18 | |
| OM025A513-822R5G | 1" | 2.6 GPM | 40 GPM | 990 psi | 1000 cPS | +/-0.5% | 176°F | 5 2/5" | €3,330.41 |
