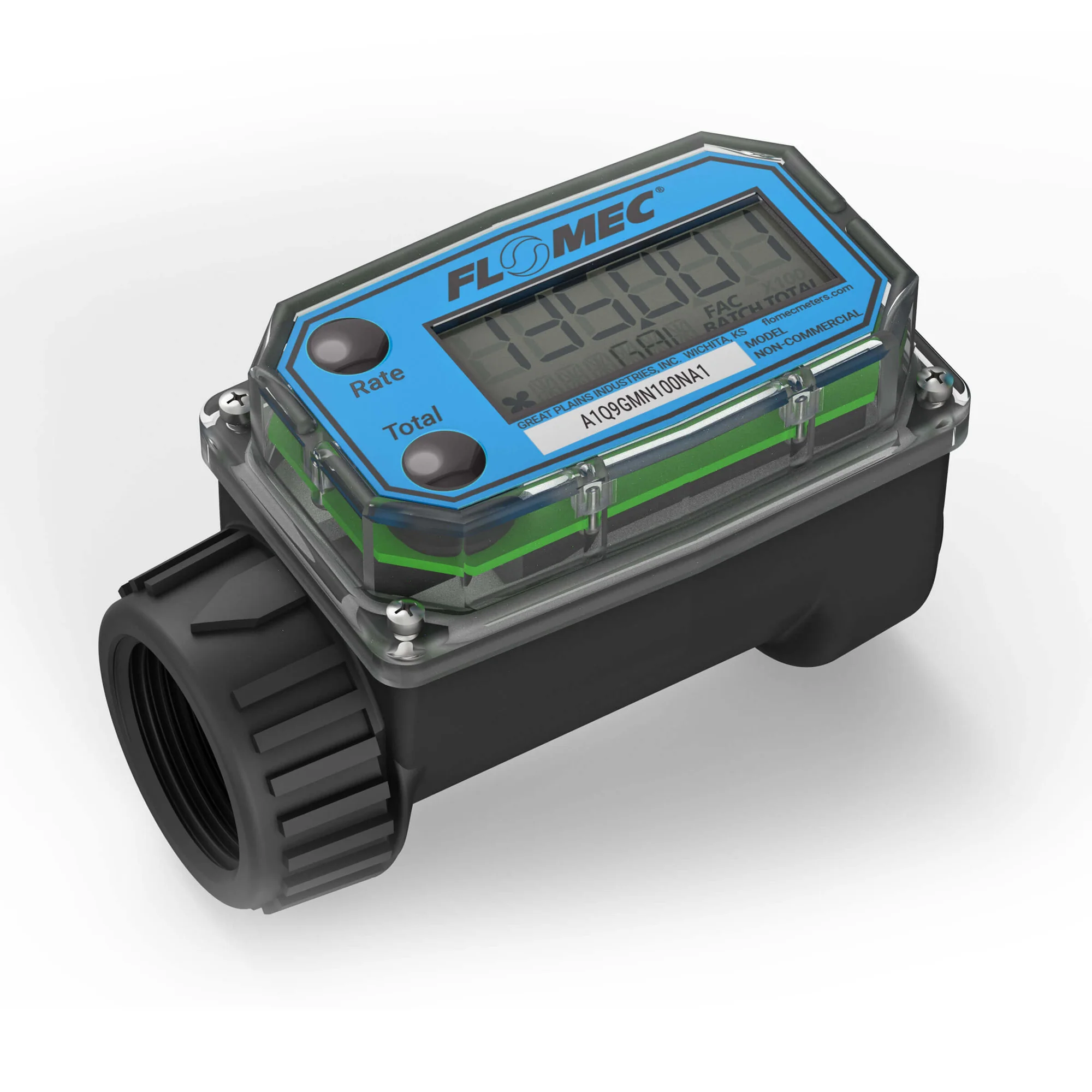

GPI A1Q9GMN100NA1 Electronic Flowmeter, Turbine, 3 to 50 gpm Flow Range, 1 FNPT
Get it by Tuesday, Aug 25
€923.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy | -1.5% to +1.5% |
| Compatible Flow Material | Water Like Liquids |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Digital |
| Flow | 3-50 GPM |
| Flow Material | Water, Water Based Non Corrosive Fluids, Water Like Liquids |
| Flow Range @ Gph | 180 To 3000 |
| Flow Ranges (gpm) | 3 To 50 |
| Flowmeter Type | Turbine |
| Fluid Temp. | 0°F to +129°F |
| Fluid Temp. Range | 0 To 129 Deg. F |
| For Pipe Size | 1" |
| Frequency | 36.5-608.3 Hz |
| Frequency Range | 36.5-608.3 Hz |
| Housing Material | Nylon |
| Included Totalizer | Yes |
| Inlet/outlet Connection | 1" |
| Inlet/outlet Connection Type | FNPT |
| Max. Flow Rate | 50 GPM |
| Max. Frequency | 608.3 Hz |
| Max. Media Temp. | 250°F |
| Max. Operating Pressure | 150 psi |
| Max. Temp. | 140°F |
| Max. Viscosity | 100 cPS |
| Max. Voltage | 1.5V |
| Media Temp. | -40°F to +250°F |
| Min. Flow Rate | 3 GPM |
| Min. Frequency | 36.5 Hz |
| Min. Media Temp. | -40°F |
| Mounting Orientation | Universal |
| No. Of Batteries | 2 |
| O-ring Material | Stainless Steel |
| Output Type | 4-20 mA |
| Overall Height | 0.9" , 2 1/2" |
| Overall Length | 3.4" , 4" |
| Overall Width | 2" , 2.1" |
| Product Datasheet | gpi-a1q9gmn100na1.pdf |
| Product Type | Commercial Grade Meter |
| Pulse Rate | 999999 pulses/gal. |
| Rotor Material | Nylon |
| Series | A1 Series |
| Shaft Material | Tungsten Carbide |
| Termination | Not Listed |
| Unit Of Measure | Gallons, Liters |
| Voltage | 1.5V |
| Wetted Material | Aluminum, Ceramic, Nylon, Stainless Steel, Tungsten Carbide , Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide |
Shipping Info:
| Ship weight (kg) | 0.91 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Details:
- 61CV15
Documentation:
Product Variants
| Product | Model | Flow | Housing Material | Max. Operating Pressure | Overall Height | Overall Width | Max. Temp. | Min. Flow Rate | Max. Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1Q9GMA100NA1 | 3-50 GPM | Aluminum | 300 psi | 2 1/2" | 2" | 250°F | 3 GPM | 50 GPM | €1,091.97 | |
 |
113700-02 | 3-30 GPM | - | - | - | - | - | - | - | €304.91 | RFQ
|
 |
180110-01 | 3-32 GPM | - | - | - | - | - | - | - | €217.79 | RFQ
|
 |
A1POXXA100NC2 | - | - | - | - | - | - | - | - | €513.48 | RFQ
|
