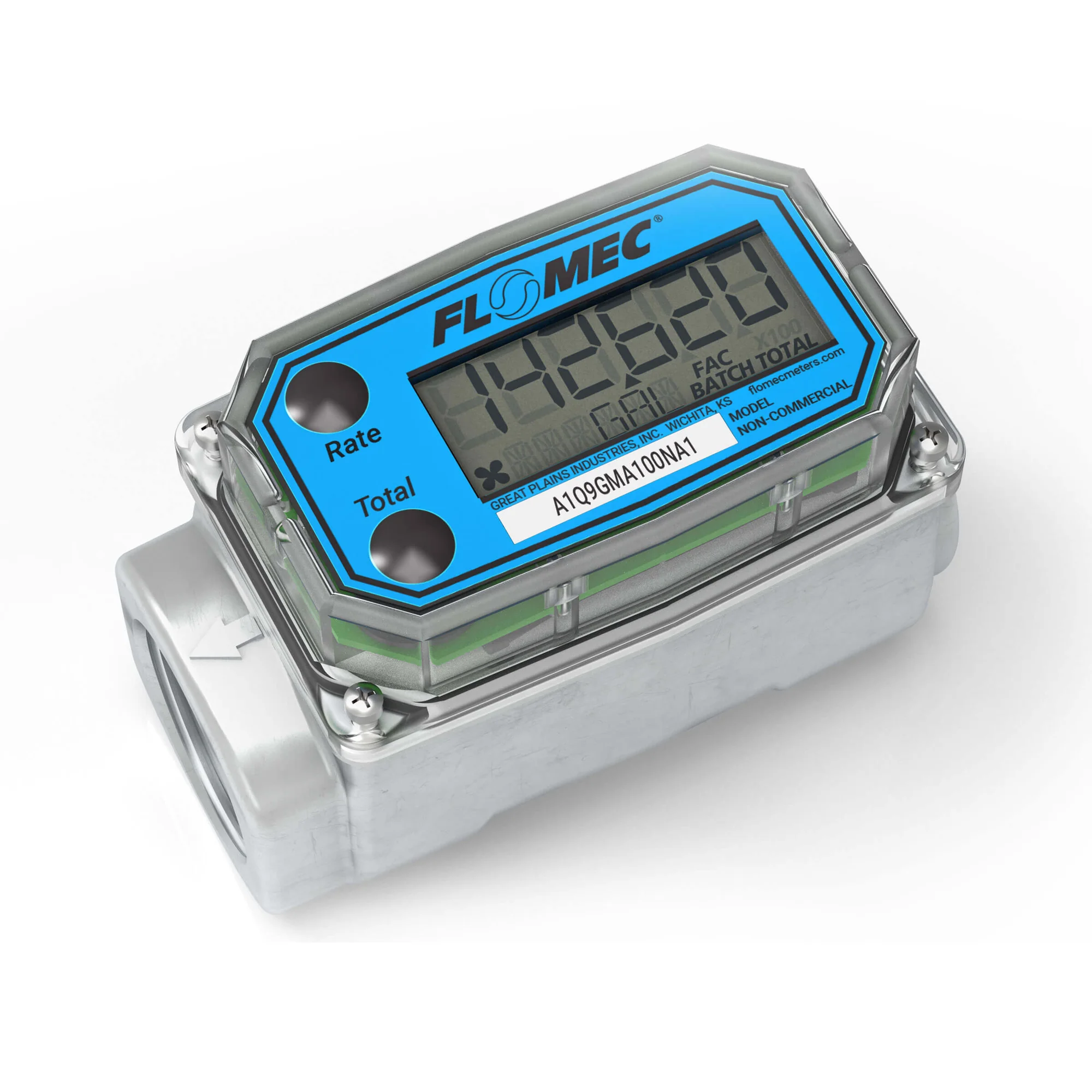

GPI A1Q9GMA100NA1 Electronic Flowmeter, Turbine, 3 to 50 gpm Flow Range, 1 FNPT
Item: CH6HERModel: A1Q9GMA100NA1Cross Ref: 61CV12
7 In Stock
Ships within 2 days via
10.00% off
€982.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Flowmeter |
| Accuracy % | -1.5% to +1.5% |
| Compatible Flow Materials | Diesel, Fuels, Petroleum Fluids |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Digital |
| Flow Material | Fuels |
| Flow Range | 3-50 GPM |
| Flow Range @ Gph | 180 To 3000 |
| Flow Ranges (gpm) | 3 To 50 |
| Flowmeter Type | Turbine |
| Fluid Temp. | 0°F to +129°F |
| Fluid Temp. Range | 0 To 129 Deg. F |
| For Pipe Size | 1" |
| Frequency (minimum) | 36.5 Hz |
| Frequency Range | 36.5-608.3 Hz |
| Housing Material | Aluminum |
| Includes Totalizer | Yes |
| Inlet/outlet Connection | 1" |
| Inlet/outlet Connection Type | FNPT |
| Max. Flow Rate | 50 GPM |
| Max. Operating Pressure | 300 psi |
| Max. Temp. | 250°F |
| Max. Viscosity | 100 cPS |
| Max. Voltage | 1.5V |
| Maximum Frequency | 608.3 Hz |
| Media Temp. Range | -40°F to +250°F |
| Media Temperature (maximum) | 250°F |
| Media Type | Fuels |
| Min. Flow Rate | 3 GPM |
| Min. Media Temperature | -40°F |
| Mounting Orientation | Universal |
| No. Of Batteries | 2 |
| Output Type | 4-20 mA |
| Overall Height | 0.9" |
| Overall Length | 3.4" |
| Overall Width | 2.1" |
| Overall Height | 2 1/2" |
| Overall Length | 4" |
| Overall Width | 2" |
| Power Source | AAA Alkaline Batteries |
| Product Type | Commercial Grade Meter |
| Pulse Rate | 999999 pulses/gal. |
| Rotor Material | Nylon |
| Shaft Material | Tungsten Carbide |
| Standards | Atex, Ce Certified, Fm Approved, Iecex |
| Termination | Not Listed |
| Unit Of Measure | Gallons, Liters |
| Voltage Range | 1.5V |
| Wetted Material | Stainless Steel, Aluminum, Ceramic, Ferrite, Nylon, Tungsten Carbide |
| Wetted Material | Aluminum, Ceramic, Nylon, Stainless Steel, Tungsten Carbide |
Shipping Info:
| Ship weight (kg) | 0.91 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Details:
- 61CV12
Product Variants
| Product | Model | Min. Flow Rate | Max. Flow Rate | Max. Operating Pressure | Max. Temp. | Frequency Range | Connection Size | Max. Viscosity | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1Q9GMN025NA1 | 0.3 GPM | 3 GPM | 150 psi | 250°F | 11-110 Hz | 1" | 100 cPS | 4" | €1,142.96 | |
|
A1Q9GMN100NA1 | 3 GPM | 50 GPM | 150 psi | 140°F | 36.5-608.3 Hz | 1" | 100 cPS | 4" | €923.53 |
