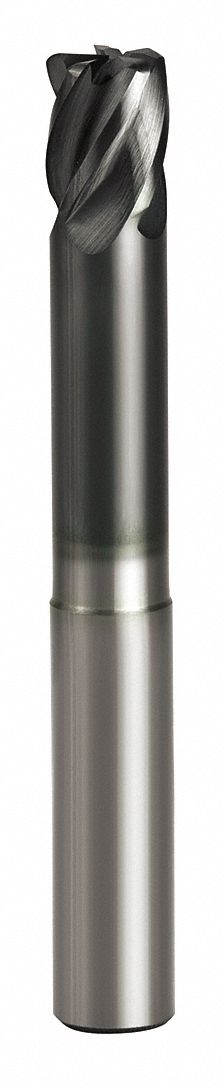

GORILLA MILL GMNR12R50602.250 10723 Carbide End Mill, 4 Inch Length, 5 Flute, Neck Relieved, Radius End
0.06"
0.5"
5
0.625"
Get it by Tuesday, Sep 1
€182.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Carbide End Mill |
| Coating | GMX-35 |
| Corner Radius | 0.06" |
| Cut Dia. Tolerance | -0.002" to 0" |
| Cutting Direction | Right Hand |
| Cutting Length | 1 1/4" |
| Cutting Type | Center |
| D1 Cutting Dia. | 0.5" |
| D2 Shank Dia. | 0.5" |
| Dimensions Type | Fractional Inch |
| End Mill Style | Corner Radius |
| End/corner Shape | Radius |
| Grade | Grade C2 |
| Length Of Cut | 0.625" |
| Length Of Cut Tolerance | 0.025" to 0.05" |
| Length Of Relief | 2.25" |
| List Number | GMNR12R50602.250 |
| Lor | 2 1/4" |
| Machining Methods | Profiling, Pocketing, High-velocity |
| Material | Carbide |
| Milling Dia. | 1/2" |
| Neck Length | 2.25 mm |
| No. Of Flutes | 5 |
| Overall Length | 4" |
| Overall Length Tolerance | -0.05" to +0.05" |
| Performance | High Performance |
| Shank Dia. Tolerance | -0.0001" to -0.0005" |
| Shank Style | Neck Relieved |
| Tool Length | Standard |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 8207701000 |
| Country of Origin | US |
Product Details:
- Single End/Double End (Single End)
Product Variants
| Product | Model | Cutting Length | Milling Dia. | Material Grade-machining | Shank Dia. | Primary Material Application Iso Code | Shank Type-machining | Neck Length | Length Of Cut Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GM12B4 | 1 1/4" | 1/2" | Micrograin | 1/2" | K, M, P, S | Weldon Flat | - | 0.025" to 0.05" | €116.57 | |
 |
GM12B4WF | 1 1/4" | 1/2" | Micrograin | 1/2" | K, M, P, S | Weldon Flat | - | 0.025" to 0.05" | €116.57 | |
 |
GM12F4 | 1 1/4" | 1/2" | - | 1/2" | M, P, S | - | - | 0.025" to 0.05" | €98.99 | |
 |
GM12F4WF | 1 1/4" | 1/2" | Grade C2 Micro Grain | - | - | - | - | 0.025" to 0.05" | €138.57 | |
 |
GM0300MMR4050 | 0.469" | 3 mm | Micrograin | - | - | - | - | 0.635 mm to 1.27 mm | €44.31 | |
|
GM0400MMF4 | 0.469" | 5/32" | Grade C2 Micro Grain | - | - | - | - | 0.635 mm to 1.27 mm | €59.51 | |
|
GM0400MMR4030 | 0.469" | 4 mm | Micrograin | - | - | - | - | 0.635 mm to 1.27 mm | €53.21 |
