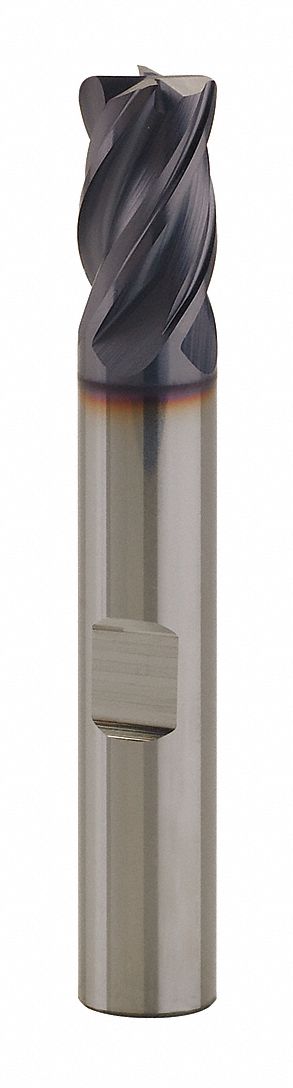

GORILLA MILL GM58RS4120WF 10577 Carbide End Mill, 3-1/2 Inch Length, 4 Flute, Weldon Flat, Radius End
0.12"
0.625"
0.75"
Get it by Monday, Aug 24
€223.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Carbide End Mill |
| Coating | GMX-35 |
| Corner Radius | 3/25" |
| Cut Dia. Tolerance | -0.002" to 0" |
| Cutting Direction | Right Hand |
| Cutting Length | 3/4" |
| Cutting Type | Center |
| D1 Cutting Dia. | 0.625" |
| D2 Shank Dia. | 0.625" |
| Dimensions Type | Fractional Inch |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End/corner Shape | Radius |
| Finish-machining | Gmx-35 |
| Grade | Grade C2 |
| Helix Angle | Variable |
| Length Of Cut Tolerance | 0.025" to 0.05" |
| List Number | GM58RS4120WF |
| Machining Methods | Profiling, Pocketing, High-velocity |
| Material | Carbide |
| Material Grade-machining | Micrograin |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Milling Dia. | 5/8" |
| No. Of Flutes | 4 |
| Overall Length | 3 1/2" |
| Overall Length Tolerance | -0.05" to +0.05" |
| Performance | High Performance |
| Shank Dia. Tolerance | -0.0001" to -0.0005" |
| Shank Style | Weldon Flat |
| Single End/double End | Single End |
| Tool Length | Stub |
Shipping Info:
| Ship weight (kg) | 0.53 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 2.54 |
| HS code | 8207701000 |
| Country of Origin | US |
Product Details:
- Single End/Double End (Single End)
