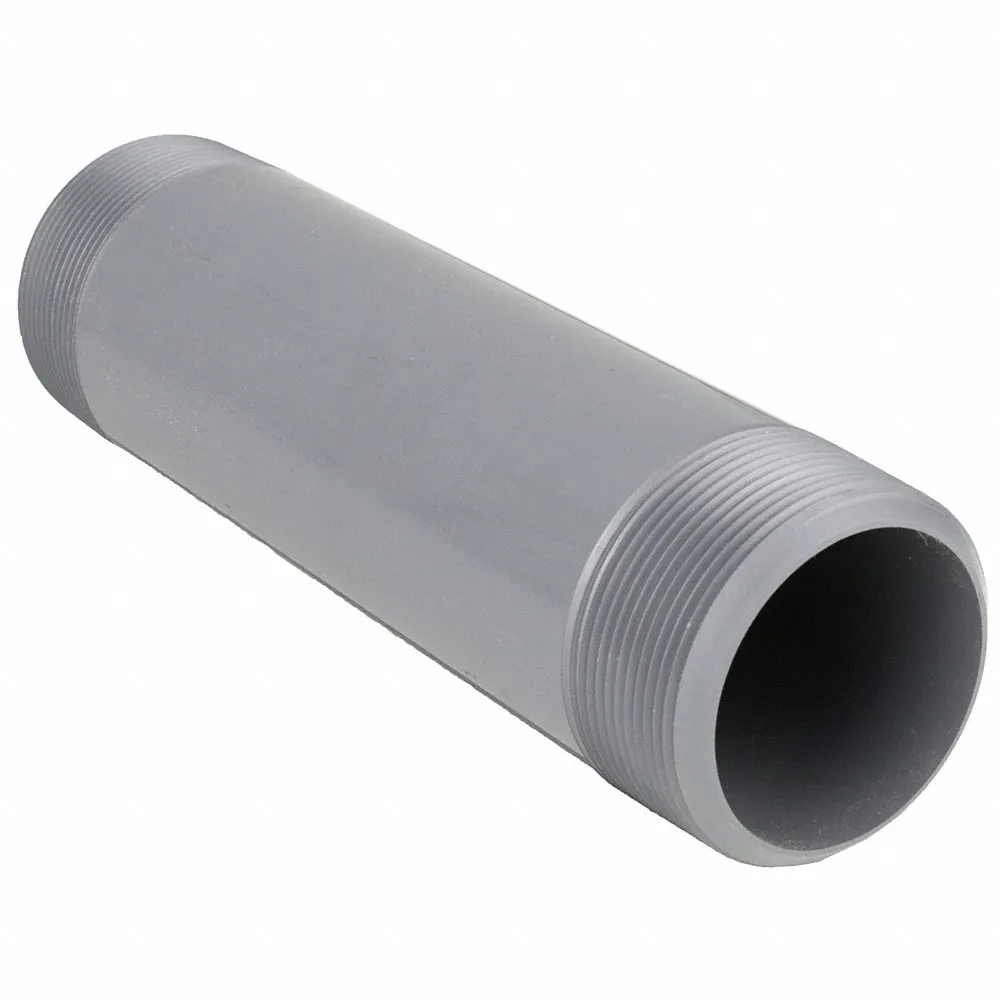

GEORG FISCHER 861-299 Nipple 2-1/2 Inch Threaded PVC
Get it by Wednesday, Aug 26
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€50.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Nipple |
| Application | Non-Potable Water, Potable Water |
| Color | Gray |
| Connection Type | Threaded On Both Ends |
| Fitting Compatibility | Schedule 80 |
| Gravity Flow | No |
| Length | 10" |
| Material | PVC |
| Max. Operating Pressure | 210 psi , 210 psi @ 73°F |
| Max. Temp. | 140°F |
| Min. Operating Temp. | 32°F |
| Nominal Pipe Size | 2 1/2" |
| Outside Dia. | 2 7/8" |
| Overall Length | 10" |
| Pipe Size | 2 1/2" |
| Schedule | 80 |
| Side A Connection Type | Threaded |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Side B Connection Type | Threaded |
| Side B Gender | Male |
| Side B Thread Type | Npt |
| Thread Configuration | Threaded On Both Ends |
| Type | Pipe Nipple |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Model | Pipe Size | Max. Operating Pressure | Connection Type | Outside Dia. | Type | Nominal Pipe Size | Schedule | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 861-291 | 2 1/2" | 210 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €24.99 | |
| 861-292 | 2 1/2" | 210 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €26.64 | |
| 861-295 | 2 1/2" | 160 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €32.77 | |
| 861-296 | 2 1/2" | 145 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €34.63 | |
| 861-297 | 2 1/2" | 140 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €40.81 | |
| 861-298 | 2 1/2" | 125 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €44.40 | |
| 861-300 | 2 1/2" | 115 psi @ 73°F | Threaded | 2 7/8" | Threaded | 2 1/2" | 80 | 140°F | €63.20 |
