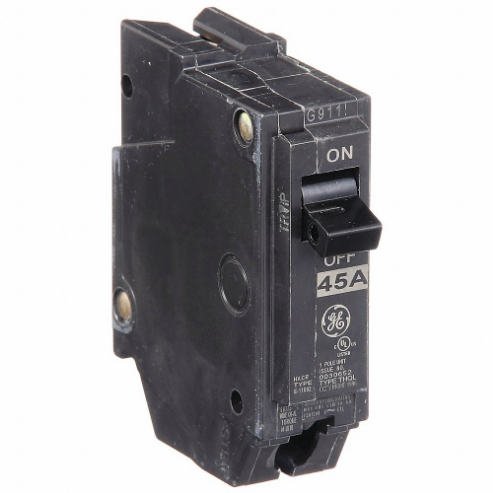

GENERAL ELECTRIC THQL1145 Plug On Circuit Breaker, Single Pole, 10kAIC at 120 / 240V
Item: CE6KMAModel: THQL1145Cross Ref: 3HXJ9
7 In Stock
Ships within 2 days via
10.00% off
€14.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature Circuit Breaker |
| Ac Voltage Rating | 120/240V AC |
| Amps | 45A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | Series AQ |
| Dc Voltage Rating | Not Rated |
| Depth | 2.38" |
| For Use With | Power Mark Gold Load Centers And Aq Lighting Panels |
| Frame Size | 100A, THQ |
| Frame Type | THQL |
| Length | 3.28" |
| Max. Air Rating | 10 kA At 120/240V AC |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 8 AWG |
| Number Of Poles | 1 |
| Phase | Single |
| Terminal Connection | Lug |
| Voltage Type | AC |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.05 |
| Ship length (cm) | 8.33 |
| Ship width (cm) | 2.54 |
Product Details:
- GE THQL1145 Q-Line Series circuit breaker designed for limiting let-through currents for providing protection to downstream components in power distribution applications
- Features plug-in design with load-side lug terminals for ease-of-installation & wiring
- Non-interchangeable thermal magnetic trip offers both long time & instantaneous trip functions
- UL-listed
Product Variants
| Product | Model | Accessory Type | Price | |
|---|---|---|---|---|
 |
THQLRK1 | Retainer | €17.85 | |
 |
THQLRK2 | Retainer | €15.61 | |
 |
THQLRK3 | Retainer | €15.96 | |
 |
THHQL1115 | - | €35.09 | |
 |
THHQL1115AF | - | €141.13 | RFQ
|
 |
THHQL1115GF | - | - | RFQ
|
|
THHQL1115GFT | - | €277.90 |
