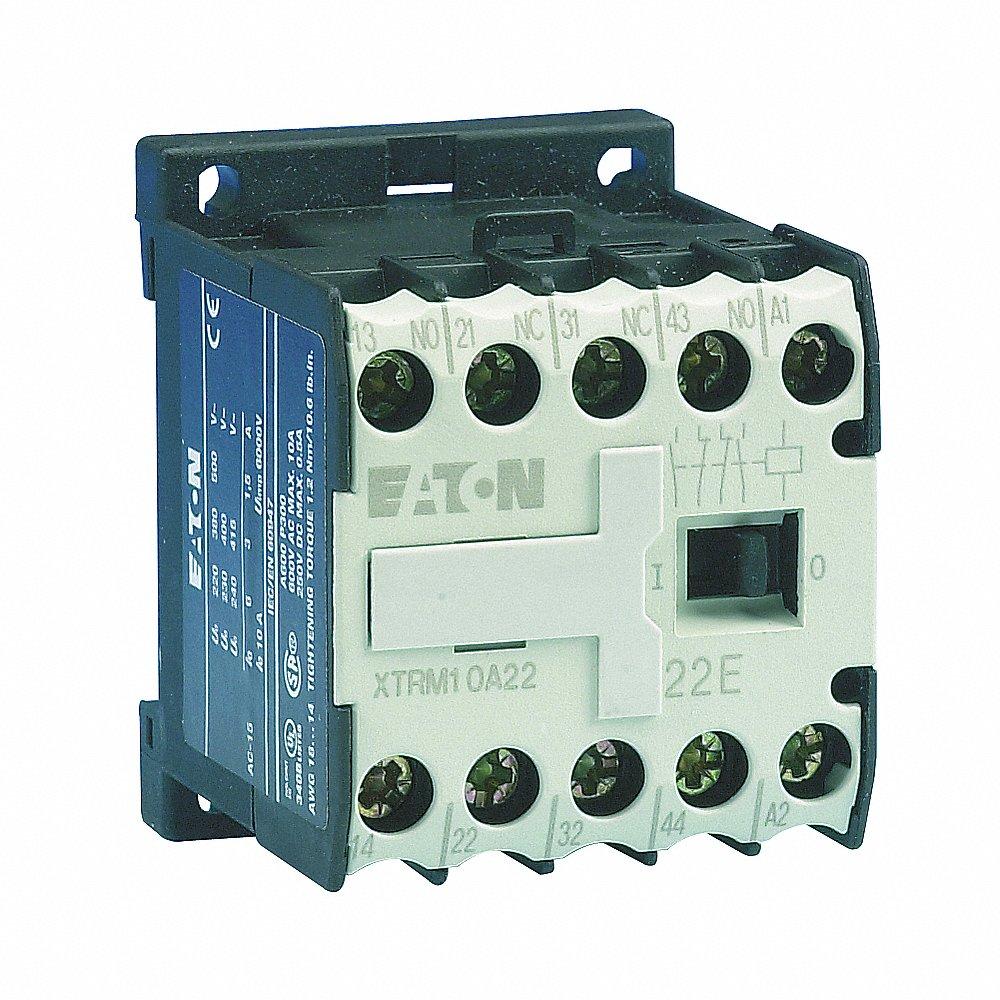

EATON XTRM10A22A IEC Mini Control Relay, 120 VAC, 10 A, 2NO/2NC, Miniature Frame
Item: CJ2NWCModel: XTRM10A22ACross Ref: 4WXN1
7 In Stock
Ships within 2 days via
10.00% off
€100.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Control Relay |
| Body Depth | 2.05" |
| Body Height | 2" |
| Body Width | 1.77" |
| Coil Voltage | 110/120V AC |
| Contact Form | 2NO/2NC |
| Contact Material | Silver Tin Oxide Alloy |
| Contact Rating (ac) | 6A @ 240V |
| Contact Rating (dc) | 2.5A @ 24V |
| Current Rating | 10A |
| Electrical Connection Type | Screw |
| Features | Finger Safe, Miniature Frame |
| Frequency | 50/60 Hz |
| Input Voltage | 110/120V AC |
| Ip Rating | IP20 |
| Maximum Operating Temperature | 122°F |
| Mechanical Operating Durability (ac) | 10000000 |
| Mechanical Operating Durability (dc) | 20000000 |
| Minimum Operating Temperature | -13°F |
| No. Of Terminals | 10 |
| Power Consumption | 3.9 VA |
| Relay Frame Size | Miniature |
| Relay Mounting Style | Din-Rail |
| Relay Style | IEC |
| Response Time | 14 ms to 21 ms (Closing Delay), 8 ms to 18 ms (Opening Delay), 45 ms (Closing Delay With Auxiliary Contact) |
| Series | XTRM MINI CONTROL RELAYS Series |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 6.35 |
| Country of Origin | DE |
Product Variants
| Model | Frame Size | Resistive Contact Amp Rating | Contact Material | Ip Rating | Price | |
|---|---|---|---|---|---|---|
| XTRM10A22T | 45 mm | 10A | Silver Tin Oxide Alloy | IP20 | €112.01 | |
| XTRE10B22A | 45 mm | 16A | Silver Tin Oxide Alloy | IP20 | €147.62 | |
| XTRE10B22E | 45 mm | 16A | Silver Tin Oxide Alloy | IP20 | €147.62 | |
| XTRE10B40A | 45 mm | 16A | Silver Tin Oxide Alloy | IP20 | €156.08 | |
| XTRE10B22B | 45 mm | 16A | Silver Tin Oxide Alloy | IP20 | €147.62 | |
| XTRM10A40C | 45 mm | 10A | Silver Tin Oxide Alloy | IP20 | €120.31 | |
| XTRM10A40B | 45 mm | 10A | Silver Tin Oxide Alloy | IP20 | €120.31 |
