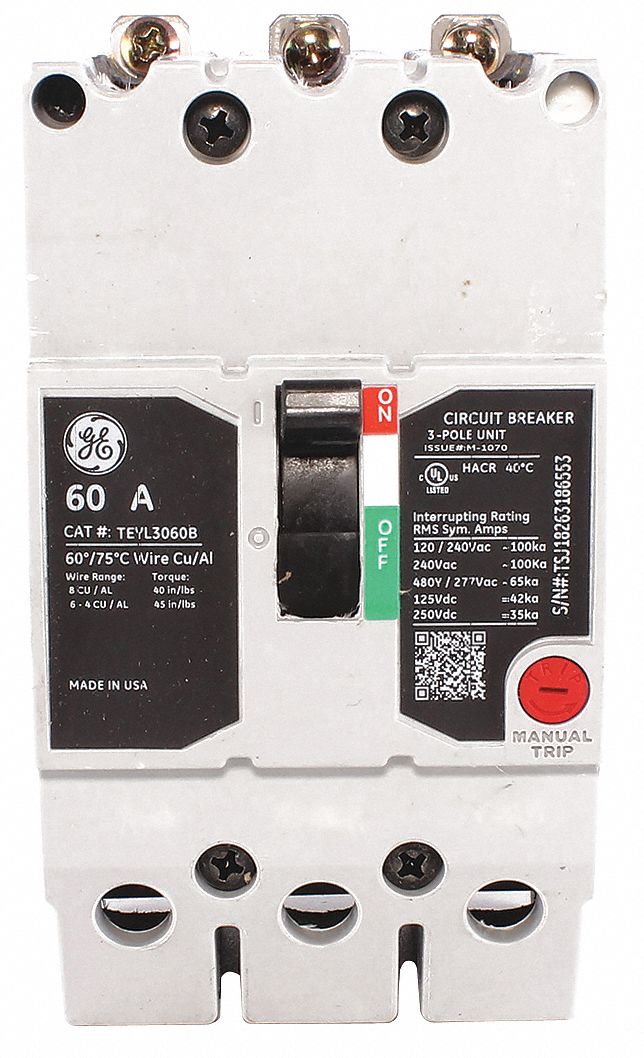

GENERAL ELECTRIC TEYL3060B Circuit Breaker 60a 3p 277/480vac 65ka
Item: AG2VJJModel: TEYL3060BCross Ref: 32HZ61
7 In Stock
Ships within 2 days via
10.00% off
€2,857.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Amps | 60A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 3" |
| For Use With | Ge As Lighting Panels |
| Frame Size | 125A/TEY |
| Height | 5 1/5" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 65kA |
| Max. Air Rating | 65 kA At 277/480V AC |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 10 AWG |
| Mounting | Bolt On Panelboard |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | TEY Series |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Amps | Ac Voltage Rating | Phase | Phase Connection | Frame Size | Min. Wire Size | Terminal Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEY1100 | 1 | 100A | 277/480V AC | Single | Any | - | 4 AWG | Lug | €557.19 | |
| TEY115 | 1 | - | 277V AC | - | - | TEY | 14 AWG | Screw Clamp | €324.83 | |
| TEY120 | 1 | 20A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €150.64 | |
| TEY125 | 1 | 25A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €324.81 | |
| TEY130 | 1 | 30A | 277/480V AC | Single | Any | - | 14 AWG | Screw Clamp | €324.83 | |
| TEY135 | 1 | 35A | 277/480V AC | Single | Any | - | 10 AWG | Lug | €353.89 | |
| TEY140 | 1 | 40A | 277V AC | - | - | TEY | 10 AWG | Lug | €324.83 |
