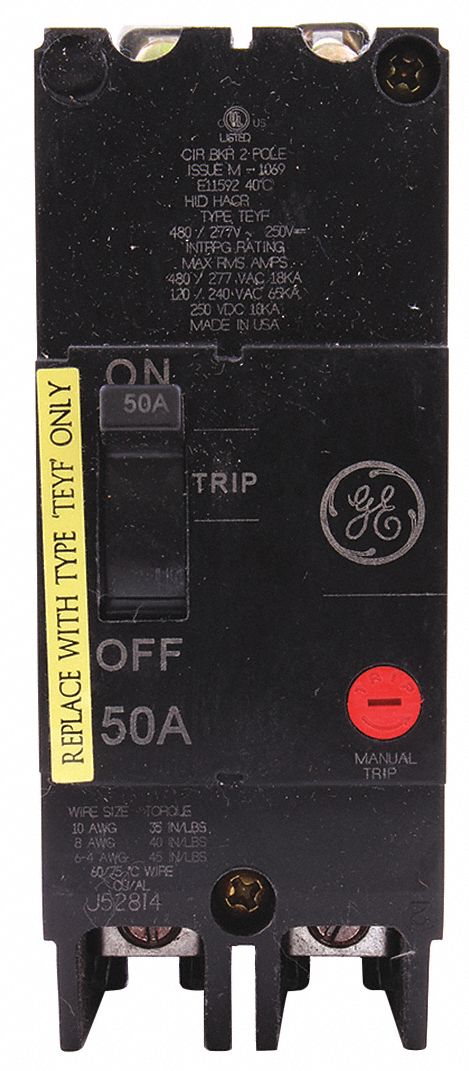

GENERAL ELECTRIC TEYF250 Circuit Breaker 50a 2p 277/480vac 18ka
Item: AG2VKJModel: TEYF250Cross Ref: 32HZ84
7 In Stock
Ships within 2 days via
10.00% off
€1,053.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Amps | 50A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 3" |
| For Use With | Ge Ae Lighting Panels |
| Frame Size | 125A, TEY |
| Height | 5.07" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 18kA |
| Max. Air Rating | 18 kA At 277/480V AC |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 10 AWG |
| Mounting | Bolt On Panelboard |
| Number Of Poles | 2 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | TEY Series |
| Standards | Csa, Ul |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Trip Type | Thermal Magnetic |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 20.96 |
| Ship width (cm) | 15.24 |
| HS code | 8536200020 |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | Number Of Poles | Ac Voltage Rating | Amps | Min. Wire Size | Terminal Connection Type | Dc Voltage | Dc Voltage Rating | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEYF115 | 1 | 277V AC | 15A | 14 AWG | Screw Clamp | 125V DC | 125V DC | 10 AWG | €791.63 | |
| TEYF120 | 1 | 277V AC | 20A | 14 AWG | Screw Clamp | 125V DC | 125V DC | 10 AWG | €768.69 | |
| TEYF125 | 1 | 277V AC | 25A | 14 AWG | Screw Clamp | 125V DC | 125V DC | 10 AWG | €791.63 | |
| TEYF130 | 1 | 277V AC | 30A | 14 AWG | Screw Clamp | 125V DC | 125V DC | 10 AWG | €768.69 | |
| TEYF135 | 1 | 277V AC | - | 10 AWG | Lug | 125V DC | 125V DC | 4 AWG | €775.16 | |
| TEYF140 | 1 | 277V AC | 40A | 10 AWG | Lug | 125V DC | 125V DC | 4 AWG | €791.63 | |
| TEYF145 | 1 | 277V AC | 45A | 10 AWG | Lug | 125V DC | 125V DC | 4 AWG | €791.63 |
