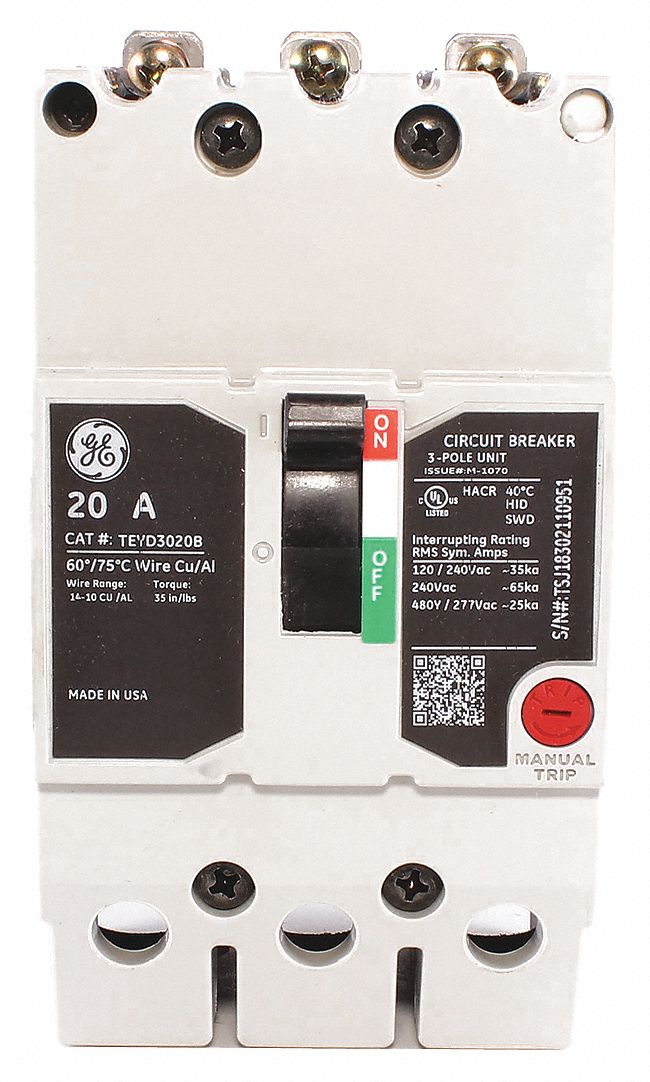

GENERAL ELECTRIC TEYD3020B Circuit Breaker 20a 3p 277/480vac 25ka
Item: AG2VGUModel: TEYD3020BCross Ref: 32HZ24
7 In Stock
Ships within 2 days via
5.00% off
€771.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On Panelboard |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V AC , Not Rated |
| Depth | 3" |
| For Use With | Ge As Lighting Panels |
| Frame Size | 125A, TEY |
| Height | 5 1/5" |
| Instantaneous Trip | Fixed |
| Max. Air Rating | 25kA |
| Max. Air Rating | 25 kA At 277/480V AC |
| Max. Wire Size | 10 AWG |
| Min. Wire Size | 14 AWG |
| Mounting | Bolt On Panelboard |
| No. Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | TEY Series |
| Terminal Connection | Lug |
| Terminal Connection Type | Screw Clamp |
| Trip Type | Thermal Magnetic |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8536200020 |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Model | No. Of Poles | Amps | Phase | Dc Voltage | Min. Wire Size | Terminal Connection Type | Max. Air Rating | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TEYD1015B | 1 | 15A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277V AC | 10 AWG | €291.41 | |
| TEYD1020B | 1 | 20A | 1 | Not Rated | 14 AWG | Screw Clamp | 25 kA At 277V AC | 10 AWG | €291.41 | |
| TEYD1025B | 1 | 25A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €310.66 | |
| TEYD1030B | 1 | 30A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €291.41 | |
| TEYD1035B | 1 | 35A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €310.66 | |
| TEYD1040B | 1 | 40A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €291.41 | |
| TEYD1045B | 1 | 45A | 1 | Not Rated | 10 AWG | Lug | 25 kA At 277V AC | 4 AWG | €810.68 |
