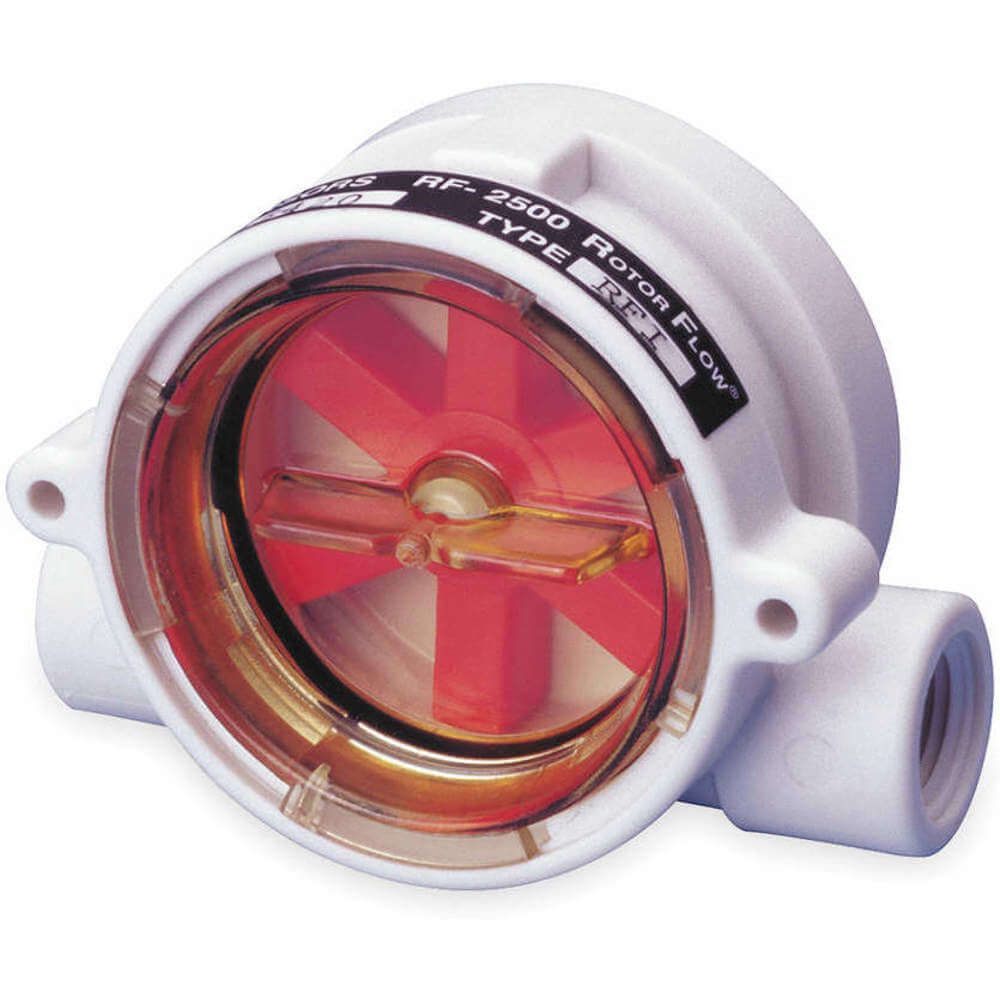

GEMS SENSORS RFI 155420 Flow Rate Indicator Rotor 5 Gpm Max
Item: AA8WVBModel: RFI 155420Cross Ref: 1AMD5
7 In Stock
Ships within 2 days via
5.00% off
€153.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flow Rate Indicator |
| Body Material | Polypropylene |
| Connection Size | 1/4" |
| Connection Type | FNPT |
| Fitting | Polypropylene |
| Fitting Material | Polypropylene |
| Flow | 0.5-5 GPM |
| Flow Direction | Horizontal Left, Horizontal Right |
| Flow Rate | 0.5-5 GPM |
| Flowmeter Type | Rotor |
| Fluid Connection | 1/4" FNPT |
| Fluid Temp. | -20°F to +180°F |
| For Pipe Size | 1/4" |
| Gpm Max. | 5 |
| Housing Material | Polypropylene |
| Included | Low Flow Adapter |
| Indicator | Rotor |
| Indicator Type | Rotor |
| Length | 3.1" |
| Max. Flow Rate | 5 GPM |
| Max. Gpm | 5 GPM |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 100 psi |
| Max. Pressure | 100 psi, 40 psi |
| Max. Temp. | 180°F |
| Max. Viscosity | 200 SUS |
| Media Temp. | -20°F to +180°F |
| Min. Flow Rate | 0.5 GPM |
| Min. Media Temp. | -20°F |
| No. Of Windows | 1 |
| Number Of Windows | 1 |
| O-ring | Buna |
| O-ring Material | Buna N |
| Overall Height | 2 3/8" |
| Overall Length | 3.1" |
| Overall Width | 1 2/5" |
| Seal Material | Buna N |
| Series | RFI Series |
| Sight Dia. | 1.7" |
| Sight Material | Polysulfone |
| Type | Rotor |
| Wetted Material | Buna N, Ceramic, Polypropylene, PPS, PSU |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 6.35 |
| HS code | 9026104000 |
| Country of Origin | US |
Product Variants
| Model | Max. Flow Rate | Flow | Min. Flow Rate | Housing Material | Flow Rate | Max. Media Temp. | For Pipe Size | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RFI 155480 | 20 GPM | 4-20 GPM | 4 GPM | Polypropylene | 4-20 GPM | 180°F | 1/2" | -20°F to +180°F | €167.32 | |
| RFI 142541 | 5 GPM | 0.5-5 GPM | 0.5 GPM | Brass | 0.5-5 GPM | 212°F | 1/4" | -20°F to +212°F | €387.72 | |
| RFI 142542 | 20 GPM | 4-20 GPM | 4 GPM | Brass | 4.0-20 GPM | 212°F | 1/2" | -20°F to +212°F | €425.08 | |
| RFI 180392 | 30 GPM | 0.5-5 GPM | 0.5 GPM | Brass | 0.5-5 GPM | 212°F | 3/4" | -20°F to +212°F | €433.52 | |
| RFI 181681 | 60 GPM | 8-60 GPM | 8 GPM | Brass | 8-60 GPM | 212°F | 1" | -20°F to +212°F | €429.72 |
