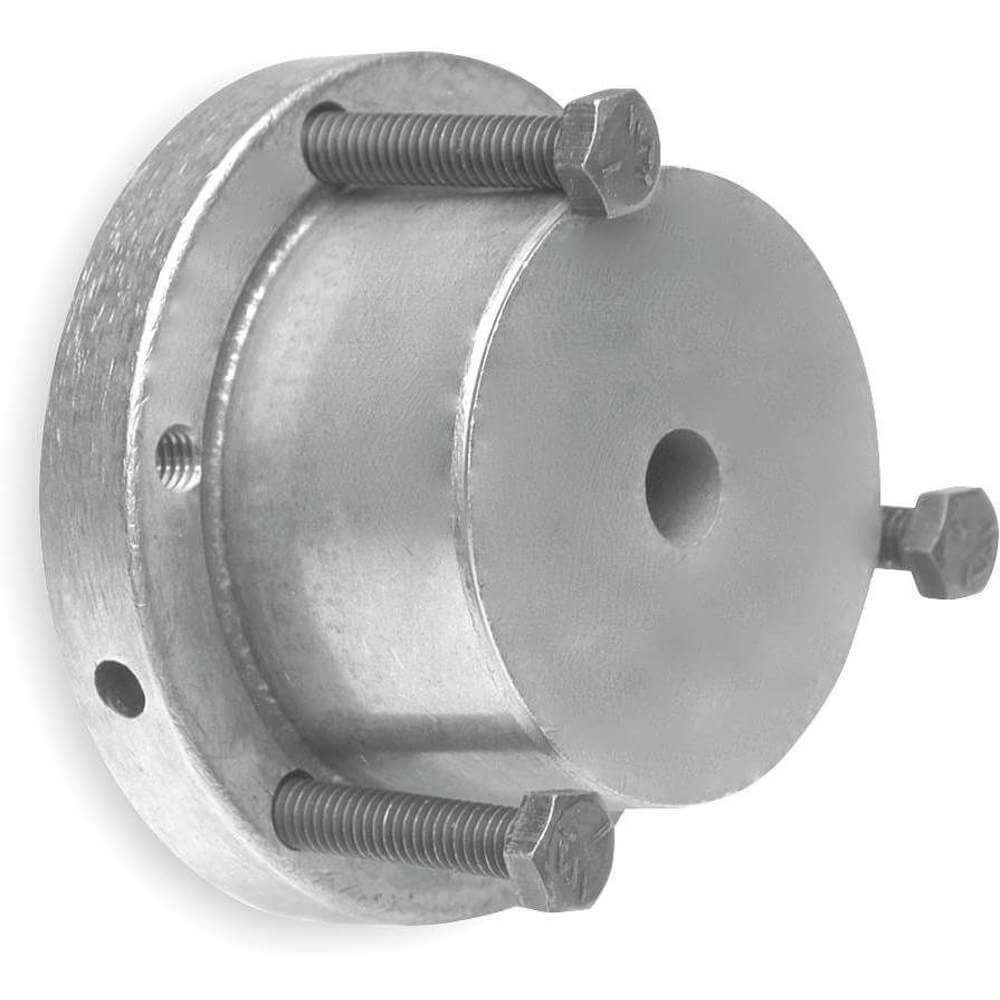

GATES F 2 1/2 Bushing Series F Bore Diameter 2.500 In
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€426.09 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 5 5/8" |
| Bolt Circle Diameter | 5.63" |
| Bolt Size | 9/16"-12 x 3 5/8" |
| Bore Bushing Series | F |
| Bore Dia. | 2 1/2" |
| Bore System Of Measurement | Inch |
| Bushing Type | Quick Detachable |
| Flange Thickness | 13/16" |
| Flange Type | Split |
| For Shaft Type | Keyed |
| Includes | (3) Cap Screws |
| Keyway Depth | 5/16" |
| Keyway Width | 5/8" |
| Large Barrel Diameter | 4.438" |
| Length | 3 3/4" |
| Length Less Flange | 2.813" |
| Material | Steel |
| Maximum Torque | 40000 lbs.-in. |
| Overall Diameter | 6.625" |
| Overall Length | 3.625" |
| Sae Grade | Grade 5 |
| Series | F Series |
| Taper | 3/4 in Per ft |
Shipping Info:
| Ship weight (kg) | 6.93 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 18.03 |
| HS code | 8483902000 |
| Country of Origin | US |
