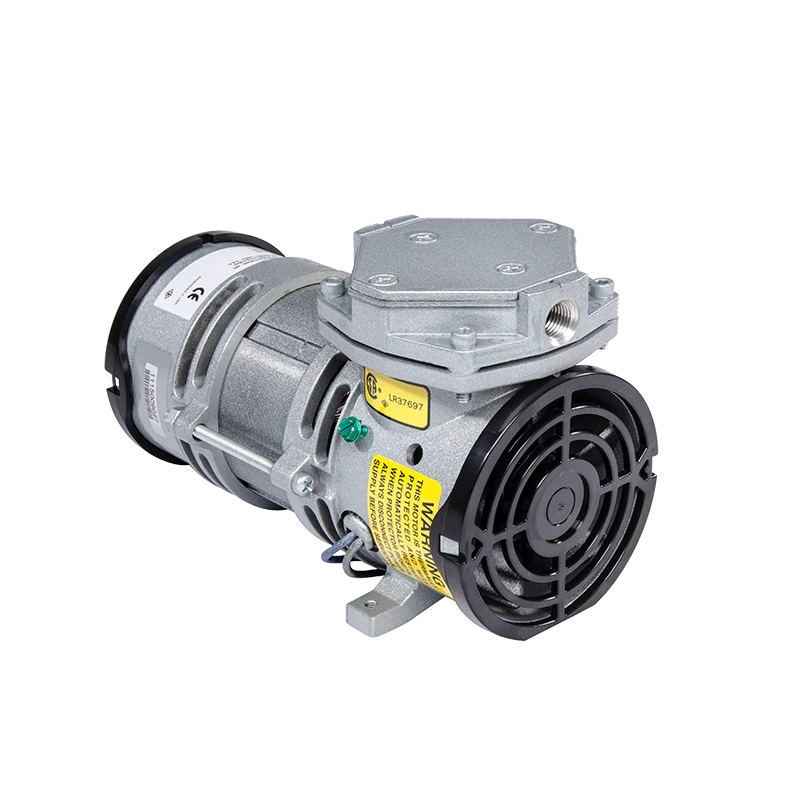

GAST MOA-P108-FB Diaphragm Pump, 1/8 HP, 3.45 Bar Max Pressure
Get it by Monday, Aug 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Diaphragm Pump |
| Duty Cycle | 100% |
| Flow @ 50 Hz | 0.7 CFM |
| Flow @ 60 Hz | 0.8 CFM |
| Max. Pressure | 50 psi |
| Product Datasheet | gast-moa-p108-fb.pdf |
| Voltage | 110/115V |
Shipping Info:
| Ship weight (kg) | 2.39 |
| Ship height (cm) | 15.82 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 12.75 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Voltage | Duty Cycle | Flow @ 60 Hz | Flow @ 50 Hz | Max. Pressure | Flow Dc | Amps Running | Max. Vacuum @ 60 Hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MOA-P101-CD | 220/230V | 100% | 0.5 CFM | 0.4 CFM | 50 psi | 0.8 CFM | - | - | €533.93 | |

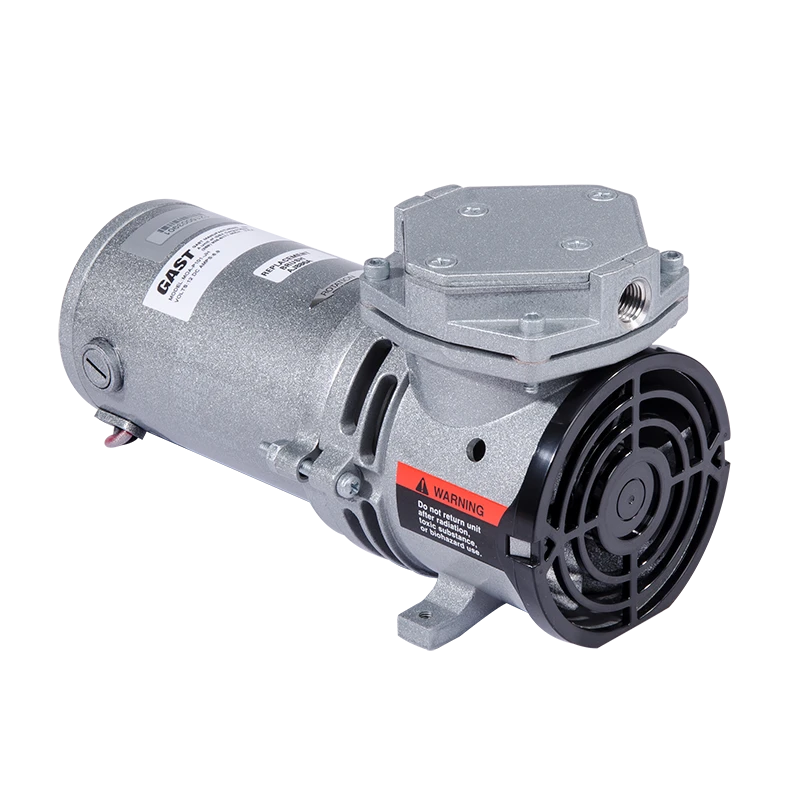

| MOA-P101-JK | 24V | 100% | - | - | 50 psi | - | 3.2A | - | - | RFQ
|
| MOA-P108-FD | 220/230V | 100% | 0.8 CFM | 0.7 CFM | 50 psi | - | - | - | - | RFQ
|
| MOA-P108-HB | 110/115V | 100% | 0.5 CFM | 0.4 CFM | 50 psi | 0.8 CFM | - | - | - | RFQ
|
| MOA-V111-CD | 220/230V | 100% | 0.5 CFM | 0.4 CFM | - | 0.8 CFM | - | 24 in. hg | €572.86 | |
| MOA-V112-FD | - | 100% | - | - | - | - | - | - | - | RFQ
|
| MOA-V113A-AE | - | 100% | - | - | - | - | - | - | - | RFQ
|
