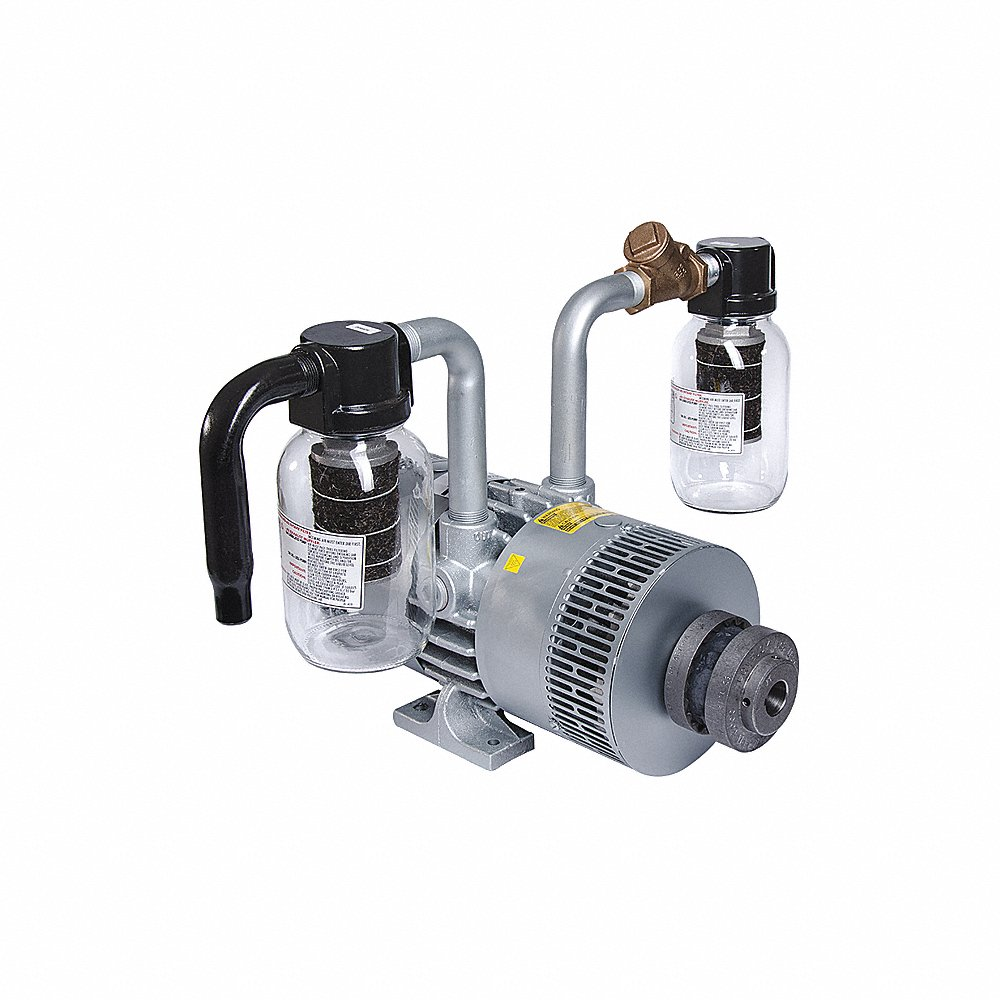

GAST 6066-V103 Vacuum Pump, 5 hp, 55 cfm, 25 Inch Heightg Max Vacuum, 15 psi Max Continuous Pressure
Get it by Tuesday, Dec 23
10.00% off
€4,748.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vacuum Pump |
| Bearing Type | Shielded Ball |
| Compressor/pump Enclosure Material | Grey Iron |
| Duty | Continuous |
| Duty Cycle | 100% |
| Environment | Laboratory Environment, Medical Environment |
| Filter Element Material | Wool Felt |
| Flow @ 60 Hz | 55 CFM |
| Flow? @ 50 Hz | 45 CFM |
| Fluid Compatibility | Air |
| Free Air Flow Rate | 45/55 CFM |
| Frequency | 50/60 Hz |
| Housing Material | Grey Iron |
| Hp | 5 hp |
| Includes | Check Valve, Coupling, Filter, Muffler |
| Inlet Gender | Female |
| Inlet Size | 1" |
| Inlet Type | NPT |
| Life Expectancy | 4000 hrs. |
| Max. Continuous Pressure | 15 psi |
| Max. Operating Temp. | 104°F |
| Max. Pressure | 15 psi |
| Max. Rpm | 1750 RPM |
| Max. Vacuum | 25 in. hg |
| Max. Vacuum @ 50 Hz | 25 in. hg |
| Maximum Intermittent Pressure | 15 psi |
| Maximum Pressure | 15 psi |
| Min. Operating Temp. | 33.8°F |
| Outlet Gender | Female |
| Outlet Size | 1" |
| Outlet Type | NPT |
| Overall Height | 17.05" |
| Overall Length | 16.22" |
| Overall Width | 16.69" |
| Power Output | 5 hp |
| Power Source | _Separate Drive |
| Product Datasheet | gast-6066-v103.pdf |
| Pump Type | Rotary Vane |
| Series | GAST Series |
| Sound Level | 90 dBA |
| Thermal Protection | No |
| Vanes | 4 |
| Wattage | 3.73 kW |
| Weight | 92 lbs. |
Shipping Info:
| Ship weight (kg) | 45 |
| Ship height (cm) | 119.38 |
| Ship length (cm) | 116.84 |
| Ship width (cm) | 121.92 |
| Country of Origin | US |
