GAST 1UP-NRV-3A Skid Air Motor, 0.42 HP Max Power, 5.6 bar Max Pressure
Item: CP6HQYModel: 1UP-NRV-3ACross Ref: 33K706
7 In Stock
Ships within 2 days via
10.00% off
€423.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Motor |
| Air Consumption | 27 CFM |
| Air Inlet Port | 1/8" |
| Air Inlet Port Type | NPT |
| Alternate Part Number | 1UP-NRV-15 |
| Bearing Protection | Not Applicable |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 21/50 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | Not Applicable |
| Keyway Length | Not Applicable |
| Keyway Type | Not Applicable |
| Keyway Width | Not Applicable |
| Length Less Shaft | 3.55" |
| Manufacturers Warranty Length | 1 yr. |
| Max Sound Level | 78 dBA |
| Max. Air Consumption | 27 CFM |
| Max. Flow Rate | 27 CFM |
| Max. Pressure | 81.22 psi |
| Max. Speed | 6000 RPM |
| Max. Torque | 6 lbs.-in. |
| Maximum Ambient Temperature | 248°F |
| Maximum Operating Pressure | 80 psi |
| Minimum Ambient Temperature | 34°F |
| Minimum Flow Rate | 5 CFM |
| Motor Design | Air |
| Mount | Hub |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mount Type | Hub |
| Mounting Orientation | Any Angle |
| No Load Speed | 6000 RPM |
| Number Of Vanes | 4 |
| Output Power | 9/20 hp |
| Output Shaft Type | Flat |
| Outside Diameter | 2 1/2" |
| Overall Height | 2 1/4" |
| Overall Length | 4 3/4" |
| Overall Width | 2 1/2" |
| Port Size | 1/8" |
| Port Type | NPT |
| Product Datasheet | gast-1up-nrv-10.pdf |
| Rotation | Reversible |
| Series | 1Up Series |
| Shaft Diameter | 3/8" |
| Shaft Length | 1 1/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Shaft Size | 0.38" |
| Standards | Atex |
| Starting Torque | 5 lbs.-in. |
| Starting Torque @ 80psi | 5 lbs.-in. |
| System Of Measurement | Imperial |
| Torque @ Max Pressure | 4.9 lbs.-in. |
| Torque Max Speed | 0.59 N-m |
| Torque Max. Speed | 5.25 lbs.-in. |
| Type | NPT |
| Vanes | 4 |
| Weight | 3 lbs. |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 9.91 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Rotation | Torque @ Max Pressure | Max. Flow Rate | No Load Speed | Shaft Length | Housing Material | Max. Speed | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1UP-NCC-1A | Counter Clockwise | 4.9 lbs.-in. | 27 CFM | 6000 RPM | 1 1/8" | Cast Iron | 6000 RPM | 6 lbs.-in. | €591.03 | |
| 1UP-NRV-4 | Reversible | 4.9 lbs.-in. | 27 CFM | 6000 RPM | 1 1/8" | Cast Iron | 6000 RPM | 6 lbs.-in. | €627.57 | |
| 1UP-NRV-10 | Reversible | 4.9 lbs.-in. | 27 CFM | 6000 RPM | 1 1/8" | Cast Iron | 6000 RPM | 6 lbs.-in. | €613.18 | |

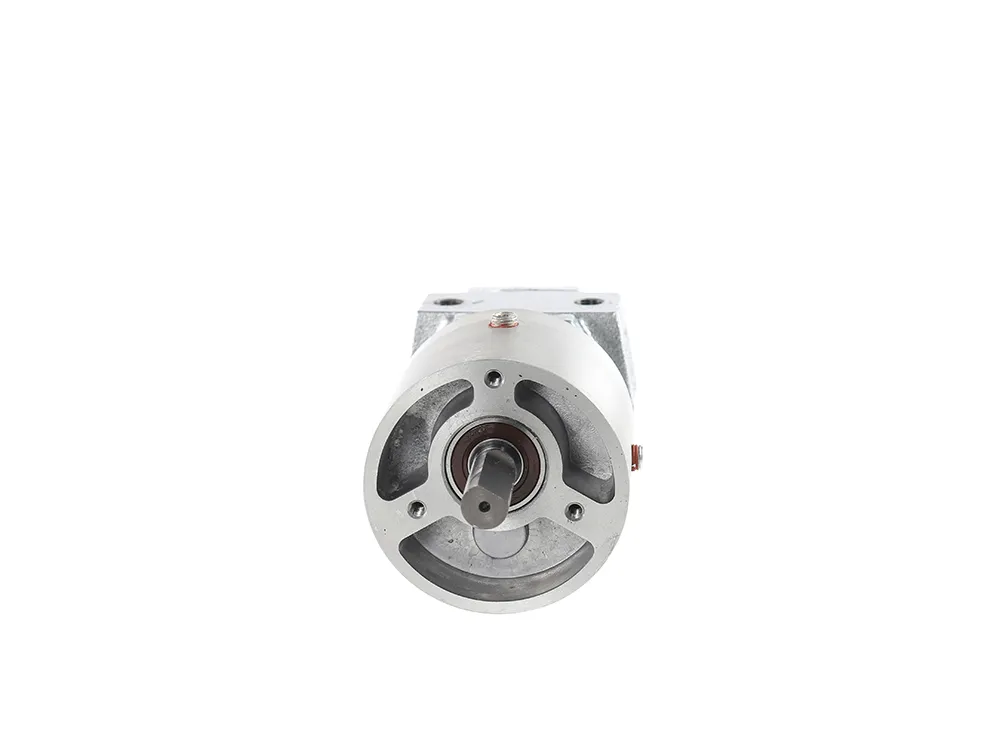

| 1UP-NRV-11-GR11 | Reversible | 49 lbs.-in. | 21 CFM | 400 RPM | 1 3/8" | Aluminum | 400 RPM | 95 lbs.-in. | €1,117.20 | |
| 1UP-NRV-4-GR11 | Reversible | - | - | - | - | - | 400 RPM | 95 lbs.-in. | €949.08 |
