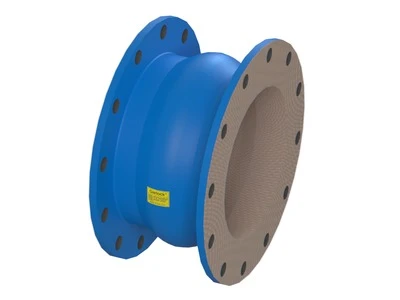

GARLOCK SEALING TECHNOLOGIES 94316-1032 Fep Liner Tube Material, 10.000 Inch Inside Diameter, 8.000 Inch Face-To-Face Length
€18,029.74 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Angular | No |
| Body Material | Nylon Tire Cord |
| Compression Movement | 1/2" |
| Cover Color Coating | Blue Paint |
| Cover Material | Chlorobutyl |
| Elongation Movement | 1/4" |
| Face To Face Length | 8" |
| Filled Arches | Hollow |
| Flange 1 Bolt Circle Dia. - Large Side | 14 1/4" |
| Flange 1 Bolt Hole Dia. - Large Side | 1" |
| Flange 1 Bolt Hole Quantity - Large Side | 12 |
| Flange 1 Bolt Holt Dia. - Large Side | 25.4 mm |
| Flange 1 Inner Dia. - Large Side | 10" |
| Flange 1 Outside Dia. - Large Side | 16" |
| Flange 2 Bolt Circle Dia. - Small Side | 14 1/4" |
| Flange 2 Bolt Hole Dia. - Small Side | 1" |
| Flange 2 Bolt Hole Quantity | 12 |
| Flange 2 Inner Dia. - Small Side | 10" |
| Flange 2 Outside Dia. - Small Side | 16" |
| Joint Flange Material | Rubber Flanges |
| Joint Type | Straight |
| Lateral Movement | 1/4" |
| Lateral Offset | No |
| Lateral Offset Distance | 0 mm |
| Max. Angular Face To Face Distance | 0 mm |
| Max. Pressure | 250 psi |
| Max. Temp. | 250°F |
| Min. Angular Face To Face Distance | 0 mm |
| No. Of Arches | 1 |
| Oversized Arches | No |
| Pipe Standard And Class | ASME Class 125/150 A |
| Pressure Style | Standard |
| Style/model | Style 206 |
| System Of Measurement | Imperial |
| Tube Color | Translucent |
| Tube Material | GUARDIAN FEP Liner |
| Unique Drill Pattern | No |
| Vacuum | 26 in. hg |
Product Variants
| Model | MPN | Price | |
|---|---|---|---|
| 94316-0632 | 94316-0632 | - | RFQ
|
| 94316-1443 | 94316-1443 | - | RFQ
|
| 94316-1228 | 94316-1228 | - | RFQ
|
| 94316-1226 | 94316-1226 | - | RFQ
|
| 94316-1240 | 94316-1240 | - | RFQ
|
| 94316-1636 | 94316-1636 | - | RFQ
|
| 94316-0624 | 94316-0624 | - | RFQ
|
