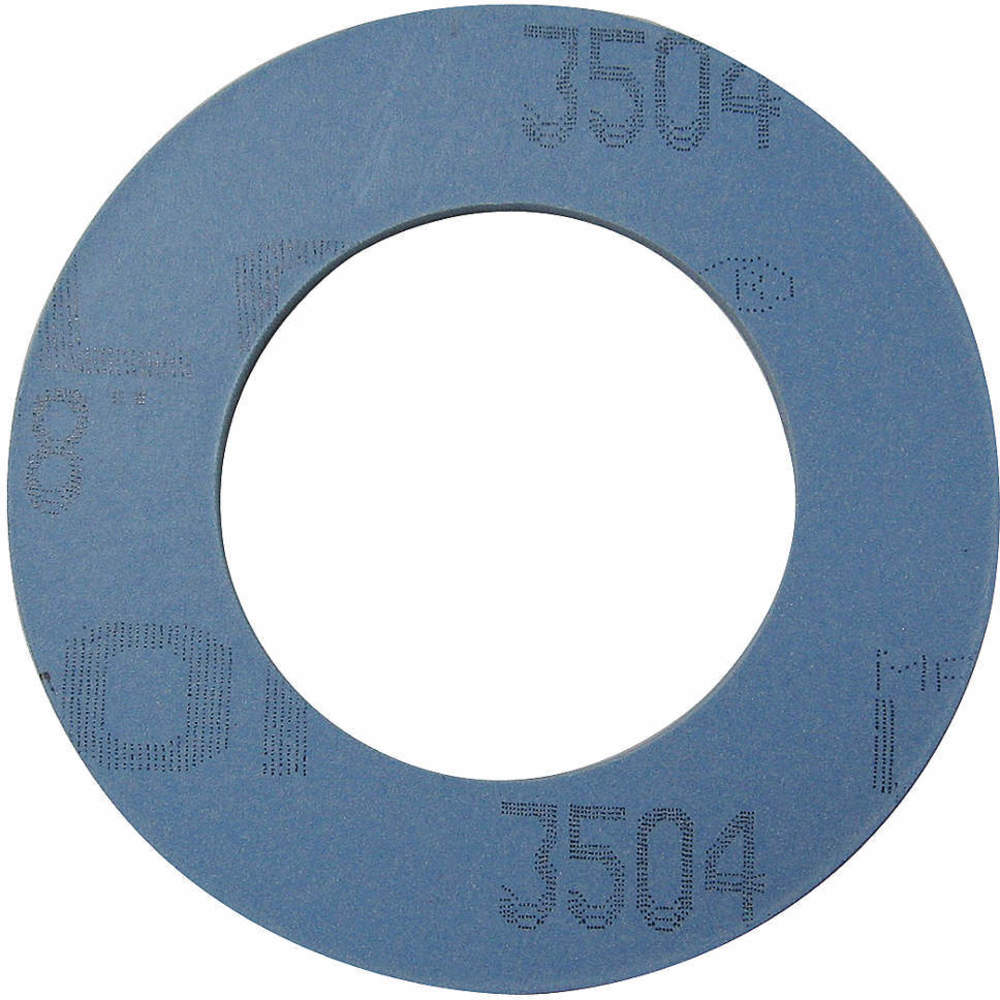

GARLOCK SEALING TECHNOLOGIES 3504RG-0150-062-0150 Flange Gasket, 1-1/2 Inch, 1/16 Inch, Blue
Item: AH8LBDModel: 3504RG-0150-062-0150Cross Ref: 38VR20
7 In Stock
Ships within 2 days via
10.00% off
€13.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flange Gasket |
| Color | Blue |
| Fda Approved | Yes |
| For Flange Ansi Class | Class 150 |
| For Fluid Type | Acids, Caustics, Cryogenics, Hydrocarbons, Hydrogen Peroxide, Refrigerants, Solvents |
| Gasket Material | PTFE |
| Gasket Type | Ring Gasket |
| Hardness | Not Rated |
| Includes Mounting Hardware | No |
| Inside Dia. | 1.906" |
| Inside Diameter | 1 29/32" |
| Material | Ptfe With Aluminosilicate Microspheres |
| Max. Pressure | 800 psi |
| Maximum Operating Pressure | 800 psi |
| Maximum Operating Temperature | 500°F |
| Metal Detectable | No |
| Minimum Operating Temperature | -450°F |
| Outside Dia. | 3 3/8" |
| Pipe Size | 1 1/2" |
| Reinforced | Yes |
| Reinforcement Material | Aluminosilicate Microspheres |
| Temp. Range | -450° to +500° |
| Thickness | 1/16" |
| Type | Ring |
| X-ray Detectable | No |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 8.64 |
| Country of Origin | US |
Product Variants
| Model | Outside Dia. | Color | Inside Dia. | Temp. Range | Max. Pressure | Gasket Material | Reinforced | Metal Detectable | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

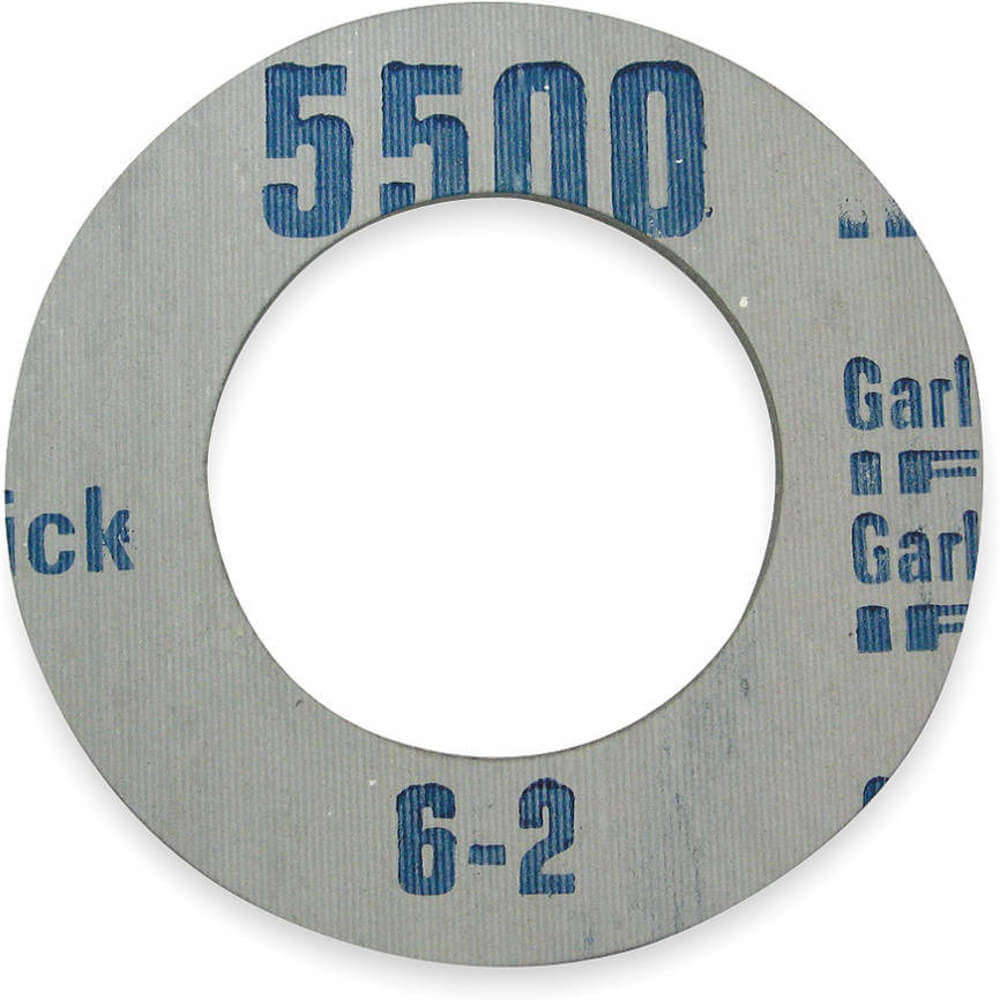

| 5500RG-0150-125-0050 | 1 7/8" | Gray | 0.844" | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €1.29 | |
| 5500RG-0150-125-0075 | 2 1/4" | Gray | 1.062" | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €1.89 | |
| 5500RG-0150-125-0100 | 2 5/8" | Gray | 1.312" | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €2.94 | |
| 5500RG-0150-125-0150 | 3 3/8" | Gray | 1.906" | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €5.24 | |
| 5500RG-0150-125-0200 | 4 1/8" | Gray | - | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €7.13 | |
| 5500RG-0150-125-0250 | 4 7/8" | Gray | 2 7/8" | -100° to +800° | 1200 psi | - | - | No | €10.20 | |
| 5500RG-0150-125-0300 | 5 3/8" | Gray | 3 1/2" | -100° to +800° | 1200 psi | Inorganic Fiber | No | No | €11.39 |
