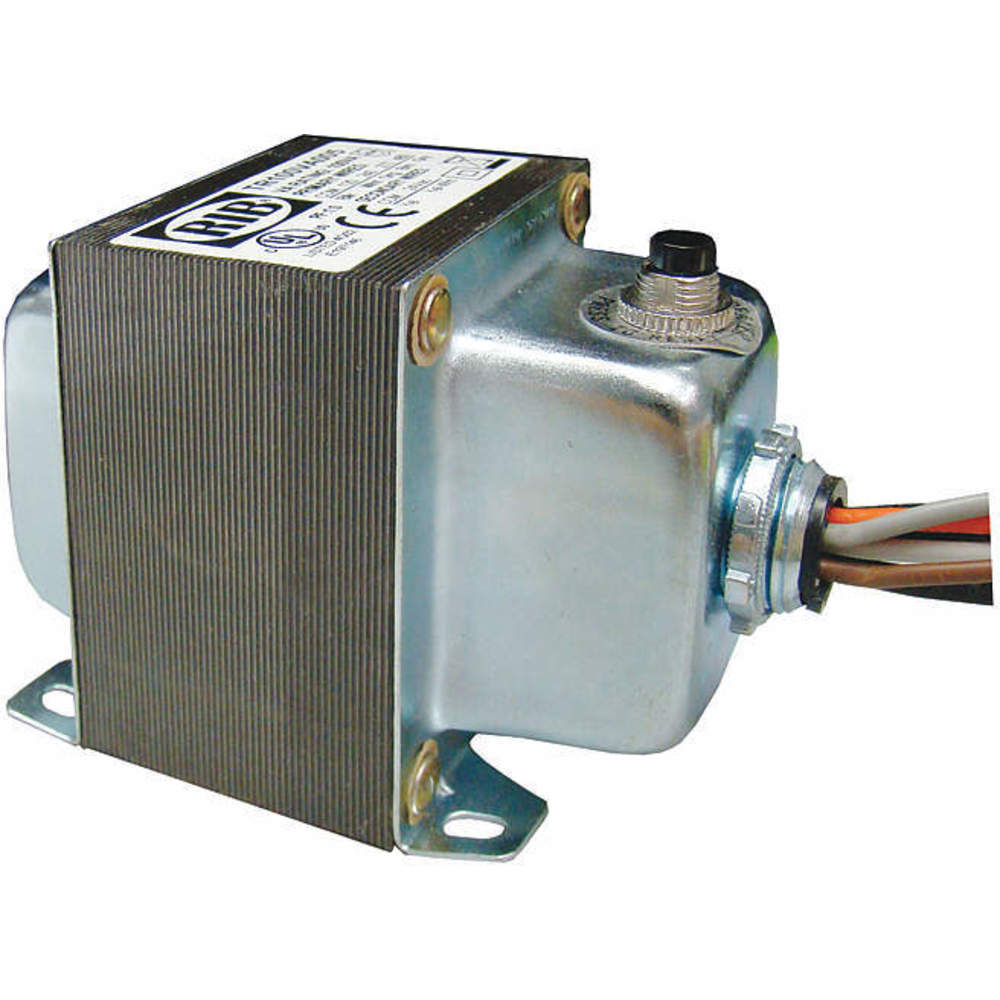

FUNCTIONAL DEVICES INC / RIB TR100VA005 Class 2 Transformer 24vac 100 Va 1 Ph
Item: AD4CAHModel: TR100VA005Cross Ref: 41D399
7 In Stock
Ships within 2 days via
10.00% off
€72.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Class 2 Transformer |
| Connection - Primary | Wire Lead |
| Connection - Secondary | Wire Leads |
| Depth | 2.51" |
| Enclosure Finish | No Finish |
| Enclosure Rating | Not Rated |
| Enclosure Style | Open |
| Enclosure Type | Indoor |
| Frequency | 50/60 Hz |
| Height | 3.03" |
| Includes | Circuit Breaker |
| Input Voltage | 120/240/277/480V AC |
| Manufacturers Warranty Length | 5 yrs. |
| Mounting | Foot, Hub |
| Mounting Type | Foot |
| Nema Enclosure Rating | Not Rated |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -30°F |
| Output Voltage | 24V AC |
| Overall Depth | 4.22" |
| Overall Height | 3.02" |
| Overall Width | 2 13/25" |
| Phase | 1 |
| Power Rating | 96 VA |
| Protective Device | Circuit Breaker |
| Standards | Ce, Rohs, Ul Listed |
| Temp. Rise | Not Rated |
| Width | 4.258" |
| Wire Lead Length - Primary | 8" |
| Wire Lead Length - Secondary | 8" |
Shipping Info:
| Ship weight (kg) | 2 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 16.51 |
| HS code | 8504314065 |
| Country of Origin | CN |
Product Details:
Functional Devices TR100VA005 transformer is suitable in low-voltage control systems for ON / OFF control, equipment overcurrent protection, power indication and more. It is used in building automation panels, industrial enclosures and general-purpose electrical enclosures.
Features:
- Functional Devices RIB TR100VA005 transformer features an open-style enclosure, providing easy access and visibility.
- It includes a 1/2-inch hub and foot, ensuring installation flexibility.
- This RIB transformer is designed to operate seamlessly with both 50 Hz and 60 Hz electrical systems.
- It is equipped with primary connection pigtails for efficient wiring and secondary connection with 8-inch leads.
Compatible Accessories:
/pd/3m/mvu14-10rx: This blue butted ring terminal is equipped with insulation around the barrel, preventing wire strands from loosening. It minimises the risk of accidental contact and protects against short circuits, deterioration and corrosion damage.Frequently Asked Questions:
Q. What is the operating temperature of Functional Devices RIB TR100VA005 transformer?
A. It can operate at temperatures ranging from -30 to 140 degrees F.
Q. Is load current detection included in the device's capabilities?
A. Yes, it is equipped with output terminals and LEDs indicating trip points and load current detection.
Product Variants
| Product | Model | Mounting | Input Voltage | Output Voltage | Number Of Outputs | Enclosure Finish | Height | Va Rating | Hub | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR50VA005 | Foot Or 1/2" NPT Hub | - | - | - | No Finish | 3" | - | - | €65.07 | |
 |
TR50VA014 | Foot, Hub | 277V AC | 24V AC | - | No Finish | 3.06" | - | - | €69.73 | |
 |
TR50VA015 | Foot, Hub | 120/208/240/277/480V AC | 24V AC | - | No Finish | 3.06" | - | - | €70.70 | |
 |
TR75VA001 | Foot, Hub | 120V AC | 24V AC | - | No Finish | 3" | 75 VA | - | €61.88 | |
 |
TR75VA005 | Foot, Hub | 120/208/240/480V AC | 24V AC | - | No Finish | 3.03" | 75 VA | - | €69.89 | |
 |
TR100VA001 | Foot, Hub | 120V AC | 24V AC | - | No Finish | 3.03" | - | - | €70.38 | |
 |
TR50VA001 | Foot, Hub | 120V AC | 24V AC | - | No Finish | 2.879" | - | - | €45.37 |
