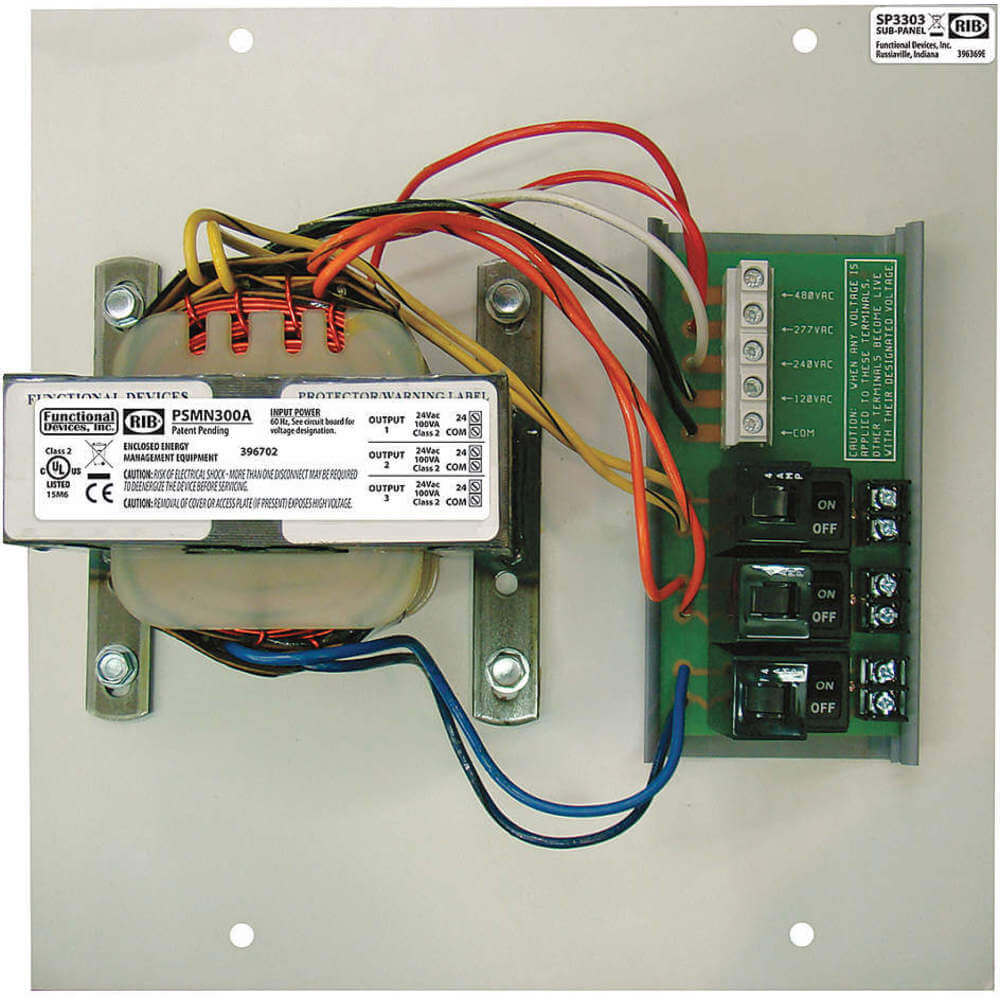

FUNCTIONAL DEVICES INC / RIB PSMN300A Transformer Control, In 480 / 277 / 240 / 120 Out 24, 1 Phase
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€423.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Transformer |
| Application | AC Power Supply |
| Circuit Breaker Size | 4A |
| Dc Voltage Output Type | Fixed |
| Enclosure Finish | No Finish |
| Enclosure Rating | NEMA 1 |
| Enclosure Style | Open |
| Enclosure Type | Open |
| Frequency | 50/60 Hz |
| Green Certification Or Other Recognition | RoHS.png |
| Height | 11.33" |
| Housing Material | Polymetal |
| Included | 10A Main Breaker Switch, 120V Ac Convenience Outlets, Finger-Safe Terminals, Led Power Indicator, On/Off Control |
| Included On/off Switch | Individual Output On/Off Switch |
| Input Voltage | 120/240/277/480V AC |
| Max. Operating Temp. | 131°F |
| Mount | Panel Mount |
| Mounting | Panel |
| Nema Enclosure Rating | 1 |
| No. Of Convenience Outlets | 1 |
| No. Of Outputs | 2 |
| Output Voltage | 24V AC |
| Overall Depth | 11.33" |
| Overall Height | 4 1/2" |
| Overall Width | 11 2/5" |
| Phase | 1 |
| Power | 300 VA |
| Primary Connection | Screw Terminal |
| Protective Device | Circuit Breaker |
| Secondary Output Voltage | 24V AC |
| Sub-panel | Plenum Rated Polymetal (PSMN300A) |
| Temp. Rise | Not Rated |
| Transformer | One (1) 300 VA |
| Width | 11 2/5" |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 5.33 |
| Ship height (cm) | 28.78 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 28.96 |
| HS code | 8504409530 |
| Country of Origin | US |
Product Details:
- Primary Connection (Screw Terminals)
- Secondary Connection (Screw Terminals)
