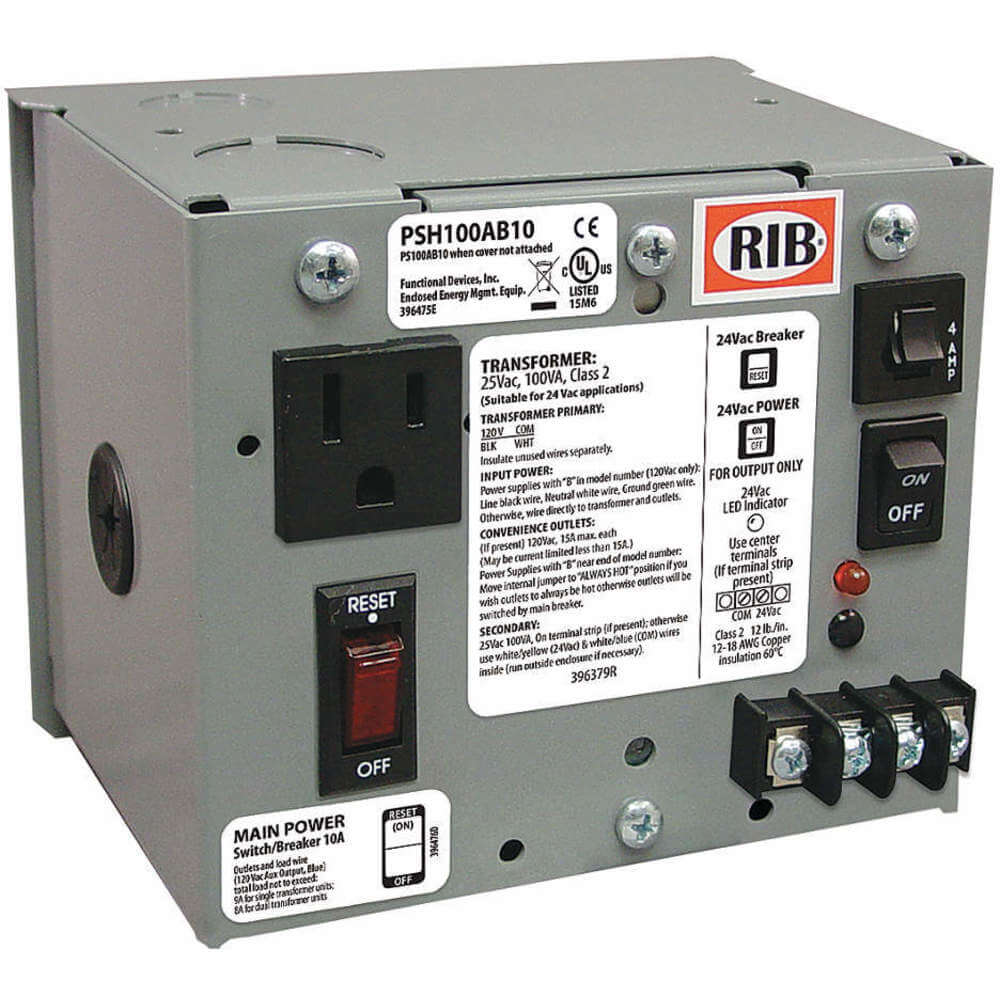

FUNCTIONAL DEVICES INC / RIB PSH100AB10 Transformer Ac Control In 120 Out 24

Functional Devices PSH100AB10 transformer is an electrical device designed for efficient power distribution. With a compact form factor, it converts electrical voltage, ensuring compatibility with diverse electronic components. This RIB Series unit is used in HVAC systems, lighting controls and building automation to enhance the performance of commercial and industrial applications.

Features:

• It has a protective circuit breaker, ensuring safety and reliability during operation.
• This device has wall mounting for space-efficient installation.
• It features an enclosed design with a powder-coated NEMA 1-rated housing, providing durability and protection in various environmental conditions.
• This RIB Series transformer unit incorporates a primary connection with pigtails, streamlining installation and maintenance by providing flexible and secure wiring options.

Frequently Asked Questions:

Q. What are the factors to consider while choosing Functional Devices PSH100AB10 transformer?

A. Major factors include voltage compatibility, power rating, application suitability, size, efficiency, safety certifications, temperature range, noise level, installation requirements and overload protection.

Q. What safety precautions should I take when using this transformer?

A.

• Always turn off the transformer and disconnect it from the power source before performing any maintenance or cleaning to avoid electrical shock.
• Adhere to local electrical codes & regulations during installation to ensure compliance with safety standards.
• Confirm that the transformer is properly grounded to reduce the risk of electrical faults and improve overall safety.
• Do not exceed the specified load capacity to prevent overheating and potential damage.
• Monitor the operating temperature to prevent overheating and ensure it remains within the specified range.
• Ensure proper ventilation around the transformer to maintain efficient operation and prevent overheating.
• Connect the transformer to the correct voltage source as specified in the product documentation to avoid damage and ensure safety.
• Keep the transformer away from water and moisture to prevent electrical hazards, avoiding operation in wet conditions.
• Conduct regular visual inspections for signs of damage, wear or overheating, addressing any issues promptly and consulting with a professional if needed.

Q. How do I clean and maintain this Functional Devices PSH100AB10 transformer?

A.

• Before cleaning, ensure the transformer is powered off and disconnected to prevent electrical hazards.
• Gently use a soft brush or compressed air to clear dust and debris from the transformer's surface, cooling fins, and vents.
• Regularly check for cracks, loose connections or discolouration, & consult the manufacturer or a technician if issues are found.
• Verify secure mounting, tightening any loose bolts or brackets to maintain stability.
• Examine wiring for wear or damage, ensuring all connections are tight and secure and replace any damaged wires promptly.
• Keep ventilation openings clear to maintain proper airflow for cooling and prevent overheating.
• Use a mild detergent solution and a soft cloth for exterior cleaning to avoid damaging the casing.
• After cleaning, ensure the transformer is completely dry before restoring power to prevent moisture-related issues.
• Keep the transformer within its specified ambient temperature range for optimal performance.
