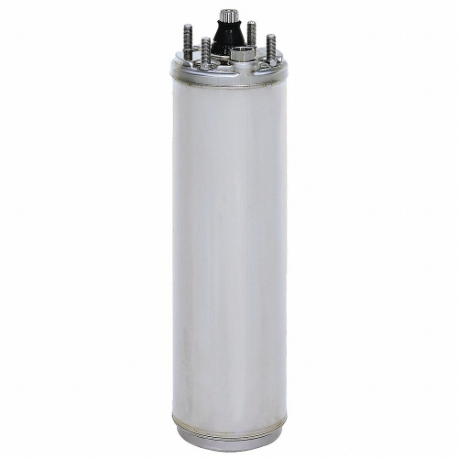

FRANKLIN 558770 Deep Well Submersible Pump Motor, 2 Hp, 3450 Nameplate Rpm, 230VAC, 3 Wires
Get it by Wednesday, Dec 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Deep Well Submersible Pump Motor |
| Ambient Temp. | 86°F |
| Bearing Type | Thrust |
| Body Dia. | 4" |
| Cord Length | 48" |
| Diaphragm Type | Pressure Equalizing |
| Duty Cycle | Continuous |
| For Pump Number | 93871009, 93871510, 93872010, 93872510, 93873510, MFR NO. 93870710 |
| Frame | 3R |
| Full Load Amps | 6.7A |
| Height | 13 5/8" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Lead Length | 48" |
| Max. Ambient Temp. | 86°F |
| Max. Sf Amps | 8.1A |
| Motor Application | Pump |
| Motor Bearings | Thrust |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Deep Well Submersible Pump |
| Motor Type | Three Phase |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Overall Height | 13 5/8" |
| Overload Relay Amp Setting | 7.5A |
| Overload Relay Max. Amp Setting | 8.1A |
| Overload Relay Required | Yes |
| Phase | 3 |
| Service Factor | 1.25 |
| Shaft Material | Stainless Steel |
| Standards | Ansi/Nsf 61 Certified, Csa Certified, Industry Standard Nema Mounting Dimensions, Ul 778 Recognized |
| Starter Required | 3DY20 |
| Stator Type | Hermetically Sealed |
| Thermal Protection | None |
| Thrust Rating | 650 lbs. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Weight | 28 lbs. |
Shipping Info:
| Ship weight (kg) | 12.74 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Voltage | Service Factor | Full Load Amps | Hp | Phase | Motor Type | Thermal Protection | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
137420 | 230V AC | 1.3 | 10.6A | 1 1/2 hp | Single | Split Phase | Automatic | Sleeve | €1,202.44 | |
|
137434 | 230V AC | 1.3 | 10A | 1 1/2 hp | Single | Split Phase | Manual | Sleeve | €984.17 | |
|
137418 | 230V AC | 1.4 | 8.2A | 1 hp | Single | Split Phase | Automatic | Sleeve | €919.56 | |
|
137432 | 230V AC | 1.4 | 8.2A | 1 hp | Single | Split Phase | Automatic | Sleeve | €780.85 | |
 |
137412 | 115V AC | 1.6 | 10A | 1/2 hp | Single | Split Phase | Automatic | Sleeve | €712.50 | |
 |
137426 | 115V AC | 1.6 | 10A | 1/2 hp | Single | Split Phase | Automatic | Sleeve | €710.24 | |
 |
137428 | 230V AC | 1.6 | 5A | 1/2 hp | Single | Split Phase | Automatic | Sleeve | €602.20 |
