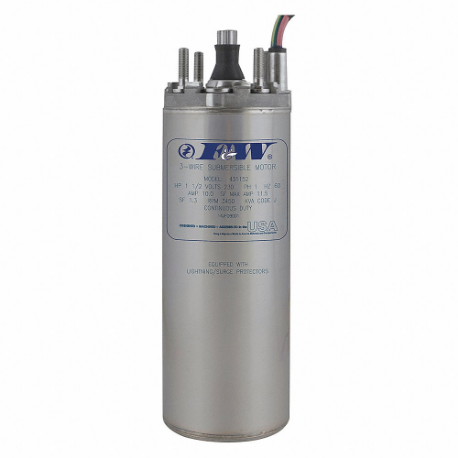

FLINT & WALLING 137426 Deep Well Submersible Pump Motor, 1/2 Hp, 3450 Nameplate Rpm, 115VAC, 3 Wires
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€639.21 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Deep Well Submersible Pump Motor |
| Ambient Temp. | 86°F |
| Bearing Type | Sleeve |
| Body Dia. | 4" |
| Cord Length | 48" |
| Diaphragm Type | Pressure Equalizing |
| Full Load Amps | 10A |
| Height | 10 1/8" |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Lead Length | 48" |
| Length Less Shaft | 10 1/8" |
| Max. Ambient Temp. | 86°F |
| Max. Sf Amps | 12A |
| Motor Application | Pump |
| Motor Bearings | Sleeve |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Vertical Shaft Up |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Spline |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Deep Well Submersible Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Number Of Wires | 3 |
| Overall Height | 10 1/8" |
| Overall Length | 11 5/8" |
| Overload Relay Max. Amp Setting | Not Applicable |
| Overload Relay Required | No |
| Phase | Single |
| Service Factor | 1.6 |
| Shaft Material | Stainless Steel |
| Starter Required | No |
| Stator Type | Hermetically Sealed |
| Thermal Protection | Automatic |
| Thrust Rating | 700 lbs. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Service Factor | Full Load Amps | Hp | Phase | Motor Type | Thermal Protection | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
137420 | 230V AC | 1.3 | 10.6A | 1 1/2 hp | Single | Split Phase | Automatic | Sleeve | €1,202.44 | |
|
137434 | 230V AC | 1.3 | 10A | 1 1/2 hp | Single | Split Phase | Manual | Sleeve | €984.17 | |
|
137418 | 230V AC | 1.4 | 8.2A | 1 hp | Single | Split Phase | Automatic | Sleeve | €919.56 | |
|
137432 | 230V AC | 1.4 | 8.2A | 1 hp | Single | Split Phase | Automatic | Sleeve | €780.85 | |
 |
137412 | 115V AC | 1.6 | 10A | 1/2 hp | Single | Split Phase | Automatic | Sleeve | €712.50 | |
 |
137428 | 230V AC | 1.6 | 5A | 1/2 hp | Single | Split Phase | Automatic | Sleeve | €602.20 | |
|
137435 | 230V AC | 1.25 | 11.4A | 2 hp | Single | Split Phase | Manual | Sleeve | €1,134.74 |
