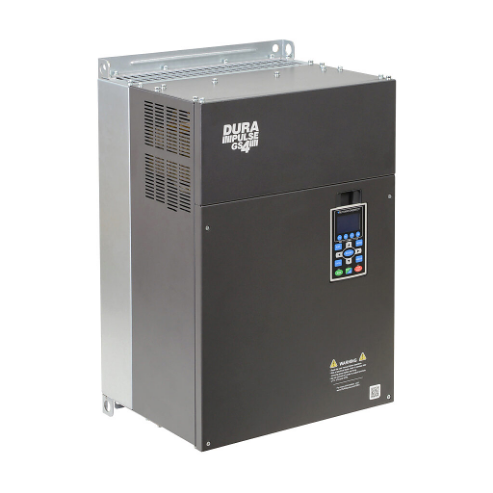

DURAPULSE GS4-4125 AC High-Performance Drive, Open Frame, 460 VAC, 125Hp With 3-Phase Input
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Drive |
| Amps Rating | 171A |
| Analog Input Signal Type | Current/Voltage |
| Carrier Frequency | 2-15 kHz |
| Connector Type | Screw Terminals |
| Control Mode | Svc Or V, HZ |
| Controller Type | High Performance |
| Discrete Input Type | Sinking, Sourcing |
| Discrete Output Type | Relay, Sinking, Sourcing |
| Dynamic Braking | External Dynamic Braking Unit Required |
| Enclosure Type | Open Frame |
| For Use With | 3-Phase Induction Motors |
| Frame Type | E |
| Fuse Type | User Supplied External Fuse |
| Hp By Input Phase | 125 hp with 3 Phase Input |
| Input Voltage Signal Range | 10V DC |
| Internally Bypassed | No |
| Ip Rating | IP00, IP20 |
| Mounting | Panel, Wall |
| No. Of Discrete Output Points | 4 |
| Nominal Discrete Input Voltage | 24V DC |
| Nominal Discrete Output Voltage | 240V AC/48V DC |
| Output Frequency | 0.1-599 Hz |
| Output Resolution | 10 Bit |
| Output Type | PWM Output |
| Port Protocols | Modbus Rtu Modbus Ascii Bacnet |
| Port Speed(s) | Up To 115.2k Baud |
| Product Datasheet | automation-direct-gs4-2010.pdf |
| Programming Language | Ladder |
| Relay Configuration | Form C (SPDT) Relays |
| Reverse Capability | Built In |
| Safe Torque Off (sto) | Yes |
| Series | GS4 Series |
| Temp. Rating | -10°C to +50°C |
| Variable Torque Amps Rating | 180A |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 72 |
| HS code | 850440 |
| Country of Origin | CN |
