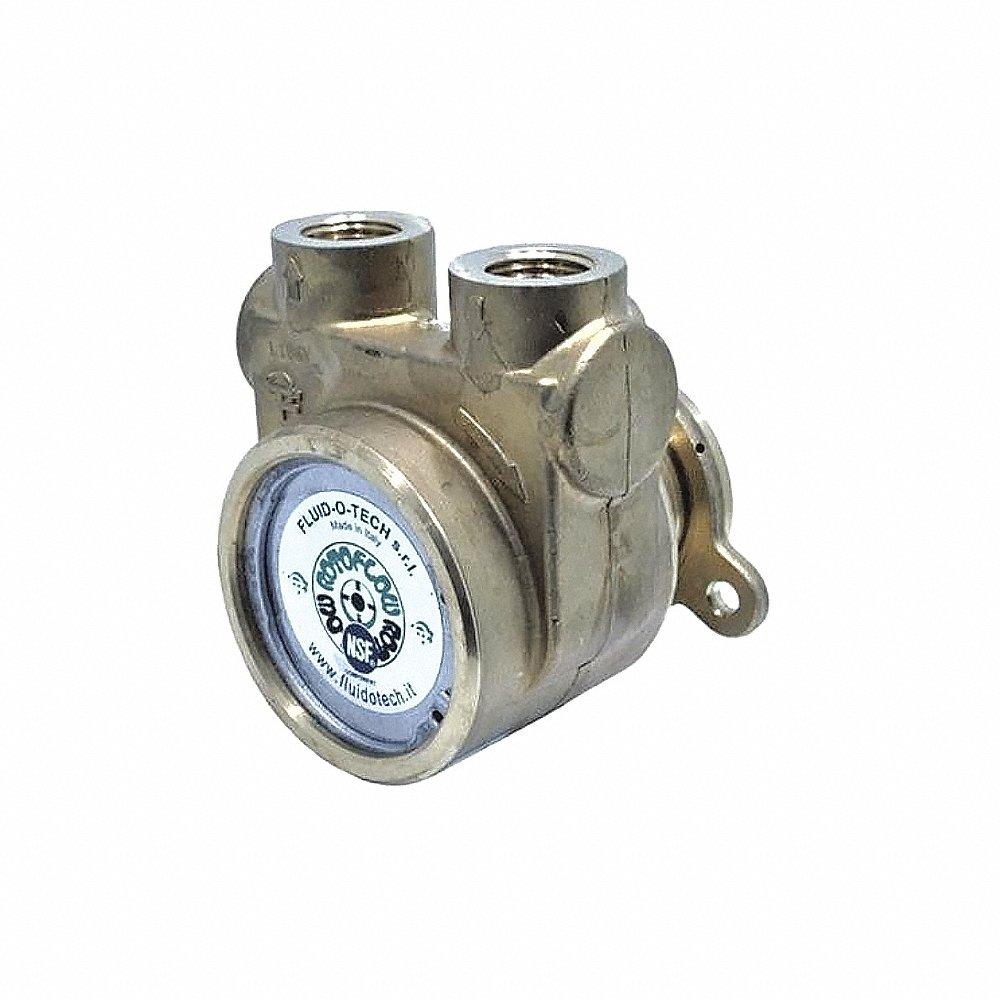

FLUID-O-TECH PA410 Rotary Vane Pump, 3/8 Inch Inlet/Outlet NPTF, 144 gph Max. Flow
Item: CJ3FFYModel: PA410Cross Ref: 423J91
7 In Stock
Ships within 2 days via
5.00% off
€218.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Stainless Steel |
| Compatible Motor Frame | 48Y NEMA, 56C NEMA, M71, M80 IEC |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Flow Rate @ 100 Psi | 118 GPH |
| Flow Rate @ 150 Psi | 114 GPH |
| Flow Rate @ 200 Psi | 108 GPH |
| Flow Rate @ 250 Psi | 136 GPH |
| Flow Rate @ 50 Psi | 120 GPH |
| For Media Type | Aggressive Liquid, Water |
| Frame | 48Y, 56C, M71, M80 IEC |
| Included Filter | No |
| Max. Flow Rate | 120 GPH |
| Max. Ft. | 240 psi |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Viscosity | 150 cPS |
| Media Type | Aggressive Liquid, Water |
| Min. Flow Rate | 102 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| Nsf 169 Listed | Yes |
| Operating Temp. | 23°F to 158°F |
| Port Connection | 3/8" FNPT |
| Port Connection Size | 3/8" |
| Port Connection Type | FNPT |
| Relief Valve | No |
| Seal Material | Buna N |
| Shaft | Stainless Steel |
| Shaft Combined | 1/8" Stainless Steel |
| Shaft Material | Stainless Steel |
| Shaft Outside Dia. | 1/8" |
| Vane Material | Carbon |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Mounting Type | Port Connection Size | Max. Flow Rate | Shaft Material | Body Material | Flow Rate @ 150 Psi | Flow Rate @ 250 Psi | Min. Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PA 810F | 3 Bolt Flange | 1/2" | 230 GPH | Stainless Steel | Stainless Steel | 220 GPH | 245 GPH | 210 GPH | €483.94 | |
 |
PA 401X | Carbonator Clamp | 3/8" | 118 GPH | Stainless Steel | Brass | 110 GPH | 136 GPH | 105 GPH | €308.87 | |
 |
PA 1510 | Carbonator Clamp | 3/8" | 64 GPH | Stainless Steel | Stainless Steel | 52 GPH | 56 GPH | 42 GPH | €233.09 | |
 |
PA 1001 | Carbonator Clamp | 1/2" | 295 GPH | Stainless Steel | Brass | 278 GPH | 319 GPH | 250 GPH | €338.09 | |
|
PA 301X | Carbonator Clamp | 3/8" | 90 GPH | Stainless Steel | Brass | 90 GPH | 99 GPH | 82 GPH | €197.79 | |
 |
PA 310 | Carbonator Clamp | 3/8" | 90 GPH | Stainless Steel | Stainless Steel | 86 GPH | 99 GPH | 82 GPH | €229.99 | |
 |
PA 101 | Carbonator Clamp | 3/8" | 40 GPH | Stainless Steel | Brass | 20 GPH | 29 GPH | 30 GPH | €199.58 |
