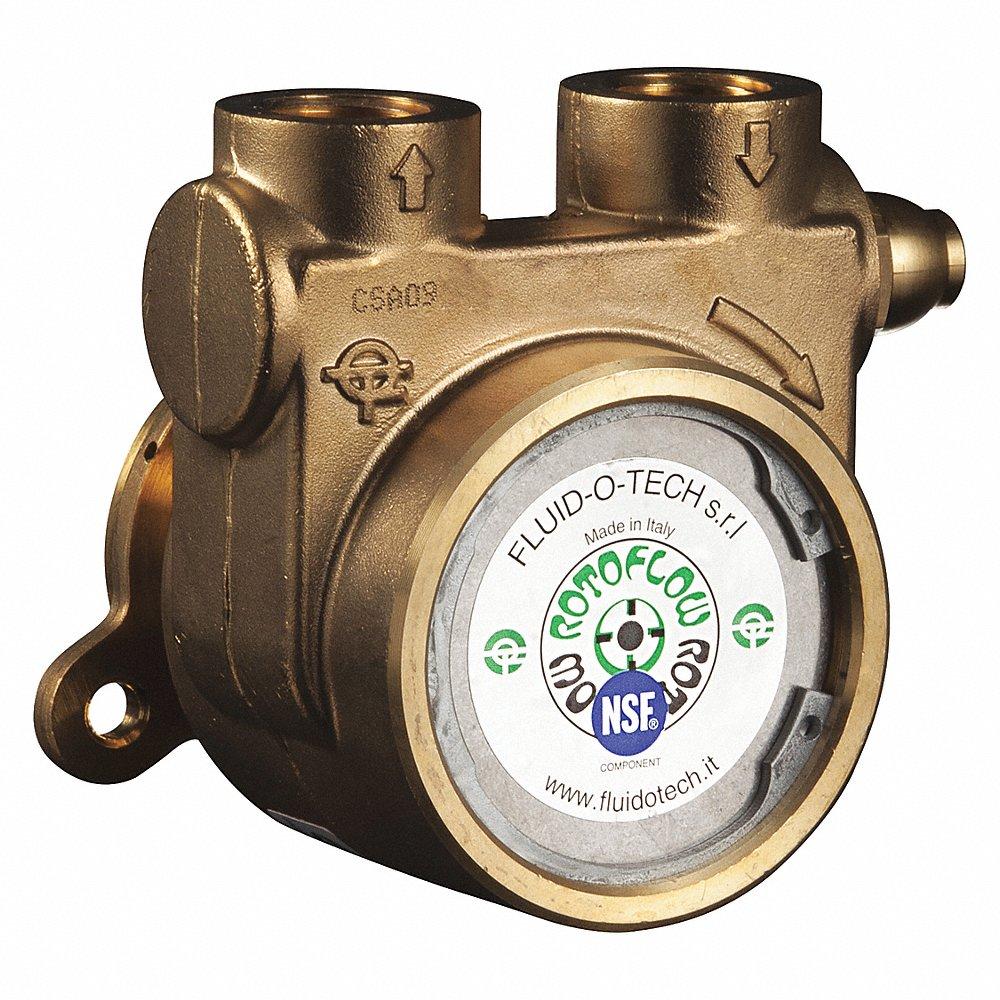

FLUID-O-TECH PA 801F Rotary Vane Pump, 1/2 Inch Inlet/Outlet NPTF, 264 gph Max. Flow, Brass
Item: CJ3FGNModel: PA 801FCross Ref: 423J85
7 In Stock
Ships within 2 days via
5.00% off
€320.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Brass |
| Built-in | Relief Valve |
| By Pass | Yes |
| Compatible Motor Frame | 48Y NEMA, 56C NEMA, M71, M80 IEC |
| Discharge Connection Size | 1/2" |
| External Relief | Not Required |
| Filter | Not Included |
| Filter Combined | No |
| Filter Included | No |
| Flow Rate @ 100 Psi | 222 GPH |
| Flow Rate @ 150 Psi | 220 GPH |
| Flow Rate @ 200 Psi | 218 GPH |
| Flow Rate @ 250 Psi | 245 GPH |
| Flow Rate @ 50 Psi | 225 GPH |
| For Media Type | Water |
| Frame | 48Y, 56C, M71, M80 IEC |
| Gph | 264 GPH |
| Gph Of Water @ 100 Psi | 259 GPH |
| Gph Of Water @ 150 Psi | 256 GPH |
| Gph Of Water @ 200 Psi | 253 GPH |
| Gph Of Water @ 250 Psi | 245 GPH |
| Gph Of Water @ 50 Psi | 261 GPH |
| Included | Relief Valve |
| Included Filter | No |
| Inlet/outlet Nptf | 1/2" |
| Max. Feet Of Head | 240 psi |
| Max. Filter Rating | Not Applicable |
| Max. Flow Rate | 230 GPH , 264 GPH |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 260 psi |
| Max. Relief Pressure | 260 psi |
| Max. Viscosity | 150 cPS |
| Media Intake Connection Size | 1/2" |
| Media Type | Water |
| Min. Flow Rate | 210 GPH , 245 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Flange Mount |
| Mounting Type | 3 Bolt Flange |
| Nsf 169 Listed | Yes |
| Operating Temp. | 23°F to 158°F |
| Overall Height | 3.9" |
| Overall Length | 4.1" |
| Overall Width | 4 2/5" |
| Port Connection | 1/2" FNPT |
| Port Connection Size | 1/2" |
| Port Connection Type | FNPT |
| Relief Valve | Yes |
| Relief Valve Psi Setting | 125 psi |
| Seal Material | Buna N |
| Shaft Combined | 1/8" Stainless Steel |
| Shaft Material | 1/8" , Stainless Steel |
| Vane Material | Carbon |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 9.91 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 11.18 |
| Country of Origin | IT |
Product Variants
| Product | Model | Max. Flow Rate | Shaft Material | Mounting Type | Flow Rate @ 150 Psi | Min. Flow Rate | Flow Rate @ 50 Psi | Flow Rate @ 100 Psi | Flow Rate @ 200 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PA 810F | 230 GPH | Stainless Steel | 3 Bolt Flange | 220 GPH | 210 GPH | 225 GPH | - | 218 GPH | €483.94 | |
 |
PA 401X | 118 GPH | Stainless Steel | Carbonator Clamp | 110 GPH | 105 GPH | 115 GPH | 150 GPH | 105 GPH | €308.87 | |
 |
PA 1510 | 64 GPH | Stainless Steel | Carbonator Clamp | 52 GPH | 42 GPH | 58 GPH | 56 GPH | 44 GPH | €233.09 | |
 |
PA 1001 | 295 GPH | Stainless Steel | Carbonator Clamp | 278 GPH | 250 GPH | 290 GPH | 280 GPH | 275 GPH | €338.09 | |
|
PA 301X | 90 GPH | Stainless Steel | Carbonator Clamp | 90 GPH | 82 GPH | 90 GPH | 88 GPH | 82 GPH | €197.79 | |
 |
PA 310 | 90 GPH | Stainless Steel | Carbonator Clamp | 86 GPH | 82 GPH | 84 GPH | 88 GPH | 84 GPH | €229.99 | |
 |
PA 101 | 40 GPH | Stainless Steel | Carbonator Clamp | 20 GPH | 30 GPH | 25 GPH | 39 GPH | 30 GPH | €199.58 |
