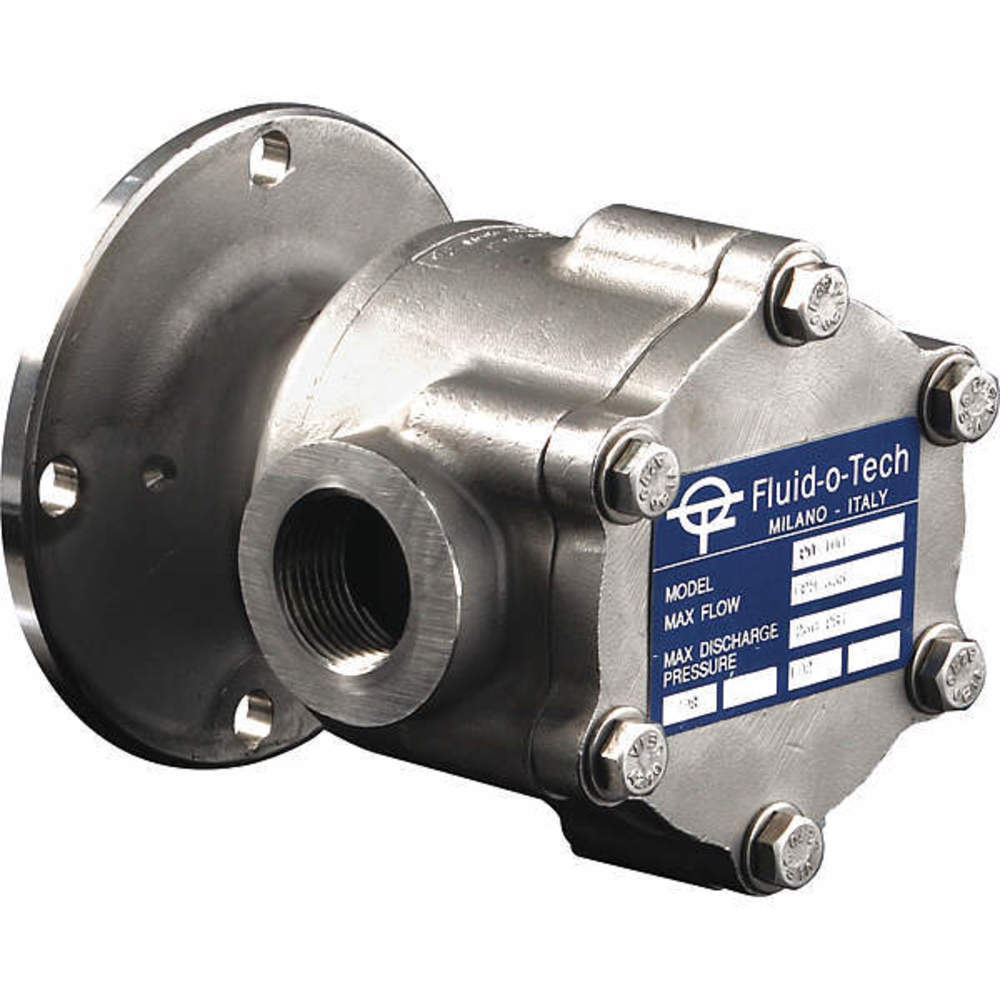

FLUID-O-TECH LO2000CN0NV0000 Rotary Vane Pump Stainless Steel 11 Gpm
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,536.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rotary Vane Pump |
| Body Material | Stainless Steel |
| By Pass | No |
| By-pass | No |
| Bypass Included | No |
| Compatible Motor Frame | 56C NEMA, M80, M90 IEC |
| Discharge Connection Size | 1" |
| External Relief | No |
| Feet Of Head - Maximum | 240 psi |
| Filter | Not Included |
| Filter Combined | No |
| Filter Rating - Maximum | Not Applicable |
| Flow Rate - Maximum | 570 GPH |
| Flow Rate - Minimum | 540 GPH |
| Flow Rate @ 100 Psi | 570 GPH |
| Flow Rate @ 150 Psi | 560 GPH |
| Flow Rate @ 200 Psi | 540 GPH |
| Flow Rate @ 50 Psi | 560 GPH |
| For Media Type | Water |
| Frame | 56C NEMA, M80, M90 IEC |
| Height | 4.9" |
| Includes Filter | No |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Inlet/outlet | 1" FNPT |
| Length | 6.7" |
| Manufacturer Warranty Length | 15 Months |
| Max. Flow (gpm) | 11 GPM |
| Max. Flow Rate | 570 GPH |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 290 psi |
| Max. Viscosity | 150 cPS |
| Media Intake Connection Size | 1" |
| Media Type | Water |
| Min. Flow (gpm) | 11 |
| Min. Flow (gpm) | 11 GPM |
| Min. Flow Rate | 540 GPH |
| Min. Operating Temp. | 23°F |
| Mounting | Flange Mount |
| Mounting Type | 3 Bolt Flange |
| Nsf 169 Listed | Yes |
| Nsf Certified | Yes |
| Operating Temp. Range | 23°F to 158°F |
| Outlet Size | 1" |
| Outlet Type | FNPT |
| Overall Height | 4.9" |
| Overall Length | 6.7" |
| Overall Width | 4.9" |
| Port Connection Size | 1" |
| Port Connection Type | FNPT |
| Relief Valve | No |
| Seal Material | Viton |
| Shaft Combined | 5/8" Stainless Steel |
| Shaft Material | 5/8" , Stainless Steel |
| Shaft Outer Diameter | 5/8" |
| Shaft Outside Dia. | 5/8" |
| Vane Material | Graphite |
| Vane Material | Carbon |
| Viscosity - Maximum | 150 cPS |
| Warranty | 15 Months |
| Width | 4.9" |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 15.24 |
| HS code | 8413600020 |
Product Variants
| Model | Mounting Type | Max. Flow Rate | Shaft Material | Operating Temp. Range | Flow Rate @ 150 Psi | Flow Rate @ 200 Psi | Flow Rate @ 50 Psi | Flow Rate @ 100 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LO1200CN0NV0000 | 3 Bolt Flange | 350 GPH | Stainless Steel | 23°F to 158°F | 330 GPH | 340 GPH | 360 GPH | 350 GPH | €1,707.45 | |
| LO1400CN0NV0000 | 3 Bolt Flange | 410 GPH | Stainless Steel | 23°F to 158°F | 380 GPH | 380 GPH | 420 GPH | 400 GPH | €1,707.45 | |
| LO1600CN0NV0000 | Flange | 8.8 GPM | Stainless Steel | +23°F to +158°F | 430 GPH | 440 GPH | 460 GPH | 450 GPH | €1,707.45 | |
| LO1800CN0NV0000 | 3 Bolt Flange | 530 GPH | Stainless Steel | 23°F to 158°F | 510 GPH | 480 GPH | 520 GPH | 500 GPH | €1,707.45 | |
| LO2200CN0NV0000 | 3 Bolt Flange | 640 GPH | Stainless Steel | 23°F to 158°F | 640 GPH | 600 GPH | 640 GPH | 630 GPH | €1,707.45 |
