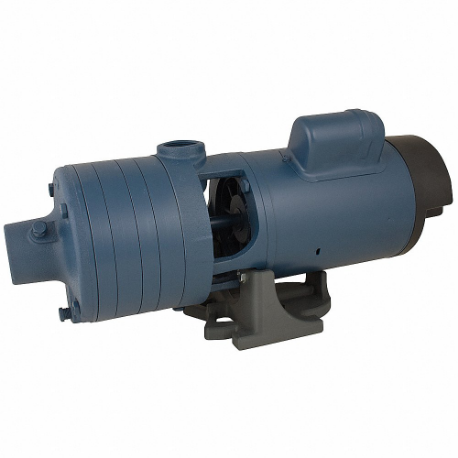

FLINT & WALLING CJ101C203AB Booster Pump, 2 hp, 3 Phase, 208-230/460VAC, 98 PSI Shut Off, 1 1/4 Inch Intake and Disch
Get it by Thursday, Dec 18
10.00% off
€2,504.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Booster Pump |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Clear Water |
| Connection Type | NPT |
| Discharge Rotation | 90° |
| Discharge Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Flow Rate @ 30 Psi | 44 GPM |
| Flow Rate @ 40 Psi | 41 GPM |
| Flow Rate @ 50 Psi | 37 GPM |
| Flow Rate @ 60 Psi | 33 GPM |
| Flow Rate @ 80 Psi | 23 GPM |
| For Media Type | Clear Water |
| For Use With | Nonflammable Liquids Compatible With Pump Component Materials |
| For Use With Potable Systems | No |
| Housing Material | Cast Iron |
| Hp | 2 hp |
| Impeller Design | Closed |
| Impeller Material | Brass |
| Impeller Type | Closed |
| Includes | 1/4" Drain Plug, 1/4" Tap And Plug For Pressure Switch Application, 1/4" Vacuum Tapping |
| Intake And Discharge Size | 1 1/2", 1 1/4" |
| Intake Type | NPT |
| Manufacturer Warranty Length | 1 yr. |
| Max. Case Pressure | 160 psi |
| Max. Flow Rate | 51 GPM |
| Max. Media Temp. | 200°F |
| Max. Motor Ambient Temp. | 149°F |
| Max. Suction Lift | 25 ft. |
| Media Type | Clear Water |
| Min. Flow Rate | 1.5 GPM |
| Motor Enclosure Design | Open Dripproof |
| Motor Rpm | 3450 RPM |
| Mounting Orientation | Horizontal |
| No. Of Stages | 3 |
| Number Of Stages | 3 |
| Overall Height | 9 1/4" |
| Overall Length | 21.38" |
| Overall Width | 7" |
| Phase | 3 |
| Pressure Boost (maximum) | 95 psi |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Pumping Application | City Water Mains, Private Water Systems |
| Rpm (maximum) | 3450 RPM |
| Seal Material | Buna N, Carbon, Silicon Carbide, Stainless Steel |
| Self Priming | Manual |
| Series | CJ101 Series |
| Shut Off Pressure | 98 psi |
| Shut Off Pressure (maximum) | 98 psi |
| Stages | 3 |
| Voltage | 208-230/460V AC |
| Wetted Material | Stainless Steel, Brass, Bromine, Buna N, Cast Iron, Silicon Carbide |
| Wetted Material Grade | Grade 416 |
Shipping Info:
| Ship weight (kg) | 39.38 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 54.31 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
