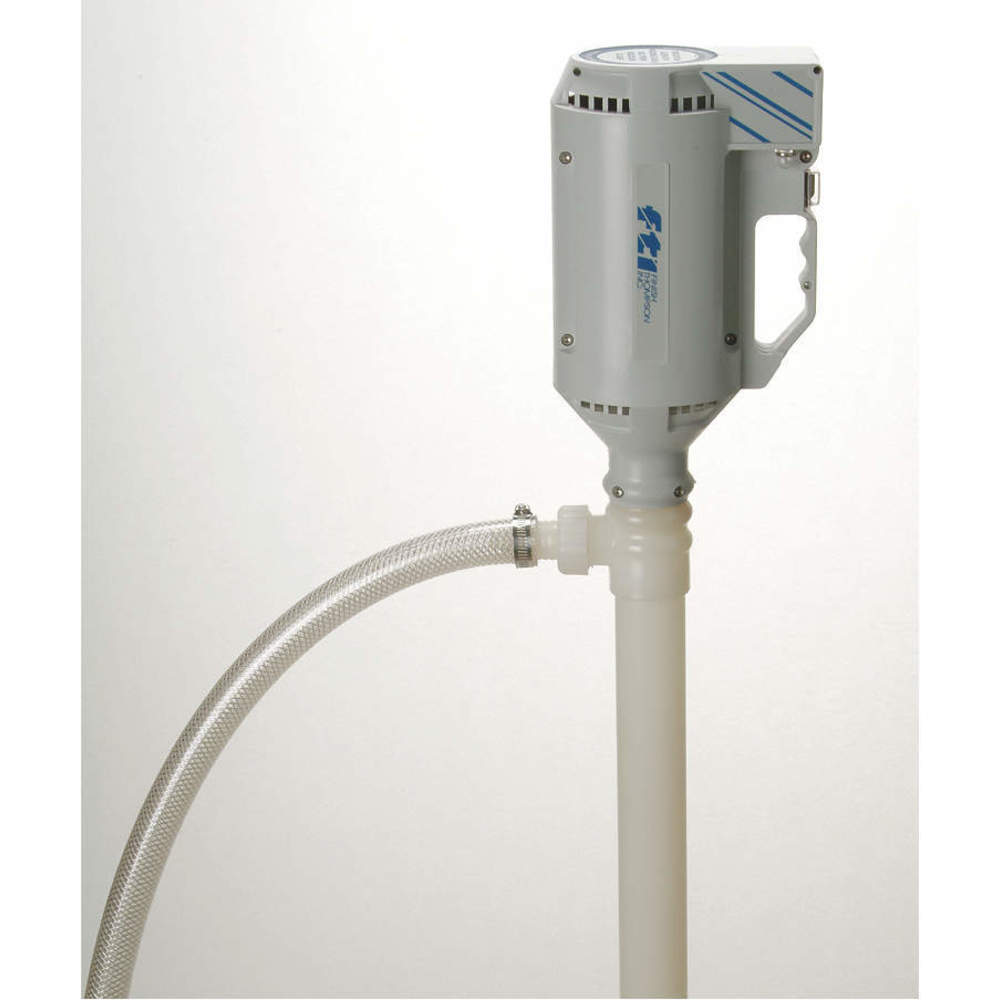

FINISH THOMPSON DPFV014 Electric Operated Drum Pump, 1/2 Hp Motor Hp, 55 Gal For Container Size, 110 VAC
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Operated Drum Pump |
| Adapter Material | Polypropylene |
| Agency Compliance | CSA |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Cord Length | 12 ft. |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Outlet Inside Dia. | 1" |
| Discharge Tube Outlet Outside Dia. | 1 3/8" |
| Display Qty | 1 |
| Display Sell Uom | EA |
| Duty Cycle | Continuous |
| Explosion Proof | No |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Use With | Chemical Transfer |
| Frequency | 60 Hz |
| Full Load Amps | 9.1A |
| Hose Inside Dia. | 1" |
| Hose Length | 60" |
| Hose Outside Dia. | 1 3/8" |
| Hose Tube Material | PVC |
| Housing Material-pumps | PVDF |
| Included | Motor, Hose And Clamp |
| Included Bung Adapter | No |
| Included Discharge Hose | Yes |
| Included Nozzle | No |
| Included Suction Tube | Yes |
| Length | 52" |
| Max. Flow Rate | 40 GPM |
| Max. Fluid Temp. | 120°F |
| Max. Head | 80 ft. |
| Max. Head Pressure | 35 psi |
| Max. Outlet Pressure | 35 psi |
| Max. Viscosity | 500 cPS |
| Metered | No |
| Min. Fluid Temp. | 35°F |
| Motor Enclosure | Tefc |
| Motor Hp | 1/2 hp |
| Motor Speed | 10000 RPM |
| Motor Type | Universal AC/DC |
| Noise Level | 81 dBA |
| Nominal Voltage | 110V AC |
| Overall Length | 52" |
| Phase | 1 |
| Plug Type | NEMA 5-15 |
| Power Source | Electric |
| Pump Connection Type | Smooth Bore |
| Pump Package Type | Basic Pump With Discharge Hose |
| Runs Dry | No |
| Seal Material | PTFE |
| Self Priming | Yes |
| Suction Tube Inside Dia. | 2" |
| Suction Tube Length | 40" |
| Suction Tube Material | Pvdf |
| Suction Tube Outside Dia. | 2" |
| Thermal Protection | No |
| Variable Speed | No |
| Voltage | 115V , 115V AC |
| Wetted Material | PVDF, PTFE, Viton, Alloy 625 |
Shipping Info:
| Ship weight (kg) | 10.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
