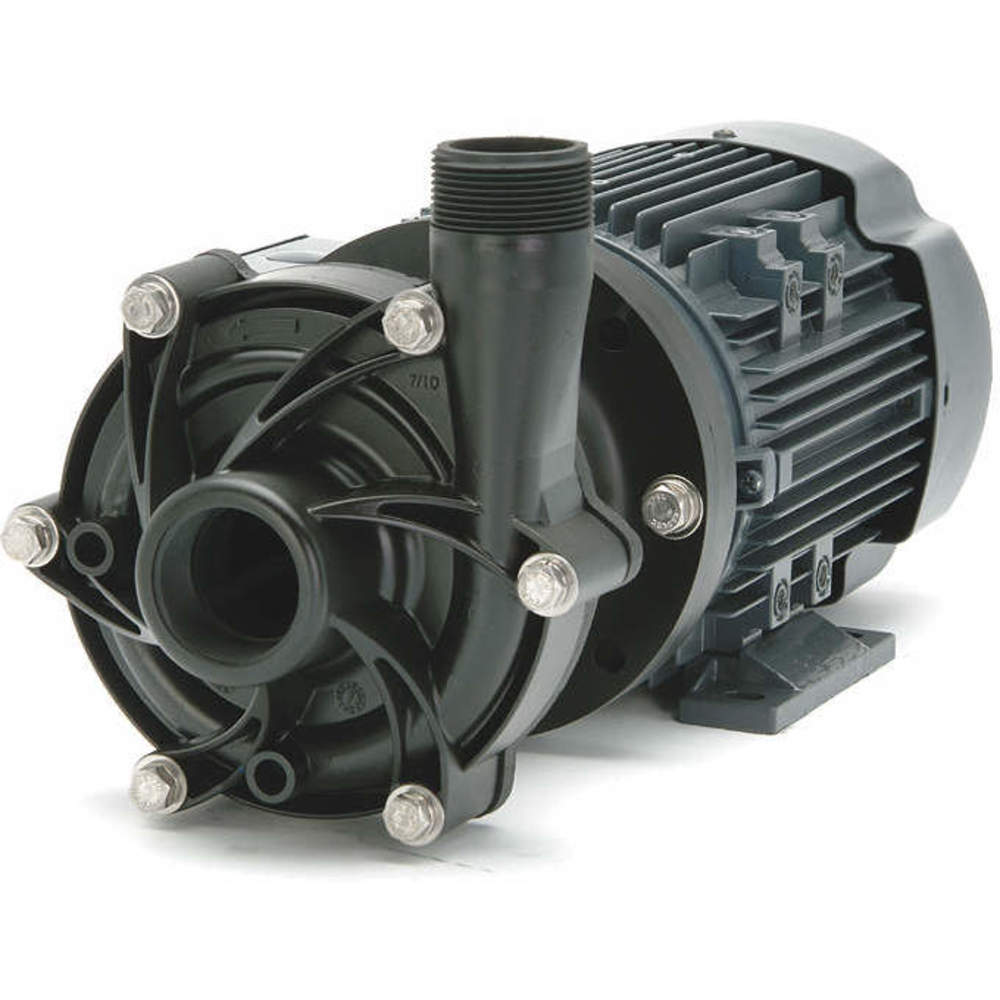

FINISH THOMPSON DB7V-T-M204 Pump Magnetic Drive 3/4 Hp 115/208-230v
Get it by Wednesday, Dec 17
10.00% off
€1,862.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Drive Pump |
| Amps | 5-5.2/10.4A |
| Application | Acids, Di Water, Plating Solutions, Sodium Hypochlorite |
| Bearing Type | Thrust, Radial |
| Bushing Material | PTFE |
| Chemical Compatibility | Deionized Water |
| Compatible Chemicals | Deionized Water |
| Design | Centrifugal |
| Discharge Pipe Size | 1 1/2" |
| Discharge Pipe Type | MNPT |
| Discharge Port Size | 1 1/2" |
| Discharge Port Type | MNPT |
| Feet Of Head (maximum) | 33 ft. |
| Flow Rate @ 1 Ft. | 69 GPM |
| Flow Rate @ 15 Ft Of Head (maximum) | 64 GPM |
| Flow Rate @ 18 Ft Of Head (maximum) | 58 GPM |
| Flow Rate @ 18 Ft. | 58 GPM |
| Flow Rate @ 24 Ft Of Head (maximum) | 50 GPM |
| Flow Rate @ 24 Ft. | 50 GPM |
| Flow Rate @ 3 Ft Of Head (maximum) | 69 GPM |
| Flow Rate @ 3 Ft. | 69 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft. | 0 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft. | 0 GPM |
| Flow Rate @ 6 Ft Of Head (maximum) | 69 GPM |
| Flow Rate @ 6 Ft. | 69 GPM |
| Flow Rate @ 9 Ft Of Head (maximum) | 69 GPM |
| Flow Rate @ 9 Ft. | 69 GPM |
| Full Load Current | 10.4/5-5.2A |
| Gasket Material | Viton |
| Gpm @ 1 Ft. Of Head | 69 GPM |
| Gpm Of Water @ 18 Ft. Of Head | 58 |
| Gpm Of Water @ 24 Ft. Of Head | 50 |
| Gpm Of Water @ 3 Ft. Of Head | 69 |
| Gpm Of Water @ 6 Ft. Of Head | 69 GPM |
| Gpm Of Water @ 9 Ft. Of Head | 69 |
| Height | 8.3" |
| Horsepower (maximum) | 3/4 hp |
| Housing Material | PVDF |
| Hp | 3/4 hp |
| Impeller | PVDF w/PTFE Bushing |
| Impeller Material | PVDF |
| Inlet Size | 1 1/2" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1 1/2" |
| Intake Pipe Type | FNPT |
| Length | 17.3" |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 14.2 psi |
| Max. Flow Rate @ 15 Ft. | 64 GPM |
| Max. Fluid Temp. | 220°F |
| Max. Head | 33 ft. |
| Max. Operating Pressure | 80 psi |
| Max. Outlet Pressure | 14.2 psi |
| Max. Specific Gravity | 1.8 |
| Max. Viscosity | 100 cPS |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Speed (maximum) | 3450 RPM |
| Motor Type | Induction |
| Mounting | Horizontal |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Operating Pressure | 14.2 psi |
| Operating Pressure (maximum) | 14.2 psi |
| Outlet Size | 1 1/2" |
| Outlet Type | MNPT |
| Overall Height | 8.3" |
| Overall Length | 17.3" |
| Overall Width | 7 1/2" |
| Phase | 1 |
| Priming | Manual |
| Product Datasheet | finish-thompson-db10p-m218.pdf |
| Rpm | 3450 RPM |
| Self Priming | Manual |
| Series | DB7 Series |
| Specific Gravity | 1.8 |
| Suction Port | 1 1/2" FNPT |
| Temp (f) @ 0 Psig | 220°F |
| Temp (f) @ 0 Psig | 220 |
| Temp (f) @ 10 Psig | 220°F |
| Temp (f) @ 10 Psig | 220 |
| Temp (f) @ 20 Psig | 220°F |
| Temp (f) @ 20 Psig | 220 |
| Temp (f) @ 30 Psig | 220°F |
| Type | Straight |
| Viscosity (maximum) | 100 cPS |
| Voltage | 115/208-230V AC |
| Warranty | 5 yrs. |
| Width | 7 1/2" |
Shipping Info:
| Ship weight (kg) | 20.03 |
| Ship height (cm) | 34.29 |
| Ship length (cm) | 56.9 |
| Ship width (cm) | 32.77 |
| HS code | 8413810040 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Hp | Voltage | Max. Outlet Pressure | Flow Rate @ 3 Ft. | Flow Rate @ 6 Ft. | Flow Rate @ 9 Ft. | Flow Rate @ 24 Ft. | Flow Rate @ 40 Ft. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DB5.5P-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €892.72 | |
|
DB5.5P-E-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €915.86 | |
|
DB5.5P-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €873.03 | |
|
DB5.5P-E-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €873.03 | |
 |
DB5.5V-T-M622 | 1/2 hp | 115V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €1,149.99 | |
|
DB5.5V-T-M617 | 1/2 hp | 230V AC | 12.6 psi | 30 GPM | 30 GPM | 28 GPM | 17 GPM | 0 GPM | €1,067.01 | |
 |
DB6P-M224 | 1/3 hp | 115/208-230V AC | 14.2 psi | 39 GPM | 39 GPM | 37 GPM | 23 GPM | 0 GPM | €1,371.44 |
